Painless Classic Customizable Chassis Harness - GM Keyed Column - 21 Circuits

Painless Classic Customizable Chassis Harness - GM Keyed Column - 10101
Painless Classic Customizable Chassis Harness - GM Keyed Column - 10101
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 152.2ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$284.99
Loading...
Loading...
Save for Later
Painless Classic Customizable Chassis Harness - GM Keyed Column - 10101
  • 90-Day Returns
  • Technical Support
Painless Classic Customizable Chassis Harness - GM Keyed Column - 21 Circuits

Description

This Painless Performance 21 circuit chassis harness is our most widely used customizable automotive wiring harness.

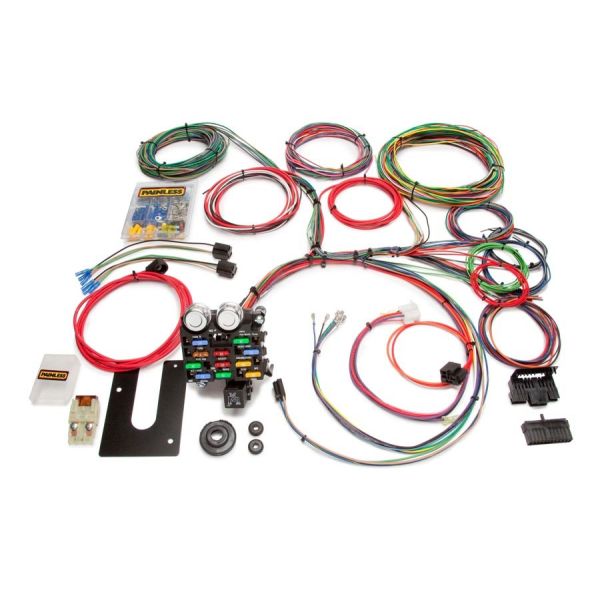

This universal kit is great for hot rod or street rod builds, but you'll find that it's easily adaptable to almost any vehicle and has enough length to handle full size and muscle cars. This kit comes with a pre-terminated GM column mounted ignition switch connector. Included with this harness are the following parts; a GM engineered fuse block & Painless mounting bracket; GM turn signal connectors; pre wired plugs for the headlights and dimmer switch; and each wire is printed with the circuit identification as well as using GM color codes for easy installation.

Wire your classic car once and wire it right with a Painless customizable wiring harness.

Specifications

Number of Circuits: 21 Circuit - 12 Fuses w/ Horn Relay and Maxi Fuse
Harness Length: Universal
Fuse Type: Blade
Firewall Pass through: Grommet
Color Code Based: GM
Circuit Designations: Printed on wire

Application

Part Number: 10101
Year: Universal
Make: Universal
Model: Universal
Engine: Carbureted or Any Stand Alone Fuel Injection
Trans.: Any

Connections Included:

GM Steering Column Turn Switch and Ignition Switch, Dimmer Switch, Two Headlight Pigtails, 10SI & 12 SI Alternator, HEI Power and Tach and 20 Extra 56 Series Terminals for use with any Factory GM 56 Series Connector such as Headlight Switch, Wiper Switch or A/C Switch/Blower Motor.

This harness includes circuits for:

1. A/C & Heat
2. Accessory / Cigarette Lighter
3. Backup Lights
4. Brake Lights
5. Charging
6. Dome Light
7. Electric Choke
8. Emergency Flashers
9. Fan Relay Activation Power
10. Fused Power Source
11. Headlights
12. Horn (Relay)
13. Ignition Coil
14. Instrument Panel Lighting and Gauges*
15. Park Lights
16. Radio/Clock (Constant and Switched)
17. Starting
18. Tail Lights
19. Third Brake Light
20. Turn Signals
21. Wipers

* Including Wires For:

Fuel Gauge
Oil Gauge
Tachometer
Temperature Gauge
Voltmeter

Warranty

1 Year Manufacturers Warranty

Shipping

Ships Via Fedex

Aerosol Details

N/A

Consumables

N/A

Safety Information

N/A

Spare Parts

N/A
