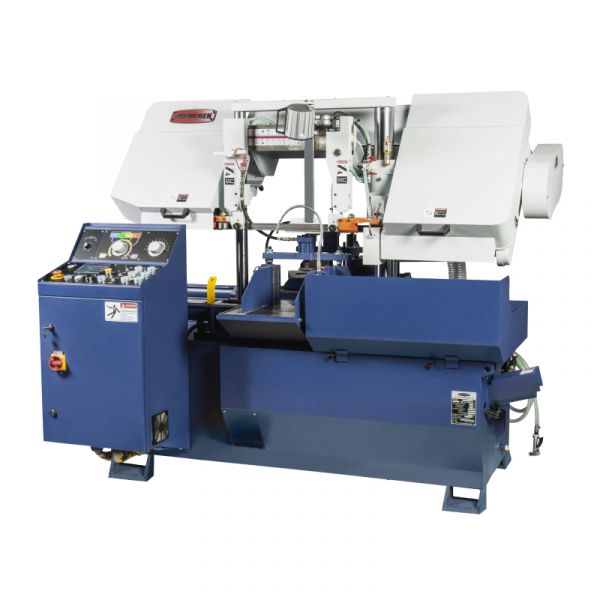

Palmgren 12In. Fully-Auto Dual Post Band Saw 9684498

12 IN. FULLY AUTOMATIC DUAL POST BAND SAW
12 IN. FULLY AUTOMATIC DUAL POST BAND SAW
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 92.75ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$45,000.00
Loading...
Loading...
Save for Later
12 IN. FULLY AUTOMATIC DUAL POST BAND SAW

Manufacturer Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • 90 Day Returns
  • • Lifetime Tech Support
Palmgren 12In. Fully-Auto Dual Post Band Saw 9684498

Product Overview:

Description

Heavy duty cast iron and steel construction provides superior stiffness and vibration dampening. Advanced powertrain utilizes a precision gearbox with bronze worm gear and hardened and ground worm shaft, taper roller bearings operating in an oil bath delivering smooth, quiet positive SFPM to the blade. Cast iron idler and drive wheels. Fully automatic on demand hydraulic controls for the saw head, shuttle vise and split-jaw clamping vise. Three point clamping vise. Shuttle vise has a two-sided hydraulic system that allows it to clamp and feed irregular pieces without binding. Adjustable clamping pressure. Approach sensor reduces operation cycle time by allowing the saw head to approach the workpiece rapidly then slow to the chosen cutting rate just before the blade touches the workpiece. Hydraulic blade tension control provides for faster blade changes and ensures proper blade tension. Automatic shut off safety system that senses a broken or loose blade stopping the machine. Roller table with vertical & horizontal rollers that facilitates the holding and support of longer material allowing it to glide smoothly during the workpiece feeding process. Latest technology electronic variable speed inverter control provides a broad range of blade speeds designed to fit any sawing application. Control panel with monochrome touch screen is easy to program and operate and is conveniently located for easy accessibility and operator safety. Auto shut off at end of material or after preset number of cuts. Safety electrical panel with main disconnect, overload protection and low voltage at the switches Flood coolant system with the coolant fed through the blade guides to maximize cooling and cleaning of chips from the blade. Blade brush to aid in the removal of chips from the blade. Adjustable ball bearing and tungsten carbide blade guides provide maximum support of the blade and ensure square accurate cuts. Chip conveyor automatically starts during the cutting cycle to efficiently remove and separate the chips from the coolant for convenient clean up and maintenance. Halogen work light

Specifications

Blade Length 180 in.
Blade Width 1-1/4in.
Bundle Cutting (W X H) 6.3in. x 2in. - 11in. x 5.9in.
Capacity 13in. x 13in.
Cold Saw And Band Saw Saw Type Fully-Automatic
Coolant Motor 1/8 HP
Coolant Tank Capacity 23.8 Gal
Country Of Origin TW
Cutting Capacity 0.39in. x 0.39in.
Hydraulic Motor 2 HP
Manual Horiz. Band Saw Type Miter with vise
Net Weight 4730
Overall Dimensions (LxWxH) 86.6in. x 94.5in. x 70.9in.
Sawing Type Horizontal Band Saws
Table Height 31.5in.
Warranty 3 Year
UPC 726896844985
Unit Of Measure Each
Product Weight (Lbs) 5170

In the Box

Guides & Accessories
