Item # 72430 BRAND: Palmgren

Palmgren Arbor Press 2 Ton 9661201

Brand: Palmgren
In stock
SKU
72430
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 15.73ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$431.99
Loading...
Loading...
Save for Later
ARBOR PRESS, 2 TON, PART NO 9661201
  • Manufacturer Warranty Included
  • 90 Day Returns + 100% Satisfaction Guarantee
  • FREE Lifetime Tech Support

QUESTIONS? Talk to an Expert:
Phone Icon  800-343-9353   |     Chat   |     Email Us

QUESTIONS? Talk to an Expert:  Phone Icon  800-343-9353   |     Chat   |     Email Us

Description

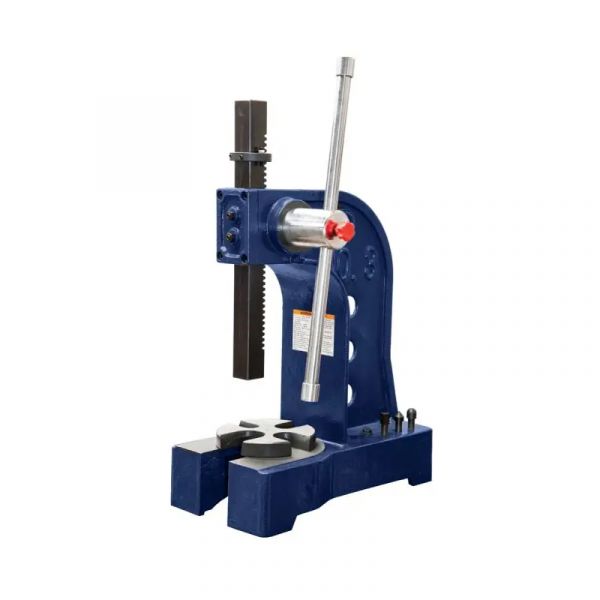

Palmgren 2 Ton Arbor Press delivers the heavy force needed for riveting, squeezing, punching, bending, and other pressing applications. Removable machined steel anvil provides ample work support with different slot positions. Depth stop securely clamps to the ram and withstands full pressure. A lockable fine adjustment adjusting screw accurately limits the depth of the ram stroke. Punches or tool may be added to the end of the ram with the aid of a magnetic insert. The ram is reversible with one end solid and the other with a hole and magnet to hold bits and tools.

  • Includes three piece bit set - 1 pointed, 1 round, and 1 square end bit, and a removable steel anvil
  • Sturdy, cast-iron construction
  • For all production and assembly applications
  • Base drilled for mounting on a bench or pedestal
  • Rugged steel ram is driven by a machined pinion
  • The base is machined to hold the three bit set
specifications_ax
Anvil Diameter 6-5/8 in.
Base Dimension 7-7/8 in. x 16 in.
Country Of Origin CN
Diameter Of Work (Inches) 10.375
Lever Ratio 19.0:1
Max. Work Height 6-5/8 in.
Ram Dimensions 1-1/4 in. x 1-1/4 in.
Model Number AP20
Pressure (Tons) 2
Press Type Arbor Presses
Ram Hole Dia. 1/2 in.
Swing 10-3/8 in.
Warranty Limited Lifetime
UPC 726896612010
Unit Of Measure Each
Product Height (In) 12
Product Length (In) 19
Product Width (In) 19
Product Weight (Lbs) 70
*Note: Specifications are approximate and subject to change.
