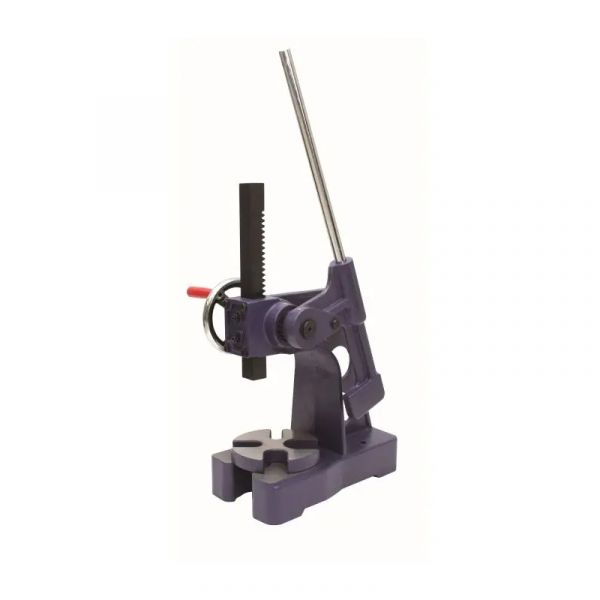

Palmgren Ratcheting Arbor Press 1.5 Ton 9661104
RATCHETING ARBOR PRESS, 1.5 TON
RATCHETING ARBOR PRESS, 1.5 TON
RATCHETING ARBOR PRESS, 1.5 TON
Manufacturer Warranty Included
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description
The arm provides optimal leverage position with consistent application of force. In addition, it has more clearance over the table for broaching or pressing large items. It is counterweighted for rapid handle return. Removable machined steel anvil has four slot positions. A lockable adjusting screw accurately limits the depth of the ram stroke. The steel ram is reversible with one end solid and the other end with a hole and magnet to hold bits and tools.
- Sturdy, cast-iron construction
- Rugged steel ram is driven by a machined pinion
- Base is pre-drilled for mounting on a bench or pedestal
- Includes three piece bit set - 1 pointed, 1 round and 1 square end bit, and a removable steel anvil
- The base is machine to hold the three bit set
Specifications
| Anvil Diameter | 6-5/8 in. |
|---|---|
| Base Dimension | 7-1/2 in. x 14-1/2 in. |
| Country Of Origin | CN |
| Lever Ratio | 18.5:1 |
| Max. Work Height | 6-5/8 in. |
| Ram Dimensions | 1-1/4 in. x 1-1/4 in. |
| Model Number | RP15 |
| Pressure (Tons) | 1-1/2 |
| Press Type | Arbor Presses |
| Ram Hole Dia. | 1/2 in. |
| Swing | 10-3/8 in. |
| Warranty | Limited Lifetime |
| Working Height (Inch) | 6-5/8 in. |
| UPC | 726896611044 |
| Unit Of Measure | Each |
| Product Height (In) | 15-1/4 in. |
| Product Length (In) | 17.7 |
| Product Width (In) | 15.5 |
| Product Weight (Lbs) | 60 |
