Item # 30023 BRAND: Woodward Fab

Woodward Fab Planishing Hammer with Stand

For smoothing and shaping metal... includes stand, foot pedal
For smoothing and shaping metal... includes stand, foot pedal
Woodward Fab Planishing Hammer with Stand is rated 3.0 out of 5 by 2.
  • y_2023, m_11, d_30, h_7
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.37
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_1
  • loc_en_US, sid_30023, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 11.4ms
  • REVIEWS, PRODUCT
$369.99
Loading...
Loading...
Save for Later
For smoothing and shaping metal... includes stand, foot pedal

Add an Eastwood Service Plan for additional protection?

Learn More

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support

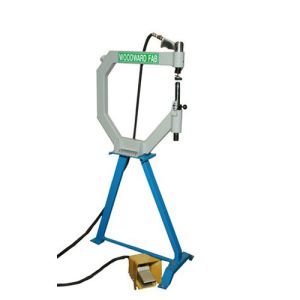

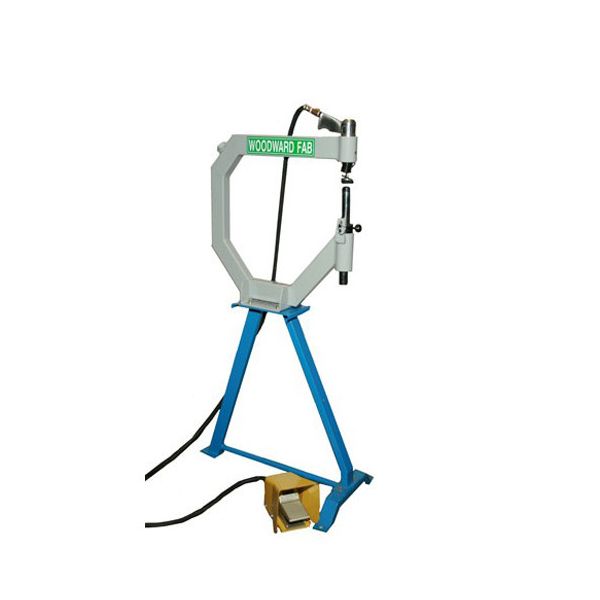

Woodward Fab Planishing Hammer with Stand
main product photo
Frequently Bought Together

Price for all checked items:

Product Overview:

Description

This planishing hammer includes everything you need to start smoothing and shaping metal.

  • 19.625 inch throat depth
  • 4 CFM Air Motor
  • Quick Adjust height / pressure, and a foot pedal

Included is the planishing hammer, floor stand, 1 inch Anvil, 2 inch Anvil, 3 inch Anvil, air motor, and a foot pedal. Requires 4 CFM of air at 50 to 100 PSI.

Warranty

Imported.

FAQs

16 Gauge Steel Max.

In the Box

Contents

19.625 Inch Throat Depth, 4 CFM Air Motor at 50to100 PSI, 1 Inch Anvil, 2 Inch Anvil, 3 Inch Anvil, Foot Pedal, Floor Stand.

Guides & Accessories

Safety Information

Always wear ANSI rated safety glasses and hand protection when operating.

Reviews

Rated 3 out of 5 by from Would not recommend. Ok I guess. Very small, light duty. Hose end I believe is a type t, not the normal industrial plug (type d) so if you have regular shop fittings you will need to change it out. And, it is a barbed type fitting. Foot pedal is cheap plastic. I wish I would have spent more on a larger, heavier duty hammer. Also it only produces about 1350 BPM.
Date published: 2021-11-16
  • y_2023, m_11, d_30, h_7
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.37
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_1
  • loc_en_US, sid_30023, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 4.67ms
  • REVIEWS, PRODUCT

Questions & Answers

What is the thickest guage and do you ship to Canada?

Asked by: Dave
This Planishing Hammer(30023) will handle up to 16 gauge or .0625" thick mild steel. Please contact Eastwood customer Service department at 1-800-343-9353 for shipping details.
Answered by: vince
Date published: 2021-02-17

What is the ,shank size,of the lower dies for this planishing hammer?(to see if the ones on e-bay would fit it)

Asked by: Shane
The shank size in reference is 3/4".
Answered by: Kelly H
Date published: 2020-03-02

How loud is this planishing hammer in decibels

Asked by: Jason
This will be over 100 DB but will vary based on installation location. Hearing protection is Required.
Answered by: Kelly H
Date published: 2019-10-08

You give the beats per minute of the other model planishing hammer but not for this one. What is the speed range, please? Thanks, Sandy

Asked by: SandyatAyrshire
This machine operates in a range of 875 - 1350 beats per minute.
Answered by: Kelly H
Date published: 2019-10-08

Do you sell the anvils separately? If so, what are the prices?

Asked by: the renaissance man
Unfortunately, we do not sell any additional items for this planishing hammer. We would have to advise you to contact Woodward Fab directly.
Answered by: KHoffnagle
Date published: 2019-10-08

What is the shank size of the planishing hammer ?

Asked by: cobus
The shank size of this planishing hammer is 3/4".
Answered by: KHoffnagle
Date published: 2019-10-08

the tools that are included with the hammer are the only ones that exist or there is more to expand the kit?

Asked by: TKing1
The tools that come with this kit are all that we have available.
Answered by: S Church
Date published: 2019-10-08
