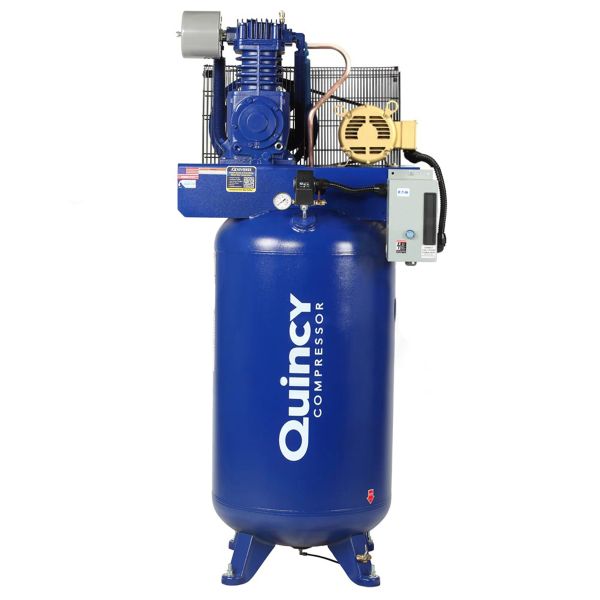

Quincy 5 HP 80 Gallon Two Stage Air Compressor 253DS80VCB20
QT Pro 5-HP 80-Gallon Two-Stage Air Compressor (208V 3-Phase)
QT Pro 5-HP 80-Gallon Two-Stage Air Compressor (208V 3-Phase)
QT Pro 5-HP 80-Gallon Two-Stage Air Compressor (208V 3-Phase)
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Product Overview:
Description
100% Duty Cycle Splash Lubricated Two-Stage Air Compressor
- Engineered for efficiency and lower operating costs
- Produces more compressed air at a lower horsepower
- American Pride; Proudly built in U.S.A.
High Performance Cast Iron Belt Drive Pump
- Industry-leading 50,000+ hour pump life
- Aluminum head for strength and optimum heat dissipation
- Stainless-steel, corrosion resistant reed valves with controlled lift for maximum efficiency
2-Cylinder Cast-Iron Design
- Cast-iron cylinders maintain rigid tolerances for high efficiency
- Industrial-class bearings ensure extended piston life
- Graphite cylinder and head gaskets for positive sealing and improved performance
Large Balanced Cast Iron Fly Wheel
- Smoother operation, angled for maximum cooling
- Offers better energy efficiency and durability
- Balanced counter-weighted crankshaft assures smooth, trouble-free operation
High-Efficiency Finned Tube Intercooler
- Provides maximum cooling & increased valve life
- Eliminates carbon build up in the head and increases valve life
- 2-piece connecting rods for less moving parts & minimized downtime
Heavy-Duty Industrial Motor
- Capacitor start motor with built-in thermal overload
- Runs at a slower RPM, runs cooler and cost less to operate
- UL & CSA approval on all electrical components
Specifications
Motor | |
Voltage: | 208 Volt AC |
Phase: | 3-Phase |
Magnetic Starter: | Yes |
Amp Draw: | 17.5 |
Recommended Breaker: | Consult Certified Electrician |
Engine | |
HP: | 5 |
Pump | |
CFM: | 17.2 |
CFM Rated @: | 175 PSI |
Pump Material: | Cast Iron w/ Aluminum Head |
Max PSI: | 175 PSI |
Oil Sight Glass: | Yes |
Pump Type: | Two-Stage |
After Cooler: | No |
Pump Drive: | Belt Drive |
Oil Type: | Oil Lubricated |
Oil System: | Splash Lubricated |
Pump Low Oil Shut-off: | No |
Tank | |
Tank Size: | 80 Gallons |
Tank Outlet: | 3/4 Inch |
Electronic Drain Valve: | No |
Tank Orientation: | Vertical |
Accessories | |
Air Dryer: | No |
Overview | |
Weight: | 680 Pounds |
Certification: | ASME. UL, CSA |
Product Length: | 37 Inches |
Product Width: | 24 Inches |
Product Height: | 74 Inches |
Power Type: | Electric |
