Rockwood 1/2” NPT Air Filter Regulator System

90 day Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support

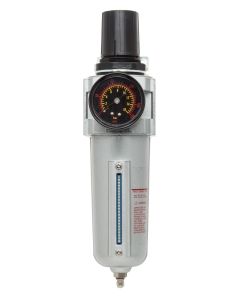

Rockwood® 1/2 InchNPT Air Filter Regulator System

Product Overview:

Description

The Rockwood 1/2” NPT Air Filter/Regulator includes a high-capacity, drainable Coalescing Filter and Bowl to trap moisture and other impurities from a compressed air supply. The Regulator features a 0 to 230 PSI Gauge. Also included is an integral mounting bracket for secure mounting.

Warranty

90 Day

Specifications

• 1/2” FNPT Inlet
• 1/2” FNPT Outlet
• Maximum Input Pressure: 250 PSI
• Maximum Output Pressure: 225 PSI
• Maximum 140°F (60°C) service temperature
• Flow Rate: 140 CFM
• Filters Down to 5 Microns
• Aluminum Housing and Bowl

In the Box

Contents

(1) 1/2” FNPT integral Filter/Regulator with Drain Valve
(1) Mounting Bracket
(1) Pressure Gauge

Guides & Accessories

Instructions

Click here for product instructions

Safety Information

Read Instructions thoroughly read and understand these product instructions before using this equipment. Failure to follow all warnings can result in tool damage or serious physical injury. Keep instructions for future reference.

Accessories

Rockwood 1/2 in. Npt Air Filter Regulators Pressure Regulator With Condensate Discharge Filter And Pressure Gauge Connections

Reviews

Rated 5 out of 5 by from Solid regulator and filter Excellent filter and regulator, plenty of flow for our tools. The only bad point i have is the black gauge is hard to read.
Date published: 2021-07-28
Rated 4 out of 5 by from Good regulator, bad guage. The regulator is high quality for the money. I had to replace the gauge because it was so dark you could not read it. They need to fix that.
Date published: 2022-05-18
Rated 4 out of 5 by from Seem's to be made well Only been using it for about a week since getting it. the only real problem is the pressure dial. its very hard to read because of the color. its amazing how something so well made would use a dial you can't read.
Date published: 2018-10-20
Rated 4 out of 5 by from Works! As mentioned the face dial is hard to see, but works great otherwise. I bought it for it's 250 psi rating. Better quality then the previous one that was only rated at 150 and didn't hold up.
Date published: 2018-08-31
Rated 4 out of 5 by from Does the Job I bought this unit to install at the tank outlet on my new Ingersoll-Rand 80 gallon air compressor. I like everything about it except for the red face dial that is hard to see without a light source. The pressure control works smoothly and overall I am well satisfied with it.
Date published: 2018-03-16
  • y_2023, m_1, d_26, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_5
  • loc_en_US, sid_31734, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 36.62ms
  • REVIEWS, PRODUCT

Questions & Answers

Is this regulator reversible? Can I have one flow in to out from right to left, and another flow from in to out from left to right, and have both of the gauges facing the same direction? I want to plumb two regulators with the inlets off of a T fitting

Asked by: DT1179
You can simply turn the cup 180 degrees, and unscrew the gauge block and black block and switch them. Careful not to lose o rings on blocks.
Answered by: Donovan
Date published: 2022-08-02

Where is this Regulator/Filter made ?

Asked by: Mustangman
This item is made overseas in Taiwan.
Answered by: Kelly H
Date published: 2019-07-09
