Rockwood® 3/8 InchNPT 2 Stage Air Filter Dryer System
Rockwood 3/8” NPT 2 Stage Air Filter Dryer System
Rockwood 3/8” NPT 2 Stage Air Filter Dryer System
Rockwood® Connecting Bracket For 3/8 Inch NPT Filter is rated
out of
5 by
15.
Rockwood 3/8” NPT 2 Stage Air Filter Dryer System
90 day Warranty Included
Add an Eastwood Service Plan for additional protection?
Learn More
The Eastwood Service Plan
Protect your purchase with comprehensive coverage
24/7 support
No deductibles, no additional fees
Parts & labor costs included
Transferable coverage and more
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description

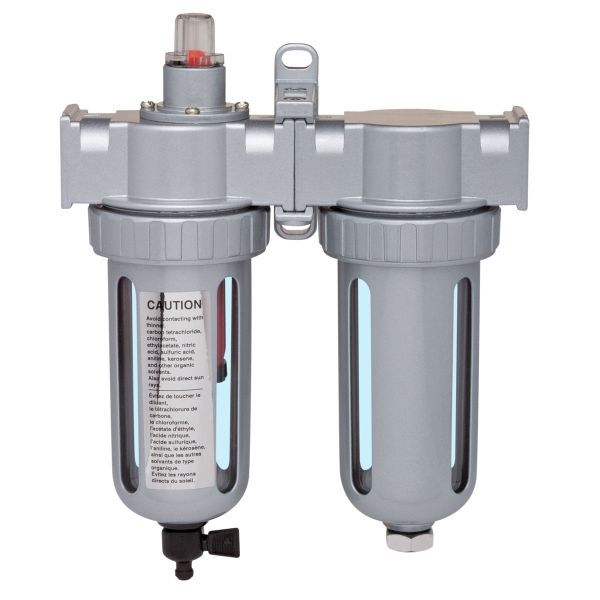

Make sure your shop projects are powered by clean, dry air with this air compressor air filter designed for painting and powder coating. The Rockwood 3/8” NPT Air Filter/Dryer includes a high-capacity, drainable coalescing filter and bowl to trap moisture and other impurities from a compressed air supply. It filters down to 0.01 micron particles so air will be practically contaminant-free. The dryer section contains a replenish-able pellet-type of moisture-absorbing desiccant — two bags are included to get you started. There’s also an integral mounting bracket for secure mounting.
- Coalescing filter designed to remove oil, water, and particulates from air system
- Desiccant drier removes water vapor providing dry air to your system
- Wall Mountable
- Filters down to 0.01 Micron
High-quality air has a big effect on both results of a coating project and the lifespan of the tools used. A Rockwood air compressor filter/dryer for 3/8-inch inlets ensures your air management system will Do the Job Right. It can handle air pressures up to 150 PSI with a flow rate of 10.5-CFM for your toughest tasks. Visit the Eastwood Garage to learn more about this and other ways to keep compressed air clean in the shop.
Warranty
Specifications
| Air Inlet: | 3/8" FNPT |
| Air Outlet: | 3/8" FNPT |
| Service Pressure: | Maximum 150 PSI (10.4 bar) |
| Service Temperature: | Maximum 125°F (52°C) |
| Flow Rate: | 10.5 CFM |
| Minimum Operating Air Pressure: | 20 PSI |
In the Box
Contents
- (1) 3/8” FNPT inlet Coalescing Filter with Drain Valve
- (1) 3/8” FNPT outlet Dryer
- (2) 2 Bags of Desiccant
- (1) Integral Mounting Bracket
Guides & Accessories
Instructions
Safety Information
Read instructions thoroughly read and understand these product instructions before using this equipment. Failure to follow all warnings can result in tool damage or serious physical injury. Keep these product instructions for future reference.
Accessories
Application Tips
Desiccant Drier Removes Water Vapor Providing Dry Air To Your System
Reviews
Rated 5 out of
5
by
Phils2888 from
Easy to Install & Service.
Easy to install. I installed this in conjunction with the Rapid Air Master Kit. I now have dry air thanks to this filter system. Easy to bleed and easy to clean or change.
Date published: 2023-01-12
Rated 5 out of
5
by
John Abel from
Two-stage air filter and dryer for paint guns
This filtering system works exactly as they said it would the air is extremely clean dry as it comes through for the paint guns
Date published: 2022-10-28
Rated 5 out of
5
by
Noobie from
DIY garage spray and worked well
Works as advertised. Turned desiccant from blue to pink in one car. You get one extra bag included.
Date published: 2022-08-01
Rated 5 out of
5
by
Carla from
Rockwood filter dryer for auto painting
Kept every drop of water and oil out of my truck paint. Easy to refill, too. Worth the money.
Date published: 2022-06-02
Rated 5 out of
5
by
Bran from
Great product
Easily installed just make sure to have a couple extra fittings. I made mine so I can attach and un-attach as needed for when I’m spraying. That way it’s not always being used.
Date published: 2022-03-16
Rated 5 out of
5
by
Nick from
A must if you have moisture problems
So far haven’t had any moisture problems coming out of my house
Date published: 2021-10-09
Rated 5 out of
5
by
Master Machinist from
2 months running fine to me?
I don't know what this guy bought below me, but I mounted it fine. Decant went in fine about 1/4 in the cup, I think I used? Plus a paper towel and a microwave means you basically have a lifetime supply of decant. Also I know the threads on both containers are machined fine because I have done this a few times in two months with scrutiny. But you don't need to be Hercules or John Henry to do it. And don't mount it like John Wayne either. Well the filter traps debris like it should. I don't know about the .01 micron, but it paints, clear coat, metal flake , any primer, latex, any base coat, I've all ready used. Plus it runs a 20 ton press, and a Woodward fab tube bender fine as well? I haven't tried the rivet gun or paint shaker, but they take even less than the rest, so I am sure it will be fine. I just blow off the filter cartridge sometimes but it's still far from dirty or discolored yet. The water drain is fine too? It usually evaporates before I can empty because I have other drainage under the compressor and a 50 foot line before it connects. On the petcock valve, it only goes a qtr.to work. So don't be a Gilligan and spin it like a pin wheel, and it should last a long time. turn it a qtr. turn like a acetylene tank. Don't abuse it and its fine. I don't know why this bad review below But it's only been a little over two months for me.Maybe he just got a bad one banged around in shipping? But mine came to Ohio fine? Also harbor freight sells 400, O rings for 2 dollars if it's all that pal? So I'm satisfied enough to buy another when they go back on sale. (Hint Hint Eastwood).
Date published: 2019-01-11
Rated 4 out of
5
by
Jeff Foreman from
Looking forward to dry, clean air!
I have installed it and my 4-star rating is based on the ease of installation and appearance of quality. I look forward to using it to do light bodywork and painting.
Date published: 2023-02-15
Questions & Answers
Can the dessicant be dried and be reused? I understand some can (200 degrees for 30 minutes).
https://www.eastwood.com/images/pdf/31726Q_inst.pdf
Date published: 2023-09-06
Given that this has a flow rate of 10.5 CFM, will this be adequate to run the Concours 2 spray gun, rated at 5-9 CFM?
YES
Date published: 2023-05-10
After I installed this on the air compressor I started to get a air leak at the mounting bracket joint. I took it apart and tried to reset the o ring. Didn't help fix the leak.... Not sure what more I can do.
Please submit a ticket here for warranty service: https://eastwood.kustomer.help/contact/eastwood-contact-form-SkGzHV2QP
Date published: 2022-07-19
Can the positions of the filter and drier be reversed to simplify the plumbing?
Yes they can be swapped around.
Date published: 2022-07-19
Can someone please proved the dimension of the above item? I am wanting to use this production on my air suspension system, and am limited on space so want to make sure this item will fit, before i order a set or two. Thanks!
The overall dimensions of this unit are approximately 6.29" W x 2.75" D x 7.98" H.
Date published: 2022-06-22
I just picked up a b100 sand blasting cabinet for a up grade, what air dryer can I pick up to help Is separate water from the air. Extensive use. Prep for powder coating rims.
This drier system will be able to filter down to 0.01 micron particles so air will be practically contaminant-free.
Date published: 2021-08-19
Is this air dryer sufficient for the Eastwood Versa 40 plasma cutter?
This would be perfect for the plasma 40.
Date published: 2021-06-12
I recently bought this 3/8" filter/dryer and none of my 3/8" npt hoses will fit. Could I possibly have been given a 1/2" filter/dryer by mistake? The box and instructions both say it's 3/8".
The threads on the inlet and outlet should be 3/8" FNPT. If they are not please contact Customer Solutions.
Date published: 2020-07-23
