Product Overview:

Description

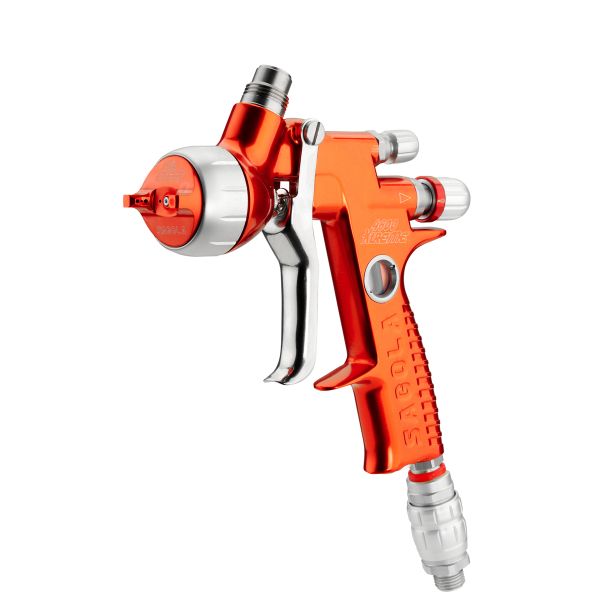

The Sagola 4600 Xtreme is small, lightweight and comfortable, offering fast and smooth application for a consistent high quality finish for the bodyshop professional.

With high product transfer efficiency giving better coverage saving paint and time, the Sagola 4600 Xtreme DVR Aircaps offers one of the highest performances in their category.

The Sagola 4600 Xtreme is available to purchase as a complete kit with the aircap, needle and nozzle specified, supplied and fitted.

Alternatively, as the spray gun is universal and can be used with any of the aircaps in the DVR range.

This Sagola 4600 Xtreme Digital (psi) Gravity Spray Gun is supplied with a 1.30mm Needle and Nozzle size and a DVR CLEAR High Transfer Efficiency (HTE) Aircap which enables extremely fast application.

  • Needle and Nozzle Size: 1.30 (1.30mm)
  • DVR Aircap Type: CLEAR
  • Measurement Units: psi
  • Part Number : PG10142243

Specifications

Model: Sagola 4600 Xtreme Digital
Cup Capacity: 650ml (22fl oz)
Cup Type: Removable Anti-Drip System
Air Inlet Couplings: 6.35mm (1/4") Male BSP
Paint Filter: 80 mesh
Needle & Nozzle Size: 1.30 (1.30mm)
DVR Aircap Type: CLEAR
Weight with Supplied Cup: 706g (1.56lbs)
Weight without Cup: 518g (1.14lbs)
Dimensions without Cup (W x D x H): 161.77 x 19 x 187.23mm (6.37 x 0.75 x 7.37")
Sound Pressure Level (Average): 80 dB
Pressure Gauge Battery Type: CR-1/3N Li-Mn 3v
Pressure Gauge Range: 0 - 10bar (0 - 140psi)
Pressure Gauge Accuracy: ±0.16bar (±1.6psi)
Compliance: ATEX II 2GX, SQMDA 1151-1136 CALIFORNIA

In the Box

Contents

  • 1. Aircap, needle & nozzle kit (supplied fitted)
  • 2. 650ml (22fl oz) Reusable plastic gravity cup with product mini-filter
  • 3. Wrench for removing and fitting the nozzle and all servicing needs
  • 4. Colour code identifiers perfect for identifying guns when there are multiple painters (x3)
  • 5. Cleaning brush
  • 6. Key Assembly for changing the air valve

Guides & Accessories

Consumables

  • 64745 - RC1 Air Flow Regulator with Analogue Pressure Gauge PT56418020
  • 64754 - Spray Gun Cleaning Kit PT40000086
  • 64742 - Sagola 4600 Xtreme Titania PT56418627
  • 64741 - Sagola 4600 Xtreme Clear PT56418630
  • 64740 - Sagola 4600 Xtreme Aqua PT56418629
