Item # 64765 BRAND: Sagola

Sagola 5300X Plus Air Regulator Filter - 3 Stage; US-Mil PT10730306

5300X Plus Air Regulator Filter - 3 Stage Filter; US-MIL Couplings
5300X Plus Air Regulator Filter - 3 Stage Filter; US-MIL Couplings
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 38.45ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$1,933.00
Loading...
Loading...
Save for Later
5300X Plus Air Regulator Filter - 3 Stage Filter; US-MIL Couplings

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Sagola 5300X Plus Air Regulator Filter - 3 Stage; US-Mil PT10730306

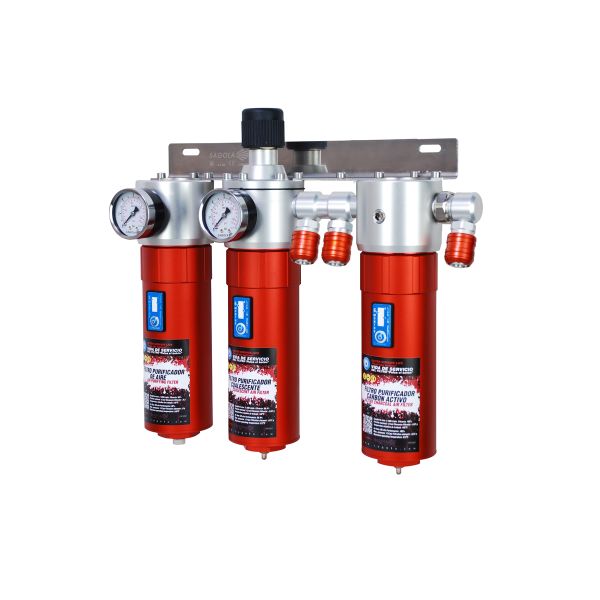

main product photo
Frequently Bought Together

Price for all checked items:

Product Overview:

Description

  • 3 Stage Plus Regulator Filter with a double outlet after the coalescent filter and final single outlet
  • Similar technical and mechanical characteristics to the 5300X
  • The Sagola 5300X Plus offers the maximum filtration level in spray booths and spraying lines with high quality air demand. Ideal for waterborne paint and where organic fumes in the network are a problem
  • Sinterised brass 8 micron pre-filtration is incorporated, followed by a 0.01 micron coalescent filter and final filtration by a wide surface active carbon filter. In addition to water and impurities, this process eliminates organic fumes and foul air
  • 3 Year warranty and minimal maintenance
  • Tough heavy duty construction for long service life

Specifications

Air Flow (at 7bar): 2870LPM (101CFM)
Air Inlet: 12.7 mm (1/2") BSP
Air Outlet: 6.35 mm (1/4") BSP
Max. Working Pressure: 12bar (174 psi)
Max. Operating Temperature: 90°C (194°F)
Drain System: Automatic & Semi-Automatic
Connection Type: US-MIL
Filter Type: Stage Three
Dimensions: 377 x 119 x 372mm (14.84 x 4.69 x 14.65")
Weight: 6.8kg (14.99lbs)

In the Box

Contents

  • Sagola 5300X Plus Air Regulator Filter - 3 Stage containing Brass Filter (8?m), Coalescent Filter (0.01?m) and Active Carbon Filter all with Integrated "Life" Timer
  • Male BSPT 6.35mm (1/4") Coupling (x3)*
  • Analogue Pressure Gauge (x2)
  • Support Bracket

Guides & Accessories

Instructions

Click here for product instructions
