SHIELD #850 and #851 are formulated with the highest quality resins to provide superior performance and enhanced gloss, plus SHIELD is infused with Kevlar pulp for unmatched strength and durability.

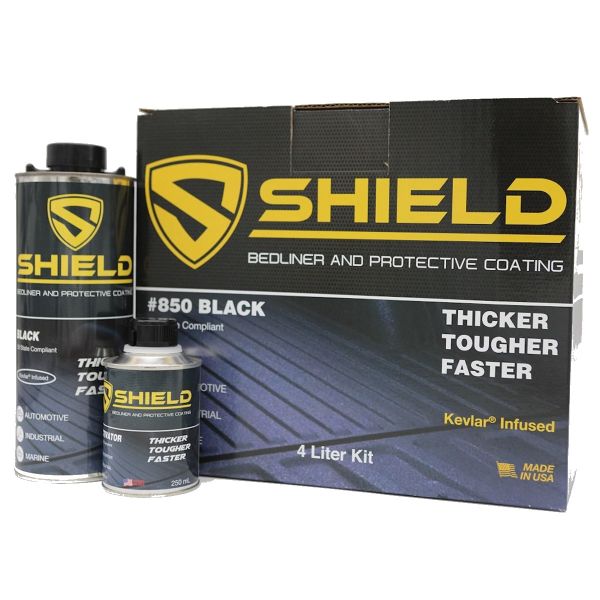

TCI Products SHIELD Bed Liner 4 Liter Kits

SHIELD is a 2K Protective Urethane Coating that provides surfaces with a protective barrier and is ideal for use in many industries: Auto, Marine, Recreation, Industrial, and Agriculture. Wherever you need a tough and durable coating, think SHIELD!

SIELD Kits Use A #200E Spray Gun w/ Disposable Tips #BLT201E

ONE KIT INCLUDES:

• (4) 750ml Bed liner
• (4) 250ml Activator
• 1 Kit Covers 130 ft

SURFACE PREPARATION:

• Remove all loose material and rust from surface to be coated
• Surface needs to be thoroughly cleaned with soap and water and/or degreaser
• Sand surface with 120-180 grit or nylon cup brush
• Re-clean surface with Wax & Grease Remover, dry with clean towel
• Bare metal, aluminum and galvanized areas need to be primed with 1K Etch Primer or Epoxy Primer
• Use adhesion promoter on fiberglass and plastic

APPLICATION:

1. SIELD Uses A #200E Spray Gun w/ Disposable Tips #BLT201E
2. MIX activator into bedliner container
3. SHAKE vigorously for 3 minutes
4. SPRAY at 30-65 PSI after attaching Schutz gun

Different textures can be achieved by varying distance and air pressure. Always spray test a test panel first to achieve desired results.

SUBSTRATES:

SHIELD can be safely applied to many surfaces including:

• STEEL
• CURED CONCRETE
• ALUMINUM
• FILLER/PUTTY
• WOOD
• SMC
• EPOXY PRIMER
• FIBERGLASS
• OEM PAINT

DRYING TIME:

• 3-5 hours when air dried or 30 minutes when force dried at 120ºF

TCI recommend applying two coats of SHIELD. No more than three coats should be applied. 1 Coat: 9 mil 2 Coats: 15 mil 3 Coats: 20 mil These are estimates and are dependent on the application method
