Item # 62296 BRAND: Stewart Warner

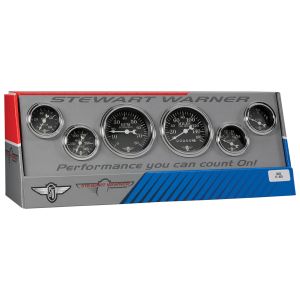

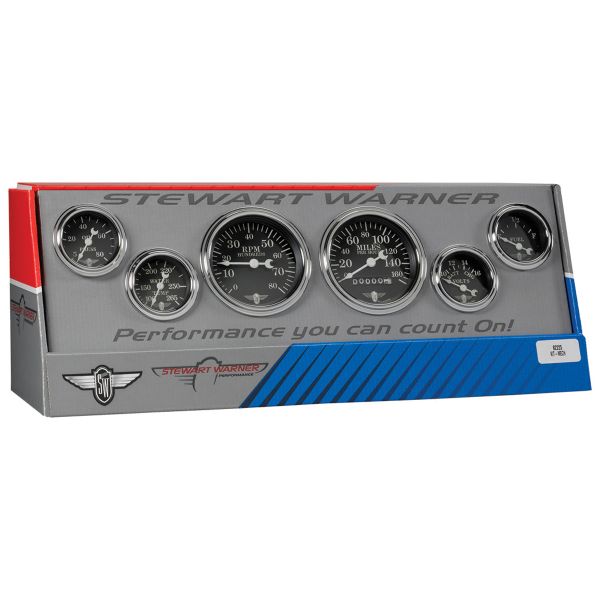

Stewart Warner Classic Wings Kit Mechanical 82225

Wings 6-Gauge Kit
Wings 6-Gauge Kit
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 27.49ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$513.99
Loading...
Loading...
Save for Later
Wings 6-Gauge Kit

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
Stewart Warner Classic Wings Kit Mechanical 82225

Product Overview:

Description

The Stewart Warner Wings-Series features nostalgic 1940's inspired English-scale graphic dials with teardrop pointers. Flashy chrome bezels and convex glass lenses pair perfectly with street rods and vintage cars and trucks. They are available with a white-on-black or black-on-white gauge face and in both mechanical or electrical versions.

  • Distinctive SW Wings logo
  • Teardrop-style pointer with a crescent moon tail
  • Convex glass lens
  • Superior night-time illumination
  • Overvoltage and reverse polarity protection
  • Corrosion-resistant and dust-proof housing
  • SAE and ISO-standards compliant
  • Operating temperature: -40 degree F (-40 C) to + 185 degree F (85 C)
  • Speedometer Gauge:
    • Mechanical
    • Size: 3-3/8 in. (86 mm) Diameter
    • 0-160 MPH
    • Full sweep
    • Analog odometer
    • Uses existing mechanical connection to the transmission
  • Tachometer Gauge:
    • Electrical
    • Size: 3-3/8 in. (86 mm) Diameter
    • 0-8,000 RPM
    • Full sweep
    • Works with 4, 6, and 8-cylinder engines
    • Uses existing connection
  • Oil Pressure Gauge:
    • Mechanical
    • Size: 2-1/16 in. (52 mm) Diameter
    • 0-80 PSI
    • Short sweep
    • 72 in. capillary tube
  • Water Temperature Gauge:
    • Mechanical
    • Size: 2-1/16 in. (52 mm) Diameter
    • 100-240 degree F
    • Short sweep
    • 72 in. capillary tube
  • Fuel Level Gauge:
    • Electrical
    • Size: 2-1/16 in. (52 mm) Diameter
    • E-1/2-F scale
    • Short sweep
    • 240-33.500 Ohms range
  • Voltmeter Gauge:
    • Electrical
    • Size: 2-1/16 in. (52 mm) Diameter
    • 10-16 V DC
    • Short sweep
    • Uses existing connection

Specifications

Gauge Bezel/Face Finish: Black
Gauge Line: Wings
Gauge/Item Name: Gauge Set
Gauge/Item Type: Mechanical Gauge
Type Description: Wings
Scale: Speedometer - 0-160 MPH; Tachometer - 0-8,000 RPM; Oil Pressure - 0-80 PSI; Water Temp - 100-240 °F; Fuel Level - E-1/2-F; Voltmeter - 10-16 VDC
Diameter, in: Tach/Speedo - 3-3/8; Gauges - 2-1/16"
Prop 65 Yes/No: Yes
Ohms: 240-33.5
Volt/Watt/Current: 12 V
Notes: Mechanical speedometer.Gauge kit includes gauge mounting hardware.12V or 24V light kits are sold separately. These are available for 5/8" and 1/2" light holes, in single-wire (grounds to gauge case) or two-wire (when ground cannot be made via gauge case) configurations. Please see Accessories section for available light kits, panel kits, and other options.
