BRAND: Stewart Warner

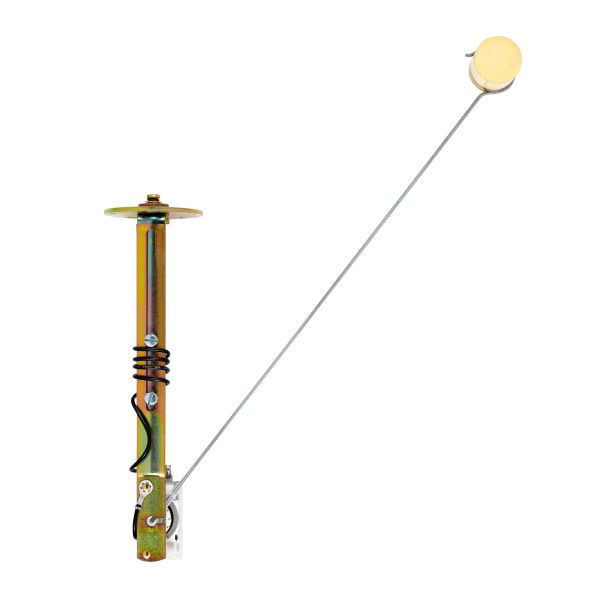

Stewart Warner Sender Fuel 391C-D
Float Arm Fuel Level Sender
Float Arm Fuel Level Sender
Float Arm Fuel Level Sender
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description
Stewart Warner offers various sensors, senders, switches, panels, light kits, and more to ease the addition or the servicing of existing gauges in your vehicle. Each component performs with great accuracy and reliability to provide years of service.
- Reliability for more than 20-million cycles
- A Phosphor bronze wiper with nickel-silver contact provides extended life under fuel sloshing, vibration, and dither conditions
- The extended float arm support is resistant to side-to-side movement from fuel slosh
- The Solid Lifecell float will not sink
- Copper alloy hardware is used throughout for extra durability
Specifications
| Connector Type: | 1 (Post/Nut) |
| Flange: | LH |
| Gauge Line: | Deluxe |
| Gauge Note 3: | NOTE: 1 - Fuel sender installations support either a right hand (RH) or left hand (LH) configuration. Fixed arm senders may be available for a custom solution. |
| Gauge Note 4: | NOTE: 2 - Custom units available for isolated ground, consult with salesperson. |
| Gauge Note 5: | For other sending unit options, please see Fuel Sender section. |
| Gauge/Item Name: | Fuel Level Sensor |
| Gauge/Item Type: | Sensor/Sender |
| Type Description: | Thick Film (Float Arm Type) Fuel Sender |
| Ground Type: | Common (Stud) |
| Ohms: | 240-33.5 Ohms |
| Prop 65 Yes/No: | Yes |
| Tank Depth: | 15.5-24 in. |
