Item # 62300 BRAND: Stewart Warner

Stewart Warner Street Rod Gauge Kit 82218

Deluxe 6-Gauge Kit
Deluxe 6-Gauge Kit
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 4.42ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$590.99
Loading...
Loading...
Save for Later
Deluxe 6-Gauge Kit

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support

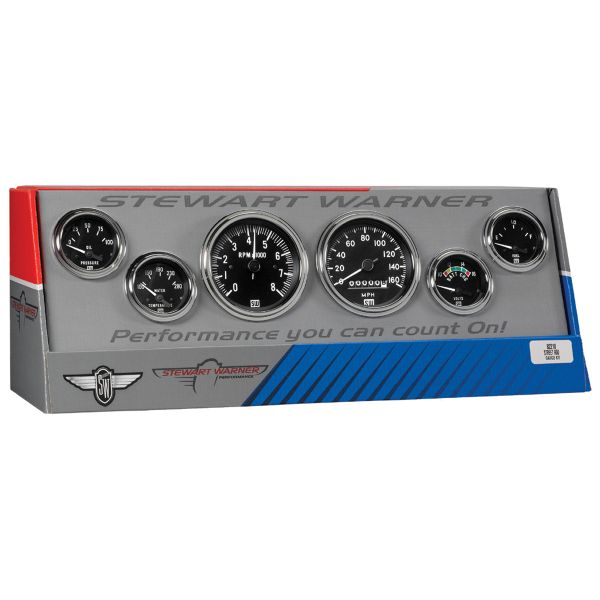

Stewart Warner Street Rod Gauge Kit 82218

Product Overview:

Description

The Deluxe-Series Gauge is the original of the Stewart Warner lineup. A vintage white and black display with a low-profile bezel pairs perfectly with street rods and classic vehicles. They are available for various application readings and in both electrical or mechanical versions.

  • An illuminated ring provides easy night-time readability
  • Overvoltage and reverse polarity protection
  • Fully-sealed bobbin assembly to house the gauge motor
  • IP 66 rated front enclosure with dust-proof in the rear
  • SAE and ISO-standards compliant
  • Operating temperature: -40 degree F (-40 C) to + 185 degree F (85 C)
  • Speedometer Gauge:
    • Size: 3-3/8 in. (86 mm) Diameter
    • Mechanical
    • 0-160 MPH
    • Full sweep
    • Analog odometer
    • Uses existing mechanical cable connection to the transmission
  • Tachometer Gauge:
    • Size: 3-3/8 in. (86 mm) Diameter
    • Electrical
    • 0-8,000 RPM
    • Full sweep
    • Uses existing electrical tachometer connection
  • Oil Pressure Gauge:
    • Size: 2-1/16 in. (52 mm) Diameter
    • Electrical
    • 0-100 PSI
    • Short sweep
  • Water Temperature Gauge:
    • Size: 2-1/16 in. (52 mm) Diameter
    • Electrical
    • 100-280 degree F
    • Short sweep
  • Fuel Level Gauge:
    • Size: 2-1/16 in. (52 mm) Diameter
    • Electrical
    • E-1/2-F scale
    • Short sweep
    • 240-33.500 Ohms range
  • Voltmeter Gauge:
    • Size: 2-1/16 in. (52 mm) Diameter
    • Electrical
    • 10-16 V DC
    • Short sweep
    • Uses existing connection

Specifications

Gauge Line: Deluxe
Gauge/Item Name: Gauge Set
Gauge/Item Type: Electrical & Mechanical Combination Gauges
Type Description: Deluxe
Scale: Speedometer - 0-160 MPH; Tachometer - 0-8,000 RPM; Oil Pressure - 0-100 PSI; Water Temp - 100-280 °F; Fuel Level - E-1/2-F; Voltmeter - 10-16 VDC
Diameter, in: Tach/Speedo - 3-3/8; Gauges - 2-1/16"
Prop 65 Yes/No: Yes
Ohms: 240-33.5
Volt/Watt/Current: 12 V
Product Family: Deluxe
Notes: Mechanical speedometer.Gauge kit includes gauge mounting hardware.12V or 24V light kits are sold separately. These are available for 5/8" and 1/2" light holes, in single-wire (grounds to gauge case) or two-wire (when ground cannot be made via gauge case) configurations. Please see Accessories section for available light kits, panel kits, and other options.
