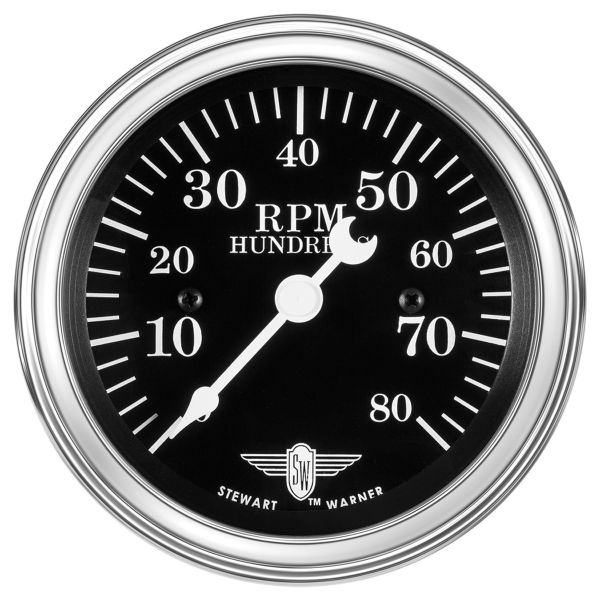

Stewart Warner Tachometer 82660

Product Overview:


The Stewart Warner Wings-Series features nostalgic 1940's inspired English-scale graphic dials with teardrop pointers. Flashy chrome bezels and convex glass lenses pair perfectly with street rods and vintage cars and trucks. They are available with a white-on-black or black-on-white gauge face and in both mechanical or electrical versions.

  • Works with 4, 6, and 8-cylinder engines
  • Battery ignition coil signal
  • Full sweep display
  • Distinctive SW Wings logo
  • Teardrop-style pointer with a crescent moon tail
  • Convex glass lens
  • Superior night-time illumination
  • Overvoltage and reverse polarity protection
  • Corrosion-resistant and dust-proof housing
  • SAE and ISO-standards compliant
  • Operating temperature: -40 degree F (-40 C) to + 185 degree F (85 C)


Gauge Diameter: 3-3/8 in.
Gauge Line: Wings
Gauge Note 1: 4, 6, 8-cylinder
Gauge/Item Name: Tachometer Gauge
Gauge/Item Type: Electrical Gauge
Type Description: Tachometer (electrical)
Bezel/Finish: Polished / White
Volt/Watt/Current: 12 V
Prop 65 Yes/No: Yes
Scale Range: 0-8000 rpm
Signal: Battery ignition
Notes: Battery ignition signal tachometer.For sending unit options, please see the Senders & Sensors section.12V or 24V light kits are sold separately. These are available for 5/8" and 1/2" light holes, in single-wire (grounds to gauge case) or two-wire (when ground cannot be made via gauge case) configurations. Please see Accessories section for available light kits, panel kits, and other options.
