Item # 31243 BRAND: Motor Guard

Super Pro Plus Stud Welder

Includes robust 2,000-amp stud welder gun to help repair dents fast
Includes robust 2,000-amp stud welder gun to help repair dents fast
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 126.65ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$574.99
Loading...
Loading...
Save for Later
Includes robust 2,000-amp stud welder gun to help repair dents fast

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Super Pro Plus Stud Welder

Product Overview:

Description

Powerful 2,000-amp Stud Welder makes this Super Pro Plus Dent-Pulling System perfect for most any body repair job.

  • 4 electrodes, for stud, Magna Wire, rivet welding, shrinking
  • 2 sizes of draw pins, for light- and heavy-gauge work
  • Includes twist-on/off slide hammer and "T" hand puller

You'll use this professional system to repair most dents, "pull" creases, weld trim rivets, and shrink metal, and the robust 2,000-amp stud welder gun helps you get it done fast.

FAQs

(Q) Do I need a 220-volt system to operate this?
(A) No, standard 110v will work.

(Q) Do I need a welding mask when using this?
(A) It’s not necessary, but don’t look directly into the momentary flash.

(Q) How do I get the pins off after they’ve been welded onto the surface?
(A) After you’ve made your pulls, simply snip or grind the pins off.

In the Box

Contents

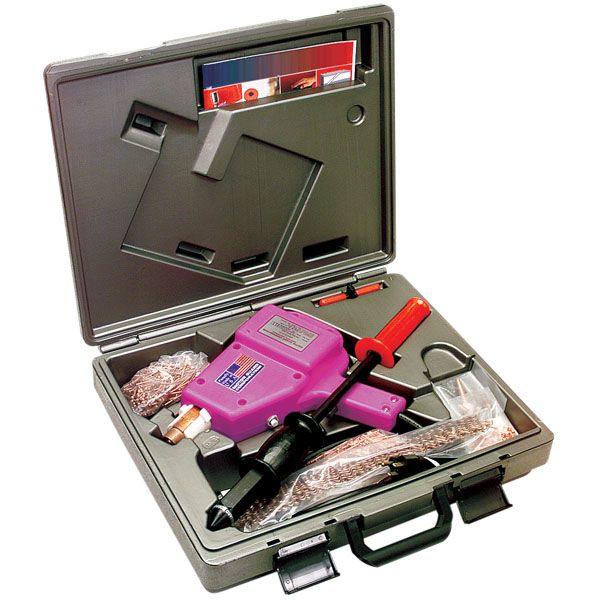

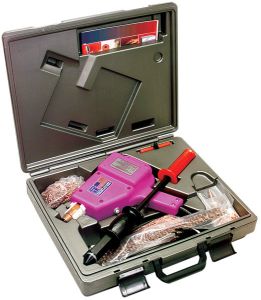

Super Pro Plus Stud Welder Kit includes the 110vAC, 2,000-amp stud gun; Magna T-Puller; twist-on/off slide hammer; 500 draw pins (250 each: 2.0mm, and 2.5mm for heavier-gauge rocker panels); 150 trim rivets; trim rivet tip; shrinking tip; magna wire tip; 1/2-lb. of Magna Wire for welding along creases; instructions; all in a molded storage/carry case.

Guides & Accessories

Safety Information

Always wear eye protection, as well as gloves and long sleeves, when using this product. Typically there are no sparks emitted when welding, but as a precaution, make sure there are no flammables in the immediate area.

Accessories

31014 Shoot Suit Welded Stud Puller

Application Tips

The Stud Welder Dent Pulling System makes pulling dents from one side possible without drilling holes! Easy to use, simply remove paint from area to be repaired. Load draw pin into gun, push spring loaded stud welder gun against surface until outer contact ring touches surface, and depress the switch for.5 to 1 second to anchor the pin. Twist on the slide hammer pull out dent until flush. On larger dents when using multiple pins gradually work each pin in turn until surface is level.

Reviews

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 19.16ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

Questions & Answers

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 113.83ms
  • QUESTIONS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Super Pro Plus Stud Welder
$574.99
In Stock
