BRAND: Superwinch

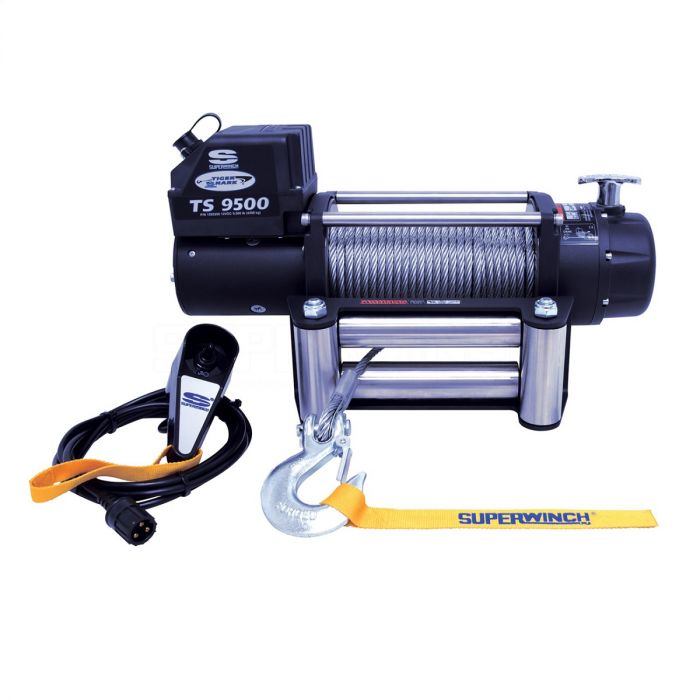

Superwinch Tiger Shark 9500 Winch 1595200
Tiger Shark 9500 12V Wire Rope Winch
Manufacturer Warranty Included
90 Day Returns + 100% Satisfaction Guarantee
FREE Lifetime Tech Support
The Eastwood Company Warranty
At Eastwood we care about your DIY automotive projects and want you to be 100% satisfied with our products. That’s how we’ve done business since 1978.
Warranty periods vary per product and manufacturer.
The warranty period begins on the date the product is delivered.
Warranty refunds and exchanges require proof of purchase.
To obtain warranty coverage, contact Eastwood at 1-800-343-9353 for an RMA number.
Learn More About Eastwood's Warranty Policy >
*Some exclusions apply. See Eastwood’s full warranty policy for more details.
100% Satisfaction Guarantee Since 1978
This product carries a 90-day 100% Satisfaction Guarantee.
At Eastwood we care about your DIY automotive projects and want you to be 100% satisfied with our products. That's how we've done business since 1978.
If within 90 days of purchase you are dissatisfied with a purchase from Eastwood, you may return and receive a refund or replacement.
Beyond 90 days, a credit may be offered instead of a full refund.
To initiate a product return you can fill out our contact form or call Customer Service at 1-800-343-9353.
FREE Lifetime Tech Support
This product includes FREE Lifetime Tech Support from our U.S.-Based Customer Solutions Team.
Looking for advice on your project or product recommendations? Our in-house Project Advisors have the same passion for DIY automotive restoration as you do. Get advice on your project, personalized product recommendations and answers to your questions. Give us a call or email projectadvisors@eastwood.com .
If you ever need post-purchase technical support, give us a call at 1-800-343-9353. or email tech@eastwood.com .
Description
One of Superwinch's most popular winches, the Tiger Shark 9500 Winch comes standard with an automatic load holding brake, better drums (thicker, fabricated steel), and stainless steel hardware and tie bars. Dollar for dollar, there's no better winch than the Superwinch Tiger Shark.
12V DC 9,500 lbs rated line pull 5.2 HP motor 3-Stage planetary gearing with 218:1 ratio Weather sealed solenoid Ergonomic pull and turn freespool 21/64 in x 95 ft steel wire rope Automatic load holding brake design Heavy-duty, clevis pinned, latched hook Stainless steel 4-way roller fairlead Rugged handheld remote control Stainless steel tiebars
specifications_ax
Brake: Mechanical, Automatic Load Holding Clutch: Pull and Turn, Ergonomic Dimensions: 20.8in L x 6.3in W x 9.2in H (529mm L x 160mm W x 234.5mm H) Drum Diameter: 2.5in (63.5mm) Drum Length: 9.0in (228.6mm) Fairlead: Heavy Duty Stainless Steel 4-way Roller Gear Ratio: 218:1 Gearing: 3-Stage Planetary Hook: Heavy-Duty, Clevis Pinned Latched Installed Weight: 90 lbs (41kg) Line Pull, 0 lbs: 80 Amps Motor Draw/19 FPM (5.7 MPM) Line Speed Line Pull, 9,500 lbs: 340 Amps Motor Draw/4 FPM (1.2 MPM) Line Speed Motor: Sealed 5.2 HP Series Wound Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm) & 10in x 6.5in (254mm x 165.1mm) Rated Line Pull: 9,500 lbs (4309.1 kg) Remote: Sealed Hand-held with 12ft cord Rope: Steel Wire 21/64in x 95ft (8.3mm x 29m) Solenoid: Sealed Solenoid, Circuit Breaker Protected
*Note: Specifications are approximate and subject to change.
