Eastwood Original Throatless Shear

Product Overview:

Description

The Eastwood Throatless Metal Shear Features:

Throatless Bench Shear makes quick, clean, cuts in metal—straight, curved, or more intricate

  • Rack and pinion gearing, plus extended handle, improve your leverage
  • Tool steel blades slice thru 14 gauge mild steel, 14 gauge aluminum, 18 gauge stainless
  • Throatless shear is crafted of rugged cast iron

This is not your typical metal cutter. Our rugged, cast iron throatless shear allows you to make straight, intricately curved and irregular cuts in metal with ease and accuracy.

Eastwood Throatless Shear

Throatless hand shear design amplifies leverage with rack and pinion gearing and an extended handle, so you’ll easily slice through 14-ga. mild steel, 14-ga. aluminum and 18-ga. stainless. Tool steel blades (adjustable for wear) provide burr-free cuts. Metal cutter’s base has three holes for mounting this throatless hand shear on your workbench or our 13162 Tool Stand.

Warranty

1 Year

Specifications

Maximum Cutting Thickness:
  • 14 Gauge Mild Steel
  • 14 Gauge Aluminum
  • 18 Gauge Stainless Steel

In the Box

Contents

  • (1) 4” Metal Shear
  • (1) 17” Handle

Guides & Accessories

Instructions

Safety Information

Thoroughly read and understand this manual before using.

This tool has EXTREMELY SHARP cutting blades with amplified leverage on the upper blade which can quickly cause severe injury or loss of fingers! Keep fingers and hands away from moving parts when operating.

Click here to see safety products

Accessories

13162 Tool Stand lets you work at a comfortable 30-1/2" height.

Reviews

Rated 5 out of 5 by from super tool It does what it says it would do. Well built tool!
Date published: 2024-03-18
Rated 5 out of 5 by from Sweet shear Cuts through 16 ga. steel like it's butter! Nice, smooth cutting action
Date published: 2024-01-03
Rated 5 out of 5 by from A must for silverware jewelry production Works well for silverware jewelry projects , trimming rims from silverplated platters is a breeze with this tool.
Date published: 2023-11-26
Rated 5 out of 5 by from Cool Tool!! This is a great tool for cutting curves in sheet metal.
Date published: 2023-10-14
Rated 5 out of 5 by from Nice shear for the $ Cuts well and adjusted correctly right out of the box. Not big and cumbersome I clamped to the fab table for ease of removal. Much nicer than the competition that's for sure.
Date published: 2023-10-11
Rated 5 out of 5 by from Great value vs cost An invaluable addition to anyone's shop who wants to become more familiarized with metalworking.
Date published: 2023-10-07
Rated 5 out of 5 by from Shear After going through a couple Wiss Shears I decided on the throatless bench shear and it works nicely
Date published: 2023-06-30
Rated 5 out of 5 by from Throatless shear Measure the blade gap along the entire length to make sure they are parallel.
Date published: 2023-01-27
  • y_2024, m_4, d_15, h_3
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.41
  • cp_1, bvpage1
  • co_hasreviews, tv_19, tr_49
  • loc_en_US, sid_11797, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 5.73ms
  • REVIEWS, PRODUCT

Questions & Answers

When adjusting the shears how close to you want the mass to be . Need to know-how to properly make adjustw

Asked by: John61
Please reference Page 4 of the instruction manual for blade adjustment guidelines: https://www.eastwood.com/images/pdf/11797Q_inst.pdf
Answered by: Nick BC
Date published: 2024-04-13

I see that it is rated for 14 gauge mild steel, would it be able to cut 14 gauge steel purlins?

Asked by: Cajun blacksmith
CEE Purlins and ZEE Purlins are usually cut on floor mounted shearing machines. The Eastwood Throat less Shear will gut 14 gauge sheet metal without issue but it is not designed to cut the sharp 90 degree bends on the metal purlins.
Answered by: vince
Date published: 2022-05-23

I need two shears for an auto part. 1.2 mm aluminum and needs to be a repeatable cut. I have to design a tool. can you supply a CAD dwg of Eastwood Shear? if not, something else?

Asked by: Jim Fox
Unfortunately Eastwood does not supply technical drawings.
Answered by: vince
Date published: 2021-04-24

Will this shear cut aluminum? If so, how thick?

Asked by: Banshee880
Yes the Eastwood Throatless Metal Shear(11797) is rated to cut Aluminum as thick as 14 gauge.
Answered by: vince
Date published: 2023-04-21

What is the maximum thickness of aluminum sheet metal that this tool can cut? For me specifically, is it capable of cutting 1/8" and 1/4" 3003, 5052, and/or 6061 aluminum without bending the metal after adjusting the blades?

Asked by: Anonymous
We would have to keep the rating the same at 14 gauge with aluminum as 12 gauge would be a substantial difference.
Answered by: Kelly H
Date published: 2022-05-23

Hi, Is the 11797 Shear being discontinued? If it is are you going to list replacement blades on ebay? I just ordered one on ebay from you, and would like to get an extra set of blades before they become unavailable.

Asked by: Teds

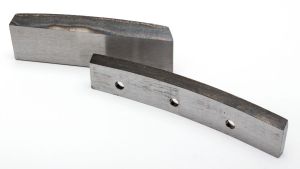

I am pleased to inform you that the Eastwood company is not discontinuing the Eastwood Throatless Shear(11797). Replacement blades are available. When ordering use item# 20454.
Answered by: vince
Date published: 2023-04-21

Will this cut 1/4 and 3/8 inch round mild steel rod?

Asked by: Kyle72
This unit will not slice through solid rod. For solid rod as thick as you are referring to you'll need our Manual Iron worker. https://www.eastwood.com/manual-iron-worker.html
Answered by: Scott C
Date published: 2020-09-16

Where are these shears made?

Asked by: Dave
This product is manufactured in China.
Answered by: SeanW
Date published: 2023-03-25
