Item #
20492
BRAND: Eastwood
TIG 200ACDC Foot Pedal upgrade 2 and 3 Pin

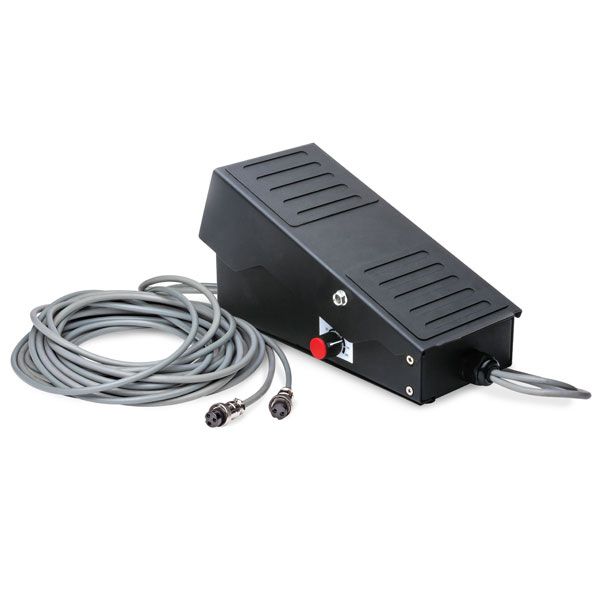

Rocker style, precision foot pedal control for 12746 Eastwood TIG 200 AC/DC
Rocker style, precision foot pedal control for 12746 Eastwood TIG 200 AC/DC
TIG 200ACDC Foot Pedal upgrade 2 and 3 Pin is rated
out of
5 by
18.
Rocker style, precision foot pedal control for 12746 Eastwood TIG 200 AC/DC
None Warranty Included
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description
Precise control with no fatigue delivers better welds when using this rocker style foot pedal with your 12746 Eastwood TIG 200 AC/DC Welder.
- Works with Eastwood 12746 TIG 200 AC/DC Welders
- Low profile design for maximum user comfort
- Rocker style foot pedal function
- Infinitely adjustable amperage limiting knob
Features an infinitely adjustable amperage control knob, low profile design for maximum comfort with rubber feet and pedal pad for non-slip security.
Warranty
1 year Made in China
In the Box
Contents
4.5 x 10 Inch footprint. One foot pedal.
This Foot Pedal will only fit the 20565 & 12746 Eastwood TIG 200 AC/DC Welders. Will not work on the 14100 Eastwood TIG 200 DC Welder.
Guides & Accessories
Safety Information
Always wear an approved welding helmet and welding gloves when welding. Do not use around flammable materials.
Accessories
Reviews
Rated 5 out of
5
by
Ninjancik from
Standard Equipment
This is my first welder and the original pedal was more like a light switch than a pedal you can modulate. This pedal is much easier to tune amperage and much more comfortable to use. This should be the standard pedal for the TIG 200.
Date published: 2016-09-22
Rated 5 out of
5
by
Oldy from
This should be this standard accessory.
The pedal just arrived yesterday so I haven't hooked it up yet, but Just working it on the floor it feels 500 percent better than the little half pedal that comes with the T200 TIG welder. Every time I tried to use that pedal, it would move around under my foot & I would have to search blindly for it. One time my foot hit the adjust knob & all of a sudden the welder wouldn't weld because I have moved the Amp setting down to 20 with my foot. I was almost tempted to glue that half-pedal to the floor!
Date published: 2016-08-27
Rated 5 out of
5
by
Send It Racing from
Excellent upgrade !
Received my new foot pedal for my tig 200 this week. So much easier to control my heat when welding now. Thanks Eastwood !
Date published: 2016-07-23
Rated 4 out of
5
by
Jorge from
Good upgrade but pricey
It is a good upgrade, but expensive. While I like it, it does not feel it’s worth the extra expense for me. The half pedal will do the job and unless you weld a lot I would not recommend spending the money. Please do not get the wrong idea, it is a better feel and seems to modulate well. I’m just not going to use it enough to say it was a good buy for me. If you plan to weld a lot, it will be well worth your investment to upgrade the half pedal.
Date published: 2023-02-07
Rated 4 out of
5
by
DavePDX from
Worth it, but could be better.
Yes, 100% worth the extra $100 just for the fact it doesn't slip away from you like the pedal that comes with the TIG200. However, I was hoping for more amperage control and it just wasn't there. It's basically a more ergonomic on/off switch.
Date published: 2018-09-01
Rated 4 out of
5
by
djm700z from
SHOULD BE STANDARD
Just bought,super fast shipping and a must to replace the completely useless pedal that comes with it,seriously Eastwood,ditch that old pedal,you know it's junk this shouldn't be an upgrade,thats my only gripe hence 4 stars.
Anyone on the fence about purchasing this pedal, DO NOT wait,buy it!
Date published: 2018-03-26
Rated 4 out of
5
by
WMV MAX from
what it needed
This is what the Eastwood tig 200 needed, the stock peddle has no feel whereas this one feels like a tig peddle should .would get 5 stars if it had a single wire instead of two that I had to tape together. Buy it you'll like it.
Date published: 2016-07-18
Rated 2 out of
5
by
J Valdez from
Needs wiri g work for older Tig 200
Looks solid and I look forward to using it. But it does not fit the older Tig 200 and Eastwood stopped selling an adapte. So, I need to wire the foot pedal to the old style connect which looks strait forward enough.
Gave two stars for the work needed just to get yhis to work on an older two pin machine.
Date published: 2023-03-04
Rated 2 out of
5
by
Anonymous from
“Upgraded” pedal
Goes bad every year like clockwork. Another just alright product from Eastwood.
Date published: 2022-10-26
Rated 1 out of
5
by
Nick from
Works great but no replacement parts available from Eastwood
This foot pedal is a huge upgrade. Unfortunately mine stopped working due to the linear potentiometer failing. Linear potentiometers are a wear item and will go bad eventually. This is one of two electrical components in the unit and are inexpensive parts. Eastwood support said they do not carry replacement components, and also could not give me a part number for the component. They said the only option was to buy a new foot pedal.
Date published: 2024-01-01
Rated 1 out of
5
by
Flyboy from
Make sure you get adapter connector
I bought this pedal hoping to use it on my Tig 200 which is one of the first ones made. Make sure you get the adapter connector that makes their newer metal 2 pin cable connector to the older style 4 pin plastic connector (only 2 pins used). Waiting for it to arrive, hoping it works.
I drove 1:40 mins each way only to find out it wouldn't work on mine.
Date published: 2020-08-18
Questions & Answers
What are the specs of the pentameter on this foot switch ? Would rather buy from Eastwood if it will be compatible with my 2/3 plug Lotus Tig200 welder
Unfortunately we do not have specs to send at this time.
Date published: 2020-10-13
I have an older TIG 200 ac/dc machine, which has the 3 pin metal and 2 pin plastic connectors. Can I use this pedal on my machine if I transfer over the 2 pin plastic connector onto this pedal?
Yes, this pedal could be utilized if you swap out the connection ports/pieces.
Date published: 2020-05-06
Will this pedal work with 250I welter
The MP 250I is not set up for use with a Foot Pedal.
Date published: 2018-12-17
any plans to come out with a torch mounted amperage control
As of right now it is simply a concept but nothing set in stone.
Date published: 2024-11-26
Does this pedal work for all 2 pin machines not just east wood
We have never tested our foot pedal with other brands at this time.
Date published: 2020-10-13
What if my welder has the plastic 2 pin plug?
We have an adapter for your unit. A simple call into our Customer solutions line can get you one of these.
Date published: 2020-05-08
How does this pedal differ from the one that comes with the machine?
This pedal allows you to rock your entire ankle to change the amperage while the stock one you push down like a gas pedal.
Date published: 2016-12-05
Does this foot pedal control variable amperage to the maximum set on the adjustable maximum knob??
Correct. The knob on the side controls the max amperage for the pedal while the movement of the pedal varies from low amperage up to what you set at.
Date published: 2021-01-27
