Item #
67289
BRAND: Titan

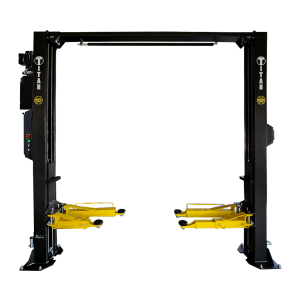

Titan Lifts 9000 LBS 2-POST MASTER SERIES CLEARFLOOR LIFT HD2P-9KMSC
Titan Master Series HD2P-9KMSC 9,000lb Clearfloor 2-Post Lift
Titan Master Series HD2P-9KMSC 9,000lb Clearfloor 2-Post Lift
Titan Master Series HD2P-9KMSC 9,000lb Clearfloor 2-Post Lift
Manufacturer Warranty Included
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description
- Direct Drive Hydraulic Cylinders
- Overhead Shut-off Bar w/Limit Switch
- Serviceable Arm Restraint Locks
- Thread-up Lifting Pads
- Carriage Limit Switch
- 3-Stage Front Arms
- Single-Point Lock Release
- European Style Carriages
- 4” Truck Adapters
- Rubber Door Guards
- Steel Toe-guards
- Steel Hydraulic Oil Reservoir
- 5 Year Structural Warranty
- 2 Year Electric/Hydraulic Warranty
- Lifetime Warranty on Nylon Slide Blocks
- Durable Textured Powder-coated Finish
Specifications
| Type | Clearfloor / Asymmetric |
|---|---|
| Lifting Capacity | 9,000lb |
| Lifting Time | 50-60 sec. |
| Overall Height* | 140 1/2" *CYLINDERS WILL EXTEND 7” THROUGH THE TOP PLATES WHEN LIFT IS RAISED TO MAX HEIGHT. |
| Width Between Posts | 111 1/2" |
| Drive-Thru | 100 3/4" |
| Low Pad Height | 3 3/4" |
| Lifting Height | 74 1/4” (81 3/4" using Truck Adapters with Pad Mounts threaded up) |
| Power Unit | 220V/1Ph/60Hz |
In the Box
Guides & Accessories
Instructions
Reviews
Rated 5 out of
5
by
Jim3 from
Awesome, one handle releases both locking levers
I have had this lift for 2 years, excellent product and build quality. Would highly recommend purchasing thisnlift
Date published: 2024-12-16
Questions & Answers
What is the shipping cost on this and does it require a forklift to unload?
what is the overall outside width?
WHAT KIND OF AMERAGE RATINGS IS NEEDED FOR THIS LIFT
Titan Lifts 9000 LBS 2-POST MASTER SERIES CLEARFLOOR LIFT HD2P-9KMSC
$3,020.00
In Stock
