Titan Lifts HD4P-12000 - Four-Post - 12000 lb. Capacity HD4P-12000

Product Overview:

Description

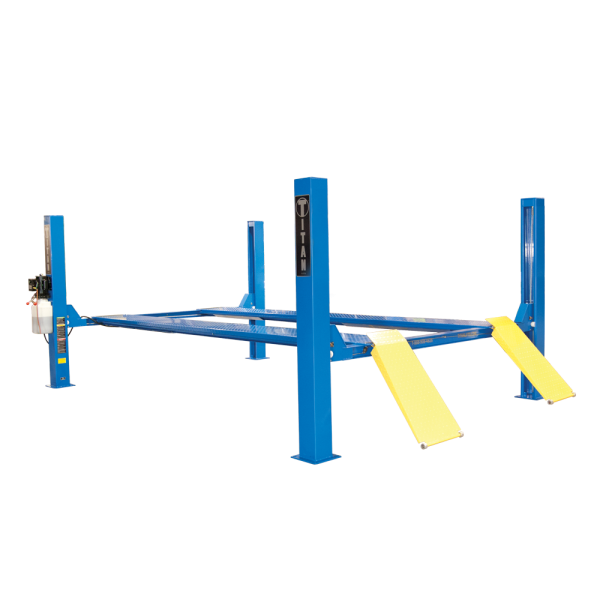

The HD4P-12000 4-post lift provides 12,000 lb of lifting capacity. There is no power beam; the cylinder is stored under one of the single-piece diamond-plate tracks. The HD4P-12000 utilizes a simple lever release system and safety locks. This commercial grade, cable driven lift gives you the power needed to work on heavy vehicles in a solid 4-post setup.

Do body work, engine maintenance and more by setting large vehicles on a Titan HD4P-12000 4-Post Lift. The design supports hauling trucks, utility vans and other commercial vehicles with a cable-driven hoist that gets them up to 67 inches off the ground. The hydraulic sits under one of the diamond-plated tracks, eliminating the power beam for low-ceiling shops. Get your vehicle off the ground quickly for work or storage by trusting this heavy-duty 12,000-lb. automotive lift from Eastwood.

Features:

  • Lifting capacity: 12,000 lbs
  • Simple lever release system and safety locks for security
  • Commercial grade, cable driven lift

Warranty

5 Year Structure / 1 Year Electrical

Specifications

Overall Height 88''
Overall Width 137''
Overall Length 195.25''
Lifting Speed 51 sec
Max Lifting Height 67''
Lowered Runway Height 6''
Width Between Columns 118.5''
Max Drive-Thru Clearance 104.5''
Max Clearance Under Runway 63''
Runway Width 19.25''
Width Between Runways 48''
Runway Length (no ramp) 191.25''
Ramp Length 38''
Load Capacity 12,000 lb
Concrete Spec. Min. 6'' Reinforced @ 3,000 PSI
Power Supply 220V-1PH-60HZ-20AMP
SHIPPING
Shipping Length 196''
Shipping Width 25''
Shipping Height 43''
Shipping Weight 2,320 lb

Shipping & Handling

Unloading: A delivery dock and/or forklift is required for delivery of this product. Please note that the truck driver will NOT assist in unloading the product for you. We are not responsible for personal injury or damage to the product resulting from unloading the merchandise.

In the Box

Guides & Accessories

Reviews

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 3.45ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

Questions & Answers

where is this lift manufactured ?

Asked by: Hudsonman
Titan Lifts: Superior quality and made here in the USA at our factory (ACL Fabrication) in Burleson TX. Who manufactures Titan lifts? JMC Automotive Equipment is no stranger to vehicle lifts and all sorts of tools that go along with them.
Answered by: Anonymous
Date published: 2023-03-24

If I live near Burleson Texas can I just bit up there . To save shipping cost
