Tuxedo Distributors 12000 lb - iDEAL Two Post Clear Floor Lift - ALI Certified TP12KSC-DX
1 Year Manufacturers Warranty Warranty Included
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Product Overview:
Description

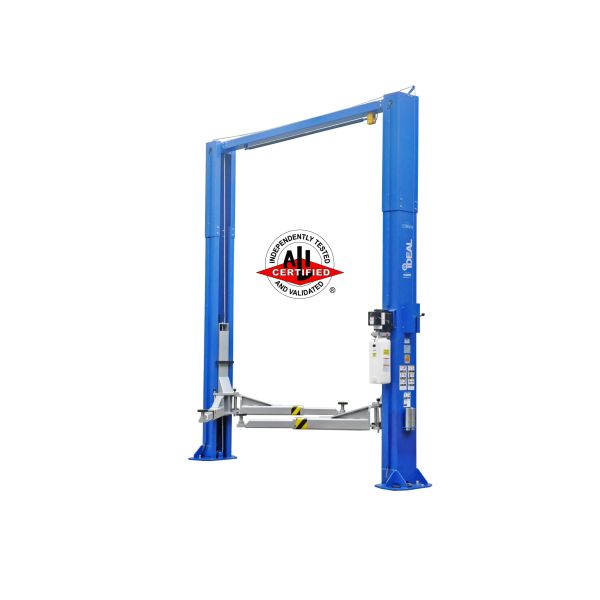

Tuxedo, iDEAL, Two Post Clear Floor Lift
The New iDEAL TP12KSC-DX 12,000 lb. ALI Certified Heavy Duty Two Post Lift is a premium symmetric design clear floor vehicle lift with the latest design features, now including low profile swing arms, adjustable swivel pads & single point cable lock release. The symmetric arm configuration provides stable lifting, making it perfect for super duty & light duty trucks along with most passenger cars. The direct ‘push’ drive cylinders, hose & door guards and automatic arm restraints complete the package for a premium, high quality lift, all at a great value!
Features
- ALI Certified
- 12,000 lbs capacity
- Symmetric arms
- Rubber door guards
- Direct drive push cylinders
- Single point lock release
- Heavy duty arm restraint system
- Spin up lift pads 5” min. pad height
- Stackable adapters included
- External hose guards
- Duro certifed power unit – MET, UL, CSA
Warranty
Specifications
| Lift Model | TP12KSC-DX |
| Capacity | 12,000 lbs. |
| Height Overall | 168-1/2" |
| Width Overall w/ Power Unit | 151-5/16" |
| Max Lift Height | 75" |
| Width Between Columns | 122" |
| Min. Pad Height | 4-7/8" |
| Drive Thru Clearance | 109" |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach – min/max | 37-5/8" – 57" |
| Long Arm Reach – min/max | Same |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 3,000 lbs |
| Ship Weight | 2,295 lbs |
| Power | 220V – 20 AMP – 1 PH |
