Tuxedo Distributors 12000 lb Two Post Floor Plate Lift TP12KFX

Description

Tuxedo, Two Post Floor Plate Lift

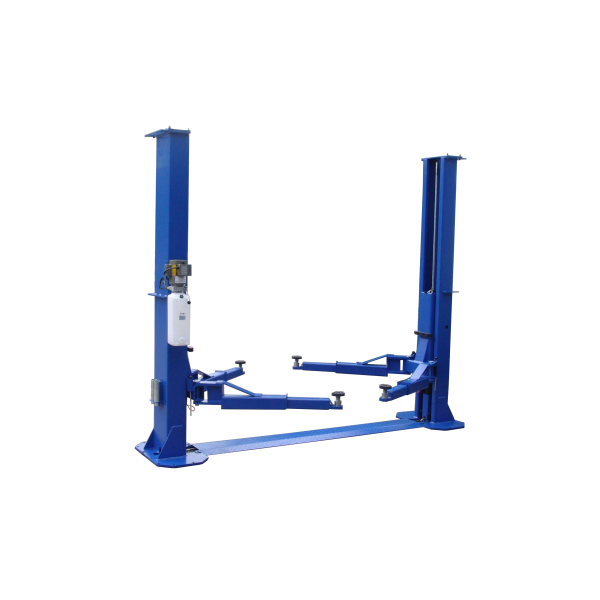

The new TP12KFX Two Post Floor Plate Lift has been redesigned and now come standard with low profile drop-in adjustable swivel pads with height adapters, internal hose routing, padded overhead shut-off bar with kill switch, reduced overall width, and rubber door guards, making this model some of the best heavy duty Two Post Lift values in the industry.

Features

  • 12,000 lbs capacity
  • Symmetric arms
  • Rubber door guards
  • Chain drive cylinders
  • Dual point lock release
  • Auto arm restraint system
  • Spin up lift pads
  • Stackable adapters included
  • Internal hose routing

Specifications

Lift Model TP12KFX
Capacity 12,000 lbs.
Height Overall 121-1/2"
Width Overall w/ Power Unit 147-7/8"
Max Lift Height 76-1/2"
Width Between Columns 120-5/16"
Min. Pad Height 5"
Drive Thru Clearance 109"
Lifting Speed 45S
Asymmetric / Symmetric Symmetric
Clear Floor / Floor Plate Floor Plate
Short Arm Reach – min/max 37" – 52-1/2"
Long Arm Reach – min/max Same
Narrow Bay Setting NA
Max Load Per Arm 3,000 lbs.
Ship Weight 2,460 lbs
Power 220V – 20 AMP – 1 PH

Warranty

Manufacturer

Shipping

Free Shipping

Fork Lift Required for Delivery

Application Tips

Tuxedo Tech Support

Safety Information

Please read and follow manufacturers instructions.
