Item #
55221
BRAND: Tuxedo

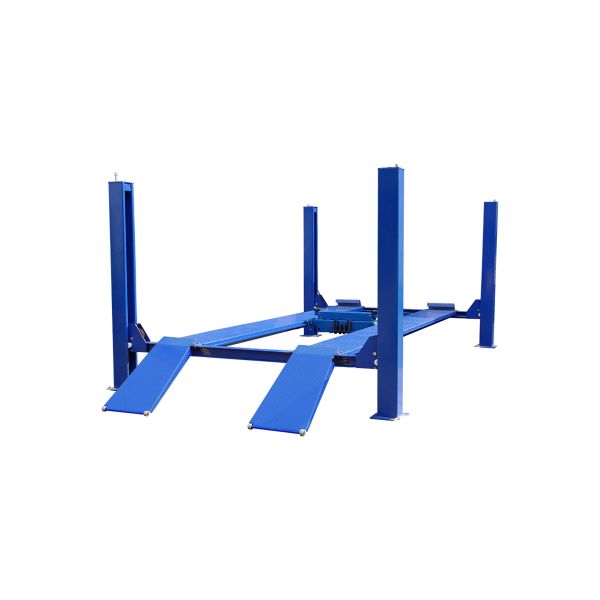

Tuxedo Distributors 14000 lb Four Post Lift - Closed Front - Cable Driven FP14K-C
Tuxedo, Four Post Service Lift
Tuxedo, Four Post Service Lift
Tuxedo, Four Post Service Lift
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Product Overview:
Description
Tuxedo, Four Post Service Lift
Cable drive design keeps the cylinder safely housed under the runway. Since there’s no power beam, we’ve eliminated the risk of damage to doors and mirrors.
Features
- 14,000 lbs capacity
- Cable driven
- 192” max wheelbase
- Single point pneumatic lock release
- Adjustable locking positions
- Slack cable safety
- No Overhead obstructions
- Powder coat finish
Warranty
Specifications
| Lift Model | FP14K-C |
| Capacity | 14,000 lbs. |
| Overall Length w/Ramp | 250-1/2" |
| Overall Width (Outside Base Plates) | 136-3/4" |
| Lifting Height | 68-7/8" |
| Width Between Posts | 110" |
| Width Between Runways | 31-1/4" |
| Width of Runways | 19-1/8" |
| Column Height | 88-5/8" |
| Max. Wheel Base (2 wheel) | 185" |
| Max. Wheel Base (4 wheel) | NA |
| Ramp Length | 43" |
| Max. Clearance under Track | 67.5" |
| Cable Diameter | 7/16" |
| Base Plate Dimensions | 12" X 12" |
| Ship Weight | 3,270 lbs |
| Power | 220V – 20 Amp – 1PH |
Shipping & Handling
Free Shipping
In the Box
Guides & Accessories
Safety Information
Please read and follow manufacturers instructions.
Application Tips
Reviews
Questions & Answers
Tuxedo Distributors 14000 lb Four Post Lift - Closed Front - Cable Driven FP14K-C
$10,399.99
In Stock
