Item #
55236
BRAND: Tuxedo

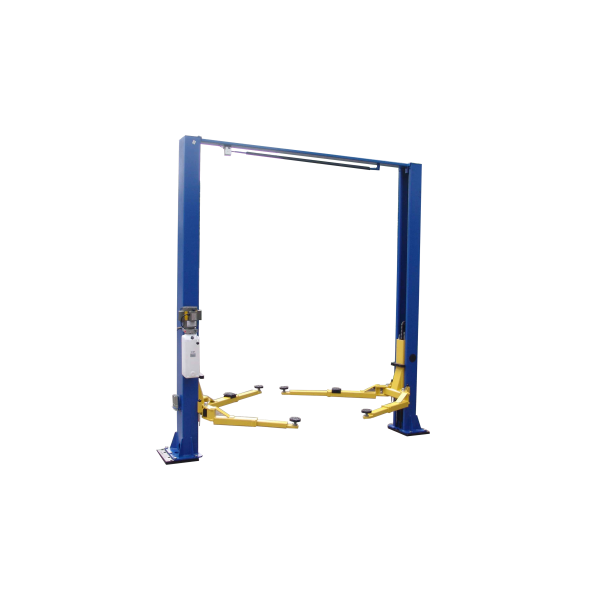

Tuxedo Distributors 9000 lb Two Post Clear Floor Lift - Symmetric TP9KSCX
Tuxedo, Two Post Clear Floor Lift
Tuxedo, Two Post Clear Floor Lift
Tuxedo, Two Post Clear Floor Lift
1 Year Manufacturers Warranty Warranty Included
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Product Overview:
Description
Tuxedo, Two Post Clear Floor Lift
The new TP9KSCX Two Post Clear Floor Lift has been redesigned to now include standard features with single piece column construction, internal hose routing, padded overhead shut-off bar with kill switch, reduced overall width, drop-in adjustable swivel pads with height adapters and rubber door guards, making this model one of the best two post lift values in the industry!
Features
- 9,000 lbs capacity
- Symmetric arms
- Rubber door guards
- Chain drive cylinders
- Dual point lock release
- Auto arm restraint system
- Single piece column
- Internal hose routing
- Low profile spin up lift pads
- Stackable adapters included
Warranty
Specifications
| Lift Model | TP9KSCX |
| Capacity | 9,000 lbs. |
| Height Overall | 142-7/8" |
| Width Overall w/ Power Unit | 138" |
| Max Lift Height | 72" |
| Width Between Columns | 113-5/8" |
| Min. Pad Height | 4" |
| Drive Thru Clearance | 96" |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach – min/max | 31"-45" |
| Long Arm Reach – min/max | Same |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 2,250 lbs. |
| Ship Weight | 1,370 lbs |
| Power | 220V – 20 AMP – 1 PH |
Shipping & Handling
Free Shipping
In the Box
Guides & Accessories
Safety Information
Please read and follow manufacturers instructions.
Application Tips
Reviews
Questions & Answers
Tuxedo Distributors 9000 lb Two Post Clear Floor Lift - Symmetric TP9KSCX
$3,599.99
In Stock
