Item # 55181 BRAND: Tuxedo

Tuxedo Distributors Semi Down Draft Paint Booth 26L-14W-9H 3PH-230V PSB-SEMIDD26B-3PH-230V-AK

Tuxedo, iDEAL, Semi Down Draft Paint Spray Booth
Tuxedo, iDEAL, Semi Down Draft Paint Spray Booth
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 127.03ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$22,999.99
Loading...
Loading...
Save for Later
Tuxedo, iDEAL, Semi Down Draft Paint Spray Booth

3 year Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Tuxedo Distributors Semi Down Draft Paint Booth 26L-14W-9H 3PH-230V PSB-SEMIDD26B-3PH-230V-AK

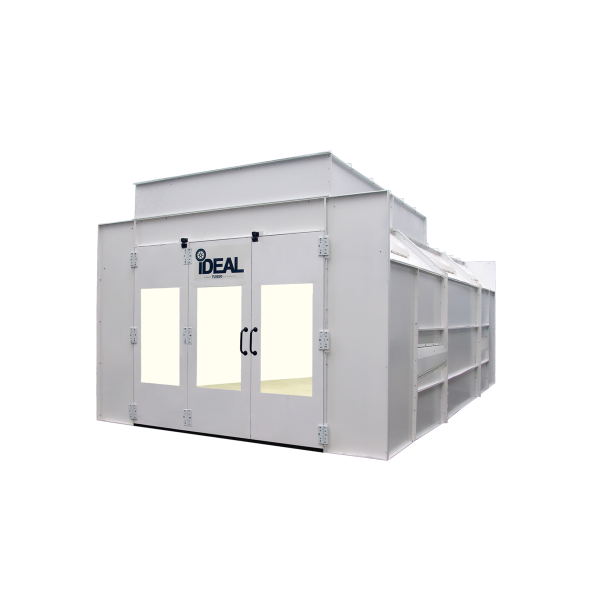

main product photo

Product Overview:

Description

Semi Down Draft Paint Spray Booth

The iDEAL Semi Downdraft Paint Spray Booth is a premium, commercial grade paint spray booth designed to provide superior lighting with optimal ‘semi-downdraft’ air flow to produce a high-quality paint finish quickly & efficiently. The iDEAL Semi Downdraft Booth is great for Automotive, Industrial & Wood finishing applications, while providing a safe & controlled ventilated work area. Exhaust Fan draws filtered air through front ceiling intake filters & flows down towards the rear of the booth into filtered exhaust chamber, then discharged upwards through exhaust fan & ducting. The included bright white powder- coat finish, deluxe control panel, premium filters & high-quality tube-axial exhaust fan complete the package for a premium, high quality Paint Spray Booth, all at a great value!

Features

  • Heavy duty precision punched 18 Gauge panel construction
  • Optimal air flow w/ CFM 12,200 @ .5 static pressure
  • Commercial grade ‘hip panel’ design for optimal lighting coverage
  • Inside Dimensions: 26″ L X 14′ W X 9′ 3″ H
  • Convenient 5/16” bolt & nut assembly
  • Deluxe Control Panel included
  • Bright White Powder Coat panel Finish – (inside & outside)
  • Manometer, Solenoid Valve, Hardware & Sealant Included
  • UL Listed Dayton 30” tube-axial exhaust fan w/ spark resistant fan blades
  • NEMA rated 3HP-3 Phase – 230/460VAC-60Hz motors standard
  • Premium AFC intake & exhaust filters
  • (10ea) LDPI Industrial Lighting T-8 ‘vertical’ light fixtures, 4 lamp
  • (40ea) GE T8 Florescent Lamps – 32W, 5000K 4′ length
  • Tri-fold entry Doors w/ viewing windows & shutoff switch
  • Personnel Door w/ viewing window & shutoff switch
  • Meets NFPA 33 standards
  • Optional: 1PH electrical, plenum kit, Personnel door kit & booth extension kit

Warranty

1 Year Manufacturers Warranty

Specifications

Paint Booth Model PSB-SEMIDD26B-3PH-230V-AK
Inside Dimensions 26'L X 14'W X 9'-3"H
Outside Dimensions 29'-4"L X 14'-4"W X 9'-7"H
Fan / Motor 30" Tube Axial Fan
3HP-3PH-230/460VAC-60HZ
Non-Spark, NEMA Rated
CFM 12,200 @ .5 Static Pressure
Lighting 10 Each T-8 / 4 Bulb Light Fixtures
Options Single Phase Electrical Configuration
Canopy / Plenum Required for Booth Heater
9' Exhaust Extension Kit – 3 Pieces (25" Diameter)
Side Personnel Door Kit
48" Solid Extension Kit
Gas Fired Booth Heater 3 Phase (Plenum Req.)
Gas Fired Booth Heater 1 Phase (Plenum Req.)
Electric Booth Heater 3 Phase
Electric Booth Heater 1 Phase

Shipping

Free Shipping

Fork Lift Required for Delivery

In the Box

Guides & Accessories

Instructions

Click here for product manual

Safety Information

Please read and follow manufacturers instructions.
