Now there's a better way to rustproof your car. This durable undercoating system is ideal for applying Heavy Duty Anti-rust and Rubberized Undercoating.
Applies direct from the adjustable gun nozzle
24" long by 7/16" diameter flexible wands
Straight or 90 degree spray tips
One year manufacturer's warranty
Flexible wands are perfect to rust proof the inside rocker panels, inner fenders & other closed box sections. Undercoating is easily sprayed from the attached gun nozzle (extension wands not recommended for spraying undercoating) Requires 40-60 psi @ 5-6 cfm.
This durable Undercoating system is ideal for applying Heavy Duty Antirust and Rubberized Undercoating. Applies Heavy Duty Antirust direct from the adjustable gun nozzle, or replace the nozzle with one of the 24" long by 7/16" diameter flexible wands with straight or 90 degree spray tips to rust proof inside rocker panels, inner fenders & other closed box sections. Undercoating is easily sprayed from the attached gun nozzle (extension wands not recommended for spraying undercoating).

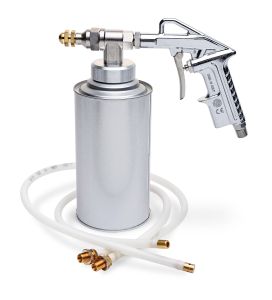

What's Included
Multi-Use Undercoating Gun with 2 flexible wands and metal bottle
Adjustable nozzle for application of various coating viscosities and textures
7" long, aluminum trim-to-fit pick-up tube
32" long, flex hose/wand with 360 degree misting nozzle is for applying thinner materials such as rust proofing to hard-to-reach hollow areas.
24" long, flex hose/wand with single 1/4" orifice for applying thicker materials such as undercoat, bed liner, soundproofing, heat barrier and more to tight spaces and internal areas of frames.
*Note: Specifications are approximate and subject to change.
Unsure of a term? Look it up in our Glossary powered by The Garage
Straight Or 90 Degrees Spray Tips ; 32 in. Long, Flex Hose/Wand With 360 Degrees Misting Nozzle Is For Applying Thinner Materials Such As Rust Proofing To Hard-To-Reach Hollow Areas
Rated 5 out of
5 by
Steve from
Simple and Functional Undercoating Spray GunWorked excellent to get the internals of my new frame fixes coated in rust proofing paint. I had precoated them, but burned some off during welding process, so I used this to get them good with the multi-directional hose. Got all bulkhead areas really good with the one-direction hose. Also used that for small areas that got missed when we brush coated. Easy to use, clear instructions, and easy to clean up with appropriate thinner. Got it ready for the next vehicle in the spring!
Date published: 2024-11-28
Rated 5 out of
5 by
JIM T from
Works Great!!It was just what I needed!! Works well!! Nice product!
Date published: 2021-10-04
Rated 5 out of
5 by
Terry from
Great undercoating spray gun!Great tool for spraying undercoating and with out a mess every place! and very easy to clean!
Date published: 2021-08-28
Rated 4 out of
5 by
Matthew from
Undercoating gunThe gun worked great,, I must admit I didn't use it on my Malibu but on our above ground garden,, built a 10 X 4 foot planter. Used it to coat the inside of the planter to help preserve the wood on the inside of the planter.
I am restoring a 79 Malibu and I will use it to undercoat the wheel wells. The gun sprays nicely.
Date published: 2021-12-23
Rated 4 out of
5 by
Phil from
Undercoating gun and hose kitThe gun didn't work as described. I called Eastwood and am waiting for a replacement gun. Happy that it's being replace but not so happy that I had to spend $13.00 to ship it back. I guess if the replacement works I'll be ok.
Date published: 2021-11-24
Rated 3 out of
5 by
Master Collision from
Not so goodThe can on the gun is very chintzy, without a hose attached it works fairly well, but the 360 spray nozzle is worthless, no material comes out
The most efficient way to apply FLUID FILM in its bulk form is with the use of standard airless paint spraying equipment or an undercoating gun such as FFSG. You would need to check with the Manufacturer of Fluid Film.
Answered by: Bill G Tech Advisor
Date published: 2025-03-27
Will the gun and wands work with woolwax?
Asked by: Brian
The gun itself should be fine, but the product would be too viscous to spray through the wands properly.
Answered by: Kelly H
Date published: 2023-12-12
Will this gun work with the rust encapsulated platinum
Asked by: Josh
as long as the spray tips ar 1.4 or above it will be fine
Do you have a quick connect option for gun for air hose
Asked by: Dougie
Any standard "Quick Disconnect Coupler" system will work with this.
Answered by: Rick
Date published: 2022-10-20
are the hoses available seperatly
Asked by: bill
Yes we offer several hoses as replacement items.
Answered by: Nick BC
Date published: 2024-08-07
Will extension tips for pro undercoating gun work with this one?
Asked by: Dave
The Pro Undercoating extension wands will not work with this undercoating gun. At this time we do not have a replacement but will work on getting them available.
