Yost 760-DI 6 Inch Swivel Head Rotating vise
3 year Warranty Included
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Price for all checked items:
Product Overview:
Description

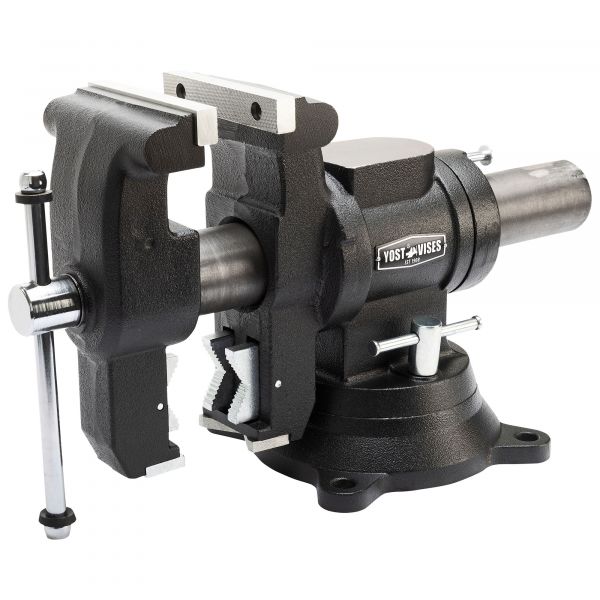

The Yost Rotating Head Multi Jaw Vise is a multifunctional, heavy-duty vise for the DIY enthusiast or small shop. The straight-pull screw and nut design combined with 60,000 psi ductile iron construction results in vises that can generate serious clamping force. Detent-locking, rotating, multi-jaw design makes for unparalleled versatility. Additional features, including the replaceable pipe jaws, interlocking swivel base, and machined anvil work surface all make it the perfect do-it-all vise for your workbench.
Yost Vises has been producing high-quality vises and vise accessories since 1908. We supply our products to both large distributors and individual craftsmen throughout the world ranging from industrial-grade vises, professional-grade vises, workshop-grade vises, light to heavy-duty vises, multifunction vises, welding vises, etc... Our products meet or exceed the Industrial Standard of Federal Specification GGG-V-410A, providing consumers with quality products that last for years at a great price.
Yost 760-DI Rotating Head Multi Jaw Bench Vise Features:
- Constructed of Heavy Duty 60,000 psi Ductile Iron With a Durable Powder Coated Finish
- Equipped with 3 Sets of Replaceable Hardened Steel Jaws
- Parallel Serrated Jaws, Pipe Jaws and V-Jaws for Holding Both Round and Flat Stock
- Vise Head Rotates 360° with Locking at Every 30° or 12 Different Locking Positions
- Vise Body Rotates 360° Using Interlocking V-Grooved Swivel Base and 2 Lockdowns to Lock at Any Position
- Swivel Base Has 4 5/8 Inch Diameter Holes for Securing Vise Base to a Work Bench (fasteners not included)
- Large Built in Anvil and No Pinch Main Screw Handle
- 6 Inch Jaw Width with a 5.9 Inch Opening and Weighs 75.8 lbs.
Warranty
Specifications
| Manufactures Part Number: | 72800 |
| Model Number: | 760-DI |
| Jaw Width (nominal inches): | 6 |
| V-Jaw Width Front (nominal inches): | 2 |
| V-Jaw Width Back (nominal inches): | 3 |
| Jaw Opening (nominal inches): | 5.9 |
| Throat Depth (nominal inches): | 4.31 |
| Min Pipe Capacity (nominal inches): | 3/4 |
| Max Pipe Capacity (nominal inches): | 4-5/16 |
| Base: | Swivel |
| Material: | Ductile Iron |
| Vise Weight (lbs): | 75.8 |
In the Box
Contents
Guides & Accessories
Instructions
Click here to download product instructions
