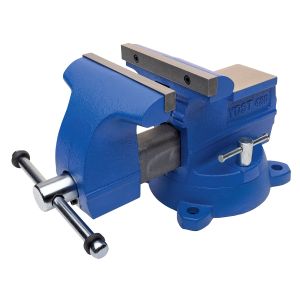

Yost Model 480 8 Inch Utility Bench Vise Apprentice Series

Product Overview:

Description

The Yost 480 8-inch utility combination pipe and bench vise is made from a 30,000 PSI cast grey iron with a steel U-channel bar. Equipped with a large anvil work surface, it also has replaceable hardened steel serrated top jaws and a large pipe capacity permanent serrated pipe jaw.

The Yost Apprentice series utility combination pipe and bench vise has a 360-degree swivel base and mounts to a workbench to provide clamping action for light-duty applications. The 360-degree swivel base featuring (2) lockdowns, adjusts the direction of the jaws for proper placement. Hand-tightening the lock knob on the base secures its position. The vise has a cast iron body with steel U-channel bar for durability and has a flat portion that acts as an anvil and additional work surface. The hardened steel top jaws can be replaced when worn, and the built-in cast iron pipe jaws are grooved for enhanced grip. The jaws draw closer together or farther apart by turning the vise handle clockwise or counterclockwise. This tool Conforms to Fed. Spec. GGG-V-410B Type IV and meets NSN 5120-00-293-0110 standards.

  • 30,000 PSI Cast Grey Iron with Steel U Channel Bar
  • 360° Swivel Base with (2) Lockdowns
  • Replaceable Hardened Steel Serrated (Top) Jaws
  • Permanent Serrated Pipe Jaws
  • Large Pipe Jaw Capacity
  • Large Anvil Work Surface
  • No Pinch Main Screw Handle

Yost Vises has been producing high-quality vises and vise accessories since 1908. We supply our products to both large distributors and individual craftsmen throughout the world ranging from industrial-grade vises, professional-grade vises, workshop-grade vises, light to heavy-duty vises, multifunction vises, welding vises, etc. Our products meet or exceed the Industrial Standard of Federal Specification GGG-V-410A, providing consumers with quality products that last for years at a great price.

Warranty

Yost Warranty Terms

Specifications

Model Number: 480
Jaw Width (nominal inches): 8
Jaw Opening (nominal inches): 7.5
Throat Depth (nominal inches): 4.5
Min Pipe Capacity (nominal inches): 0.125
Max Pipe Capacity (nominal inches): 3
Base: Swivel
Material: Cast Iron with Steel U Channel Bar
NSN: No
Packaging Dimensions: 20 inches x 11 inches x 11 inches
Shipping Weight (lbs): 80
Country of Origin: China

In the Box

Contents

(1) Yost Model 480 8 Inch Utility Bench Vise Apprentice Series

Guides & Accessories

Instructions

Prints

Serrated Machinist Jaws
