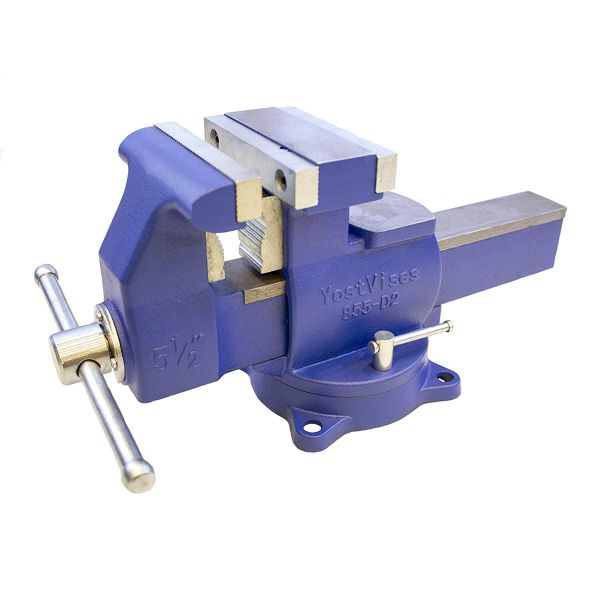

Yost Model 855-D2 5-1/2 Inch Multi-Purpose Reversible Combination Vise with Swivel Base

Product Overview:

Description

The Yost Vises 855-D2 Industrial Grade Reversible Vise is designed for mechanics that need a vise with large jaw opening capabilities. This updated design of our reversible vise is now stronger than ever! Built from 60, 000 PSI ductile iron, this vise is 2x stronger than competitor models. A redesigned nut and screw allow for increased clamping force. For unmatched versatility this vise features a reversible main jaw. When the front jaw is reversed, the jaw capacity is increased to a phenomenal 9-3/4". 5. 5" Serrated Jaws are designed to grip products securely. The two machined anvils provide a smooth work surface for forming or shaping. The 360 degree swivel base allows the vise to be rotated to any position for easy operation. The base features two lockdowns that will prevent the vise from rotating once the lockdowns have been tightened. The base also features four mounting tabs to secure the vise to the workbench (mounting hardware not included). This tool Conforms to Fed. Spec. GGG-V-410B Type IV and meets NSN 5120-00-293-0110 standards.

  • Heavy Duty Ductile Iron Castings
  • 5.5" Wide Jaws
  • 6" Jaw Opening (9-3/4" when reversed)
  • 3.75" Throat Depth (2.75" when reversed)
  • 1/8" – 3" Pipe Jaw Capacity
  • 360 degree swivel base
  • Gear type locking system with double lock down bolts
  • Two Anvils: Lower: 3.5 Inch x 3.7 Inch Upper: 5.2 Inch x 2.5 Inch

Yost Vises has been producing high-quality vises and vise accessories since 1908. We supply our products to both large distributors and individual craftsmen throughout the world ranging from industrial-grade vises, professional-grade vises, workshop-grade vises, light to heavy-duty vises, multifunction vises, welding vises, etc. Our products meet or exceed the Industrial Standard of Federal Specification GGG-V-410A, providing consumers with quality products that last for years at a great price.

Warranty

Yost Warranty Terms

Specifications

Model Number: 855-D2
Jaw Width (nominal inches): 5.5
Jaw Opening (nominal inches): 6 (Reversed = 9.75)
Throat Depth (nominal inches): 3.75 (Reversed = 2.75)
Min Pipe Capacity (nominal inches): 0.125
Max Pipe Capacity (nominal inches): 3
Base: Swivel
Material: Ductile Iron
NSN: -
Packaging Dimensions: 16 inches x 9.5 inches x 9.5 inches
Shipping Weight (lbs): 38
Country of Origin: China

In the Box

Contents

(1) Yost Model 855-D2 5-1/2 Inch Multi-Purpose Reversible Combination Vise
