Item # 32549 BRAND: Eastwood

Eastwood 1/2 inch Round Bead Roll Die Kit

Easily Create a 1/2" Bead Profile in Sheet Metal. Fits motorized bead rollers with a 3/4" shaft.
Easily Create a 1/2" Bead Profile in Sheet Metal. Fits motorized bead rollers with a 3/4" shaft.
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 29.54ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$80.99
Loading...
Loading...
Save for Later
Easily Create a 1/2" Bead Profile in Sheet Metal. Fits motorized bead rollers with a 3/4" shaft.

1 year Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
Eastwood 1/2 inch Round Bead Roll Die Kit

Product Overview:

Description

Increase the capability of your motorized bead roller with these new optional dies.Capable of forming up to 18 gauge steel and 16 gauge aluminum the are designed to fit the Eastwood motorized bead roller as well as other motorized bead rollers with 3/4" shafts and 2.5" shaft spacing. These dies are NOT compatible with plate style bead rollers that have 22MM Shafts.

Warranty

1 Year

Specifications

1/2" Bead Profile Designed for Fabricated Motorized Bead Rollers with 3/4" Diameter Shafts and 2.5" Shaft spacing Works with up to 18 Ga Steel Works with up to 16 Ga Aluminum

FAQs

What size Bead Roller Will These Fit? These will fit bead rollers that have 3/4" Shafts and 2.5" Shaft Spacing

Shipping & Handling

Ships via UPS

In the Box

Contents

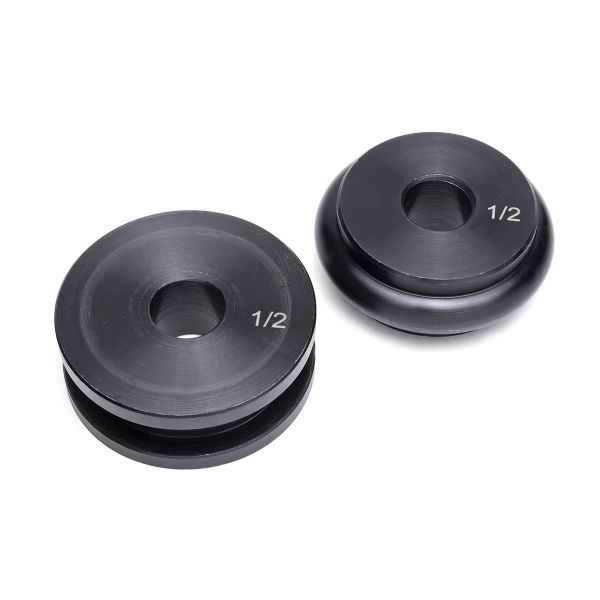

(1) 1/2" Male Bead Die (1) 1/2" Female Bead Die

Guides & Accessories

Safety Information

Wear work gloves and protective clothing. Sheet metal will often have sharp edges which can cause cuts to hands arms and face. Keep fingers and hands away from moving parts when operating.

Application Tips

N/A

Reviews

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 3.6ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

Questions & Answers

Is there a picture? Not sure if a round over or center round style from description.

Asked by: JimB
No picture that I found https://youtu.be/hGkOitcH1QU?t=2 Increase the capability of your motorized bead roller with these new optional dies.Capable of forming up to 18 gauge steel and 16 gauge aluminum the are designed to fit the Eastwood motorized bead roller as well as other motorized bead rollers with 3/4" shafts and 2.5" shaft spacing. These dies are NOT compatible with plate style bead rollers that have 22MM Shafts.
Answered by: GeneB
Date published: 2023-08-24

The inside diameter is 3/4", but what is the outside diameter of each piece?

Asked by: jairslv
Their overall outside diameters are Ø69mm.
Answered by: Nick BC
Date published: 2022-06-22
  • y_2024, m_2, d_19, h_10CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_2
  • loc_en_US, sid_32549, prod, sort_[SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 36.63ms
  • QUESTIONS, PRODUCT
Glossary
Unsure of a term? Look it up on our Glossary powered by The Garage
Eastwood 1/2 inch Round Bead Roll Die Kit
$80.99
In Stock
