Eastwood 37 Deg Flare Die Set for 25304 is rated 4.4 out of 5 by 22.
Rated 5 out of 5 by from Nice addition to the flaring tool. I bought this along with my purchase of the tool, nice to be able to cover all 45 and JIC flares. Changeover is very easy, just pop off one and pop on the other.
Date published: 2017-06-10
Rated 5 out of 5 by from Perfect tool. Very needed with primary flaring tool from Eastwood. Superb quality.
Date published: 2017-01-22
Rated 5 out of 5 by from Flare Just what I hoped it would be. Solid easy to use. Fast shipping love it
Date published: 2016-04-27
  • y_2018, m_4, d_23, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_22
  • loc_en_US, sid_30005, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood

Will this machine flare a 37* single flare on stainless material .035 thick?

Asked by: Lonewati
This tool will certainly be able to flare single flare on stainless .035 wall.
Answered by: Scott C
Date published: 2018-04-02

I have K Tool Professional brake flaring tool 70081 the tool and Eastwood tool resemble each other a lot. I would like to have 37-degree tool also could you please advise if the pieces would work with my tool thanks ...Go, Eastwood, I love my airbrush

Asked by: MustangBWC
We have never tested for compatibility. I would be a shot in the dark as to if it would work.
Answered by: Scott C
Date published: 2018-01-19

Why does the tool have two steps for 37degree flares,which makes them double? I thought 37 degree flares were single with the tube nut sleeve to support them. Can you make a single 37 degree flare with this tool?

Asked by: T Bucket
This tool just gives you many options for your flare. You can product single, double , and bubble flare with this tool.
Answered by: S Church
Date published: 2018-01-03

Can I use these dies to make a single flares? as opposed to a double flair.

Asked by: Murlin
You certainly can. Just use operation zero to flush everything up. Then with the die blocks still somewhat loose use Operation 1 to press the line the proper depth into the dies. Now tighten the die blocks in and use Operation 2 for the perfect single flare.
Answered by: S Church
Date published: 2018-01-03

What is the largest wall thickness that this flare set can accommodate? Can it double flare 5052-0 0.049 wall tubing?

Asked by: KMrgn
The thickest wall recommend using with the flare tool is .032. If you go to much thicker the tool can not flare correctly due to the room in the die.
Answered by: S Church
Date published: 2018-01-03

do you have any tool to flare larger tubing 1/2 5/8 3/4 with the 37 Deg flare?

Asked by: Poisson
Unfortunately we do not have any larger dies
Answered by: SeanA
Date published: 2018-01-03

do you need this to make flares on stainless steel brake lines

Asked by: ed b
Yes, this tool will work well on stainless lines.
Answered by: MikeL
Date published: 2018-01-03

how much does it weighs

Asked by: Luquiacha
1.95Lbs
Answered by: SeanA
Date published: 2018-01-03
  • y_2018, m_4, d_23, h_9CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_8
  • loc_en_US, sid_30005, prod, sort_[SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood

Eastwood 37 Deg Flare Die Set for 25304

Item #30005 Brand: Eastwood

Use with our Pro Flare Tool 25304 to create 37-degree flares

In stock

Only $99.99



Details

Add these 37-degree Flare Dies to our Pro Brake Tubing Flaring Tool so you can do even more.

  • Put 37-degree flares on 3/16", 1/4", 5/16" and 3/8" tubing
  • 7 punch sizes, turret-style
  • 4 die blocks

If you have our 25304 Professional Brake Tubing Flaring Tool, you can already easily produce 45-degree flares. But add this flare die kit and you'll also be able to create the 37-degree flares used in many custom, hydraulic and military applications where AN- or JIC-type fittings are used. It's a "must have" accessory for custom plumbing and line-fitting on your street rod or hot rod.


More info...

About Eastwood 37 Deg Flare Die Set for 25304

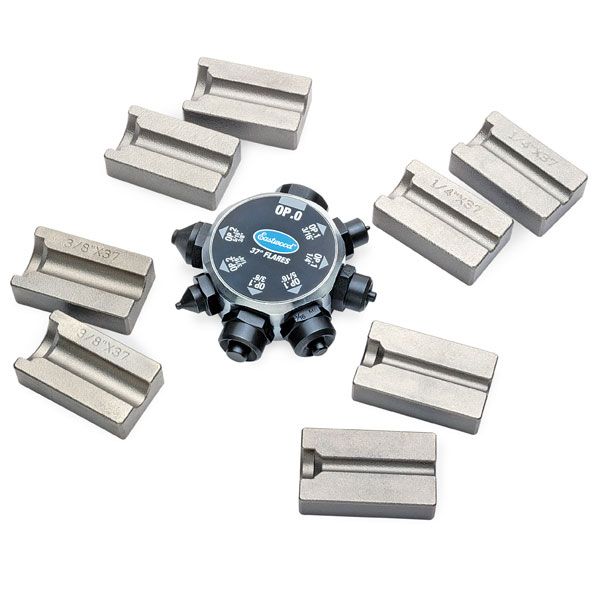

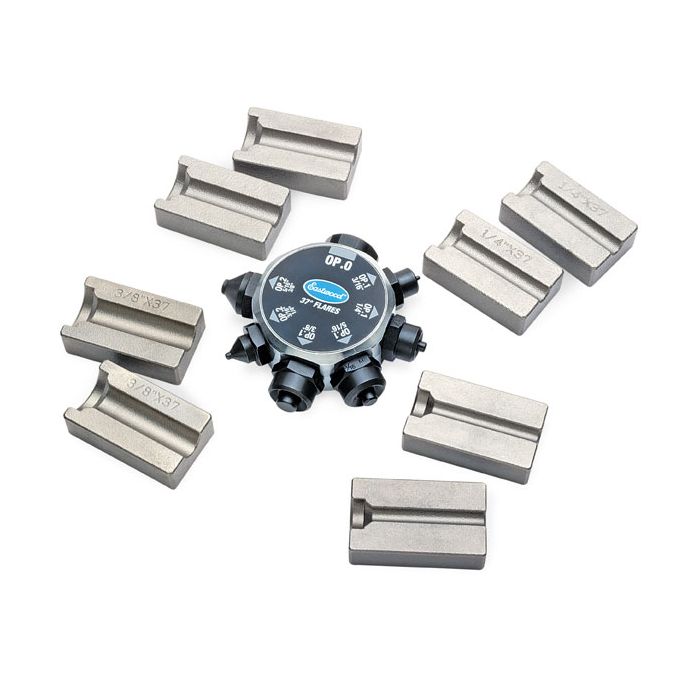

This is an accessory kit to our 25304 Professional Brake Tubing Flaring Tool, and works on 3/16", 1/4", 5/16" and 3/8" tubing. Kit includes 7 punches on a turret and 4 die blocks to quickly convert your 25304 to create 37-degree flares. (Dies you got with your 25304 only create 45-degree flares.) 37-degree flares are used in many custom, hydraulic and military applications where AN- or JIC-type fittings are used.


Contents

7 Punch Sizes, Turret-Style
4 Die Blocks
Detailed Instructions
: 3/16, 1/4, 5/16 & 3/8"


Safety

Always wear ANSI approved eye protection.


Warranty

Made in Taiwan. 1 Year Warranty.


Application

Works with the 25304 Professional Brake Flare Tool.
