Item # 20645 BRAND: Eastwood

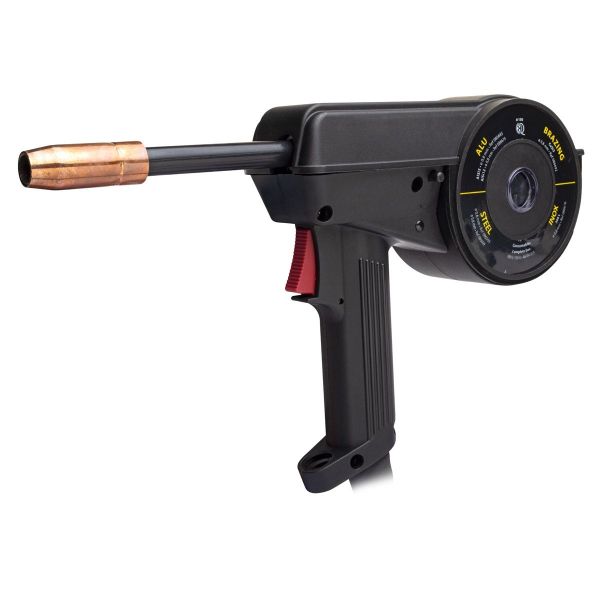

Eastwood MP140i MP200i Spool Gun

Easily Weld aluminum with your MP 140/200i
Easily Weld aluminum with your MP 140/200i
Eastwood MP140i MP200i Spool Gun is rated 4.0 out of 5 by 2.
  • y_2024, m_3, d_16, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_1
  • loc_en_US, sid_20645, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 38.21ms
  • REVIEWS, PRODUCT
$384.99
Loading...
Loading...
Save for Later
Easily Weld aluminum with your MP 140/200i

1 year Warranty Included

Add an Eastwood Service Plan for additional protection?

Learn More
The Eastwood Service Plan Protect your purchase with comprehensive coverage 24/7 support No deductibles, no additional fees Parts & labor costs included Transferable coverage and more

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
Eastwood MP140i MP200i Spool Gun

Product Overview:

Description

The Eastwood Elite Series Spool Gun instantly turns your MP140i (20559) or MP200i (20569) steel welder into one that can quickly weld aluminum, too. Simply attach the spool gun using a standard dinse connector and you can then use your multi-process welder on aluminum up to ¼-inch thick. The gun works with 0.030-0.035” aluminum wire and comes with two 0.030” contact tips plus a hex key for tightening it. Get a three-year warranty and lifetime technical support when you order from Eastwood.

Warranty

3 Year Eastwood Warranty

Specifications

Simple Plug and Play connection requires no tools
160 Amp Continuous Rated
Weld up to 1/4" aluminum quickly and easily.

In the Box

Contents

Spool Gun (with 0.030” Contact Tip installed)
(1) Spare Contact Tip, 0.030”
(1) Hex Key, 4mm

Guides & Accessories

Safety Information

Always wear a minimum #10 shade helmet, leather welding gloves, long-sleeve shirt and long pants.

Reviews

Rated 3 out of 5 by from Skoolie/ overlanding Have not used it much yet, set it up and tried it out. The guide gets you close but you will need to fine tune. This was using 100%argon shielding gas
Date published: 2021-07-28
  • y_2024, m_3, d_16, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_1
  • loc_en_US, sid_20645, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 11.02ms
  • REVIEWS, PRODUCT

Questions & Answers

What are the connector pin definitions and function and the drive motor power? In other words; which pins are for the trigger and which are for the drive motor power and what is the voltage range for the drive motor and is it AC or DC or universal?

Asked by: Buck_the_EE
The drive motor would be DC powered. We do not have additional specifications or a pin out for the connector, sorry.
Answered by: Nick BC
Date published: 2023-05-08

Does spool gun fit eastwood 130 welder?

Asked by: Ricky
No, the later MIG 135 or MIG 140 need the #20172 spool gun. If your MIG 135 is older and has a fully plastic connector you need the #13898.
Answered by: Nick BC
Date published: 2023-05-08

Do you have a less expensive alternative to the mp140i spool gun? I own the machine but for my projects it was s to much...

Asked by: Roberto
No, this is the only spool gun we offer that is compatible with the Elite MP140i and MP200i.
Answered by: Nick BC
Date published: 2023-02-11

will this Eastwood MP140i MP200i Spool Gun work with your Eastwood Elite MP200i Multi Process Welder and what gauge wire can it be used to weld anodized steel 14ga with this spool gun

Asked by: lightfoot
The 20645 is able to be used on the 20569 with no issues but is designed for usage with aluminum wire.
Answered by: ZachC
Date published: 2021-12-06

Will this gun work with a Miller 250X 30a Welder

Asked by: Lori
We only product test our torches compatibility with our welders.
Answered by: ZachC
Date published: 2022-04-07

What is the part number for an Al spool that works with this spool gun?

Asked by: Six3vette

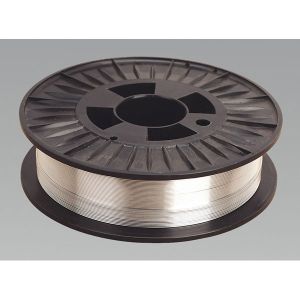

Our aluminum spool works well with that gun, #12084.
Answered by: Caleb M
Date published: 2021-08-02

Why is this spool gun so much more expensive than the others that eastwood sells?

Asked by: Linc
The (20645) Spool gun is a proprietary Spool gun designed specifically for the MP140i and the MP200i specifically. It is a new improved design with special fittings and quality materials throughout.
Answered by: vince
Date published: 2021-08-07

Will it work with old version MP200i ( not Elite version)? If no, what kind of spool do i need to use? Thanks in advance.

Asked by: Alex
The spool gun for the old MP200i will need to be ordered via phone with our Sales team by calling 800-343-9353 and asking to purchase # 20518.
Answered by: Kelly H
Date published: 2021-05-02
