Item # 31649 BRAND: Eastwood

3/4 Inch X 20-1/2 Inch Pro Mini Angle Belt Sander

Adjustable angle and articulated sanding arm
Adjustable angle and articulated sanding arm
3/4 Inch X 20-1/2 Inch Pro Mini Angle Belt Sander is rated 4.3 out of 5 by 8.
  • y_2023, m_5, d_27, h_23
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.35
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_7
  • loc_en_US, sid_31649, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 19.04ms
  • REVIEWS, PRODUCT
Reg. $199.99 Sale $166.97 Save $33.02
Loading...
Loading...
Save for Later
Adjustable angle and articulated sanding arm

1 year Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support

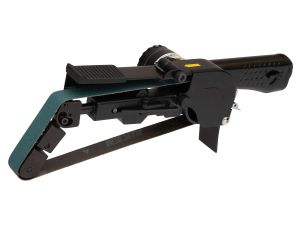

3/4 Inch X 20-1/2 Inch Pro Mini Angle Belt Sander
main product photo
Frequently Bought Together

Price for all checked items:

Product Overview:

Description

Eastwood Pro Mini Angle Belt Sander 3/4

The Eastwood Pro Mini Angle Belt Sander Features:

  • 3/4" x 20.5" Paper size for excellent paint removal, smoothing, and rust removal in limited space applications
  • Great for surface conditioning of tubes and rounded surfaces
  • Air outlet located in the back of the handle to direct exhaust air away from your work area
  • Quick change sanding belt replacement makes for high tool up time
  • Adjustable sanding arm provides increased versatility in low clearance situations

EASTWOOD PRO MINI ANGLE BELT SANDER 3/4" X 20-1/2"

The Eastwood 3/4" X 20-1/2" Pro Mini Angle Belt Sander is compact and powerful with an adjustable angle and articulated sanding arm for ease in grinding and sanding in the most difficult to access areas.

Eastwood Pro Mini Angle Belt Sander 3/4
Eastwood Pro Mini Angle Belt Sander
Eastwood Pro Mini Angle Belt Sander
Eastwood Pro Mini Angle Belt Sander
Eastwood Pro Mini Angle Belt Sander

It features a sealed ball bearing drive assembly for smooth, low vibration operation and long life. The precision diecast housing provides a solid foundation and offers ergonomic, one handed operation controlled by a convenient handle mounted paddle trigger.

Warranty

1 Year

Specifications

RPM: 17,000 free speed
Operating Air Pressure: 90 psi
Max Air Consumption: 8 CFM [198 l/m] @90 PSI [6.2 bar]
Inlet thread size: 120 VAC 60 Hz
Input Power Cord Length: 1/4” FNPT
Required Belt Size: 3/4” x 20-1/2”, minimum 17,000 RPM
Belt Articulation Angle Range: 50°

In the Box

Contents

  • Pro Mini Angle Belt Sander
  • 4 mm Hex-Key Wrench
  • 3 mm Hex Key Wrench
  • 80 Grit, 3/4” x 20-1/2” Abrasive Belt
  • 100 Grit, 3/4” x 20-1/2” Abrasive Belt
  • 1/4” NPT Air Inlet Coupler

Guides & Accessories

Instructions

Click here for product instructions

Safety Information

  • Thoroughly read and understand these product instructions before using this tool. Failure to follow all warnings can result in tool damage or serious physical injury.


Click here to see safety products

Accessories

Replacement Sanding Belts

Eastwood 3/4x20-1/2 Zirconia Abrasive Belts
Eastwood 3/4x20-1/2 Aluminum Oxide Abrasive Belts

Application Tips



Reviews

Rated 5 out of 5 by from . this works better than any other one I have used and the other one I have is from Dynabrade was around $600.00.
Date published: 2021-12-17
Rated 5 out of 5 by from Air belt sander This is a great addition, for any tool junkie. Doesn’t use a lot of air.
Date published: 2021-09-26
Rated 5 out of 5 by from Sharpen Mower Blade on Machine - Professional User We are a Professional, full service mower repair facility, and we use these to sharpen mower blades on the machine. you need to be careful regarding fuel, because sparks and fuel dont mix. That aside, these are the best tool we have ever used to sharpen mower blades in this way. we use a 36 grit belt, and it removes material rapidly. you can sharpen a blade you might otherwise throw out. if a blade is really bad, we remove it from the machine, and use the same sander to make the edge flat again, and then can rapidly put a new edge on with the same tool. if you are looking to sharpen blades on the machine, this is exactly what you are looking for.
Date published: 2020-07-11
Rated 5 out of 5 by from Belt Sander Works well. Great for the price. Only issue we had was the tracking screw adjustment...We had to back the screw out (binding) and tweak the tuning fork shaped die casting to get it to track centered.
Date published: 2020-06-17
Rated 5 out of 5 by from bin lookin for this long time I'm a motorcycle builder this solves lots of problems for finishing . it quickly and cleanly takes care of welds and my mess ups, feels solid and is hi quality.have been loking for this type of tool for along time .
Date published: 2019-01-28
Rated 2 out of 5 by from Cheap screws Ok quality. The belt adjustment screw snapped off during the first use.
Date published: 2022-02-04
Rated 2 out of 5 by from Belt Sander Bought a few months ago. Worked well for awhile then we had an issue with belts breaking. Turns out the small guide roller (8.8mm diameter) spins on a roll pin (no bearing) and gets so hot it melts the adhesive in the belts and they break. The roller also seizes up with the heat and melted belt glue, The guide alignment is a bit iffy and the upper die casting is not very strong and is easily bent. OK tool for occasional use but a bit under-engineered for regular use. Best buy an expensive Dynabrade if you do metal work for a living
Date published: 2021-01-21
  • y_2023, m_5, d_27, h_23
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.35
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_7
  • loc_en_US, sid_31649, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 18.73ms
  • REVIEWS, PRODUCT

Questions & Answers

it will work great if you can find 600 grit belt. chuck up a crankshaft ina lathe and spin while grindind and it will buff the journals to a bright shine

Asked by: jd2669
We currently do not offer the 600 grit belts.
Answered by: John S
Date published: 2020-07-16

Will this tool sharpen mower blades

Asked by: Coldh20Bob
We purchased these specifically for sharpening mower blades. We had been using the worksharp tool grinding attachment until they discontinued it. we use these type of tools to sharpen mower blades on the machine. you want to use the coarsest grit you can get (24-36) watch for fuel - the sparks can ignite it.
Answered by: Modern Mower
Date published: 2020-06-29

I am looking to grind down the internal weld seam on 5 inch (3/16 wall) square tubing. does the height and width of the product exceed this dimension?

Asked by: Derek
This should be able to fit inside of a 5" square piece of tubing. The sander has a 7" reach so it could do a 14" long piece of tubing.
Answered by: MattM
Date published: 2020-06-05

Is this available to buy in the Uk if so where from

Asked by: Westy
Here is a link to our current International distributors https://www.eastwood.com/international-distributors/ They will need to be contacted directly regarding their pricing and availability. We do not have a listing of each particular one's inventory.
Answered by: Kelly H
Date published: 2020-05-17

Where do you find replacement belts for the pro mini angle sander? 3/4x201/2

Asked by: Tommy
We currently do not sell replacement belts. They can be found readily available by ordering offline after doing a Google Search. Amazon seems to have numerous options as well: https://www.amazon.com/Inch-Aluminum-Oxide-Sanding-Belts/dp/B00DH057YO
Answered by: Kelly H
Date published: 2020-12-04
