What's the operating temperature range? I'm looking for one that will function to about -20F

Asked by: Schuny
This unit is designed as a home hobbyist filter unit, not for extreme temp usage.
Answered by: MikeL
Date published: 2015-03-14

will regulator this handle 175 psi line pressure,,output may be limited to 130 to feed a plasma cutter or do i need something more heavy duty

Asked by: joee
This regulator will handle 125 psi max. You'll need to turn down the pressure output at your compressor and then fine tune with this regulator for your air tools. Even with large two-stage compressors, there's very rarely a need to run anything near as high as their typical maximum output of 175 psi, so turning the pressure output down to about 120 psi will not hurt the performance of any of your air tools which normally run on ~90 psi. Plasma cutters usually run much lower pressure, 60 psi on our units for example.
Answered by: MikeL
Date published: 2014-10-07
  • 2016-06-25T09:39CST
  • bvseo_cps, prod_bvqa, vn_cps_3.2.1
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_2
  • loc_en_US, sid_20599, PRD, sort_recentAnswersFirst
  • clientName_eastwood

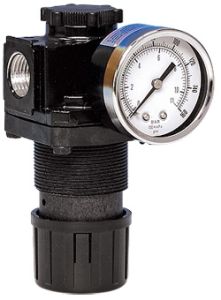

Eastwood Regulator w/Gauge 1/2 NPT

Item #20599 Brand: Eastwood

USA-made unit measures up to
125 psi; maximum flow 100 cfm

Details

This is a high quality and accurate regulator and that?s why we include it in our air management systems. This US built unit features a reinforced diaphragm for repeated accuracy, micro finished brass seat to ensure no reduced pressure creep. Three- position non rising adjustment knob; push to lock, pull to adjust, detach to make tamper resistant. High SCFM flow due to efficient aspiration. Max 125 psi, Max flow 100 cfm 1/2" NPT. MADE IN USA.

More info...

About Eastwood Regulator w/Gauge 1/2 NPT

This is a high quality and accurate regulator and that?s why we include it in our air management systems. This US built unit features a reinforced diaphragm for repeated accuracy, micro finished brass seat to ensure no reduced pressure creep. Three- position non rising adjustment knob; push to lock, pull to adjust, detach to make tamper resistant. High SCFM flow due to efficient aspiration. Max 125 psi, Max flow 100 cfm 1/2" NPT. MADE IN USA.
