Item # 31139 BRAND: Eastwood

Door Hinge Pin Puller

Replace worn hinge pins to help
restore proper door alignment
Replace worn hinge pins to help
restore proper door alignment
Eastwood Hotcoat Powder Coat Off White 10 Lb is rated 3.7 out of 5 by 19.
  • y_2024, m_3, d_18, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_19
  • loc_en_US, sid_31139, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 5.73ms
  • REVIEWS, PRODUCT
$47.99
Loading...
Save for Later
Replace worn hinge pins to help
restore proper door alignment

90 day Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
Door Hinge Pin Puller

Product Overview:

Description

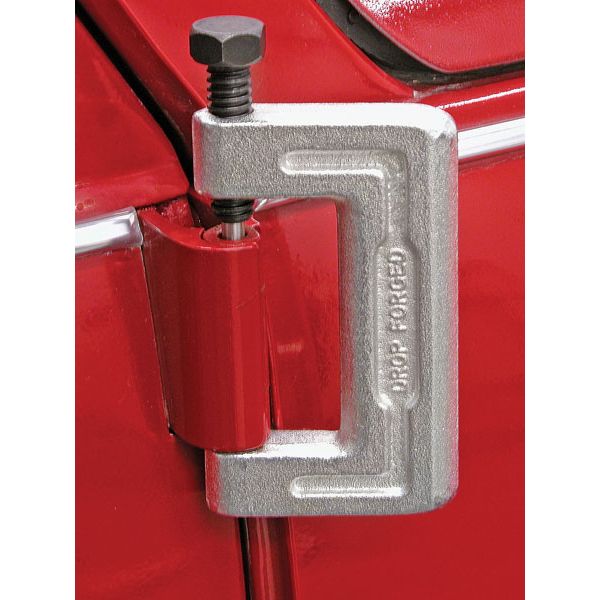

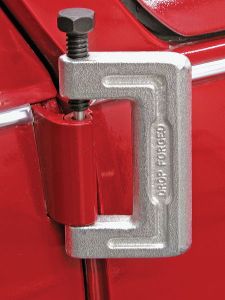

Hinge Pin Remover. Replace worn hinge pins to help restore proper door alignment. This heavy duty hinge pin remover/installer fits a wide range of antique and modern hinges up to 2-7/8" wide.Cast iron frame. Features a strong acme threaded bolt with 3 case hardened 18-8 stainless extension pins measuring (1", 1-1/2", and 2") exerts enough pressure to remove most pins. Designed only for Fords. Limited 1-year manufacturer's warranty. Removes hinge pins up to 7/16" (0.437"). Tool Clearance over 1/2" (0.530").

In the Box

Contents

Cast iron frame. Features a strong acme threaded bolt with 3 case hardened 18-8 stainless extension pins measuring (1", 1 1/2", and 2") and instructions.

Guides & Accessories

Safety Information

Always follow all instructions and warnings and wear proper eye, ear, skin and respiratory protection.

Accessories

Eastwood Door Hinge Pin Puller Removal Tool Kit Heavy-Duty Forged Steel Body

Application Tips

Fits A Wide Range Of Antique And Modern Hinges Up To 2-7/8" Wide

Reviews

Rated 5 out of 5 by from Works on 62 VW Bus After it came in the mail, I had the door pin out in 5 min.
Date published: 2020-05-16
Rated 5 out of 5 by from Real nice product How about this to use on a door my Volkswagen Beetle I had to replace the bolt and got me a Allen head bolt I drilled it encounters I could just lock the bolt came in it called it get me closer to the door panel works great pops right out can sign up more
Date published: 2018-12-13
Rated 5 out of 5 by from Great tool. Simple to use I bought this last month. I'm restoring a 1967. Vw bus and I needed to get the door hinges off without bending or damaging the door. Right out of the box. Read directions. Clamped it on and about 1 minute later the door was apart. The best thing similar tools just for vw s are selling for 400 bucks this one was around 30. Do the job right. Get eastwood.
Date published: 2018-07-05
Rated 5 out of 5 by from worked great I used it on my 1949 ford F1 truck tried everything to get the pins out...this tool removed them without any issues
Date published: 2016-01-21
Rated 5 out of 5 by from Worked like a charm!! Removed the door hinge pins of a 1953 Beetle, the doors where removed from the car chassis/body so i didn't face any problems with clearance for the wrench to turn the bolt. For early Beetles you have to use tis tool upside down making it difficult to screw the bolt, was skeptical in buying this tool as there is no photo/image of the hole that the pin passes through, luckily there is enough space to come out.
Date published: 2015-05-05
Rated 4 out of 5 by from Works with door off on vw bug. Head of bolt scuffs the door. The bolt need to be replaced with an Allen key or ground down to fit vw bug.
Date published: 2018-12-31
Rated 4 out of 5 by from Effective for Jeep XJ Successfully removed hinge pins from 1995 Jeep Cherokee. The pins are difficult to get out and the hardened shafts on the tool did mushroom some but ultimately the pin came out. Don't know how I would have removed pins without this tool.
Date published: 2015-08-28
Rated 4 out of 5 by from Well made heavy duty Put this tool to use as soon as it arrived ... a real challenge, my hinge pins had never been replaced on my 49 F-1 project truck and were not about to budge. Three days of soaking and heating resulted in two pins successfully removed ... the other two were so tight that the push pins distorted as pressure was applied. I replaced them with true hardened pins and was then able to begin moving the hinge pins. Bottom line, this is a really good tool that needs to be upgraded with hardened push pins to get the tough jobs done right.
Date published: 2015-02-06
  • y_2024, m_3, d_18, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_19
  • loc_en_US, sid_31139, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 4.1ms
  • REVIEWS, PRODUCT

Questions & Answers

Will this tool work on a 1946 Chevy 1/2 ton Pickup Truck? Which way does the door pin come out, the top or bottom?

Asked by: jcb2431
The measurements of this tool are: The opening is 3 3/4" high and 1 1/2" deep. The diameter of the pin that pushes is 3/8" This should allow you to see if it works on your vehicle. We can not go by specific make, model, etc. The pin is intended to be pushed through the bottom but can be reversed if needed.
Answered by: Kelly H
Date published: 2022-07-19

Will this work on a 2002 Wrangler TJ

Asked by: Ssnoop
This item will work with hinges up to 2-7/8" wide
Answered by: Kelley M
Date published: 2021-09-21

Does this work on 66 VW Beetle?

Asked by: Borna430
With the door off the car, this tool can be used on a VW Bug door. Please be aware that the picture is showing the incorrect use of this tool on a VW Bug - the pin needs to be pushed out the top on a Bug.
Answered by: Kelly H
Date published: 2022-12-05

will this work on 1999 tahoe barn doors

Asked by: charles
The measurements of this tool are: The opening is 3 3/4" high and 1 1/2" deep. The diameter of the pin that pushes is 3/8" This should allow you to see if it works on your vehicle. We can not go by specific make, model, etc.
Answered by: Kelly H
Date published: 2021-02-25

What is the bolt head size? I have limited room. I would like to use a socket to turn the tool bolt. Thanks, Hal

Asked by: outdoor guy
The bolt will take a 3/4 size socket.
Answered by: Bob G
Date published: 2019-06-10

What is the diameter of the extension pin??? I need a 5 - 5.5 mm diameter X at least 20 mm long extension. Pin to be removed measures 6.0198 mm diameter. X 15 mm long. What is the thinnest extension pin? Coluld probably get it machined to 5.8- 5.9 mm.

Asked by: msurban
The diameter of the pin that pushes is 3/8".
Answered by: Kelly H
Date published: 2017-12-04

Will this work on a1995 GMC suburban barn door

Asked by: flip5851
The measurements of this tool are: The opening is 3 3/4" high and 1 1/2" deep. The diameter of the pin that pushes is 3/8" This should allow you to see if it works on your vehicle.
Answered by: S Church
Date published: 2019-08-11

will this work in a 99 dodge durango

Asked by: mando60
No, it will not work on a newer yeared vehicles door pin.
Answered by: SeanA
Date published: 2014-12-19
  • y_2024, m_3, d_18, h_10CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_9
  • loc_en_US, sid_31139, prod, sort_[SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 3.9ms
  • QUESTIONS, PRODUCT
Glossary
Unsure of a term? Look it up on our Glossary powered by The Garage
Door Hinge Pin Puller
$47.99
In Stock
