ATK Ford 347 Stroker Engine 410HP Fox Pan Base HP20

Item #22573 Brand:ATK Engines

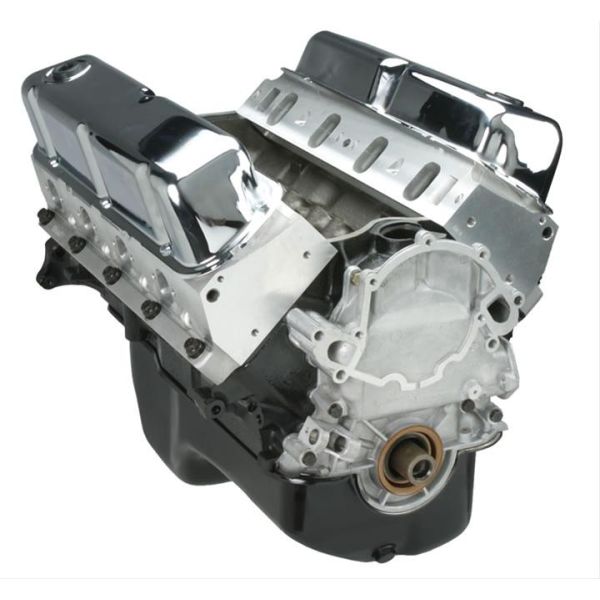

ATK Ford 347 Stroker Engine 410HP Fox Pan Base HP20
ATK HP20 Ford 347 Stroker Engine 410HP
*
$5,039.01
- +
Quantity:
Quantity: close

In stock

payment-icons
OR
Free Shipping on this item
< Back

Details

This ATK Ford 347 Stroker Engine comes with various components for easy installation. This assembled stage 1 engine offers 410 horsepower that will make your automobile faster and powerful. Installed and sealed freeze plugs and oil galley plugs ensure a highly reliable performance.

Engine Specifications:

  • Horsepower: 410
  • Torque: 420 lb/ft
  • Block: Seasoned OE Roller Block
  • Bore/Stroke: 4.040 x 3.400
  • Displacement: 347 C.I.D.
  • Crankshaft: Scat Nodular Iron 3.400" Stroke 1 Piece Externally Balanced 28oz
  • Connecting Rods: Scat 4340 Forged I Beam 5.400 With ARP 8740 Bolts
  • Pistons: Forged Flat Top W Four Valve Reliefs
  • Piston Rings: Moly Rings
  • Compression Ratio: 10.2:1 Compression
  • Camshaft: Hydraulic Roller
  • Camshaft Specifications: 220/224 @050 .512in/.512ex 112LSA
  • Camshaft Bearings: Installed & Clocked to OEM Position
  • Cylinder Heads: Dart Pro 1 aluminum 58cc/170cc 2.02/1.60
  • Freeze Plugs: Brass Installed & Sealed
  • Rocker Arms: Billet Aluminum 1.6 Full Roller
  • Oil Galley Plugs: Installed & Sealed
  • Oil Pan: OE 5qt. Dual Sump Fox body
  • Weight: 350

ATK specializes in muscle. With the highest quality internal parts and Dyno Proven combinations of every engine built, ATK is able to add the most bang for your buck and back it up with an industry leading warranty.



Don't forget the engine paint!
Engine Paint


More info...

Contents

ATK High Performance Ford 347 Stroker 410 HP Stage 1 Long Block Crate Engines


Specifications

Engine Information:

• Oil: 10W30
• Oil Filter: Wix or K&N Recommended Per Your Application
• Fuel Delivery: Quick Fuel Carburetor 680cfm #HR-680-VS
• Intake Manifold: Edelbrock Performer RPM Dual Plane #7121
• Spark Plugs: Autolite #3923
• Spark Plug Gap: .035"
• Harmonic Balancer/Damper: Professional Products Externally Balanced 28oz Dual bolt pattern #80006
• Flex Plate / Flywheel: Externally Balanced 164 Tooth
• Timing: 34-36 Degrees Total
• Water Pump: Reverse Rotation Left Hand Inlet
• Firing Order: 1 3 7 2 6 5 4 8
• Exhuast: 1 5/8 Headers
• Fuel Pump: Holley 110GPH Mechanical #12-289-11
• Fuel: 91+ Octane
• Ignition: Pro Billet with Melonized gear
• Automatic Transmission Stall Converter: 2400-2800

Disclaimer: The parts listed are ATK’s recommendations of parts to be used to obtain our power figures listed. Power figures can vary based on parts used by the end user. It is the customer’s responsibility to verify components will work for their application. Some modifications to the vehicle may be required using these and or other aftermarket parts.


Accessories

Recommended Components:

Carburetor: Quick Fuel 680cfm #793-HR-680-VS (vacuum secondary's, electric choke) Distributor: Pro Billet MSD #121-83521 (steel gear) Intake Manifold: Weiand Stealth dual plane #925-8020WND Fuel Pump: Holley Mechanical 110gph #510-12-289-11 Spark Plugs: Autolite #417-3923 Spark Plug Wires: 8mm Water Pump: LH inlet - reverse rotation
