Item #
22556
BRAND: ATK Engines

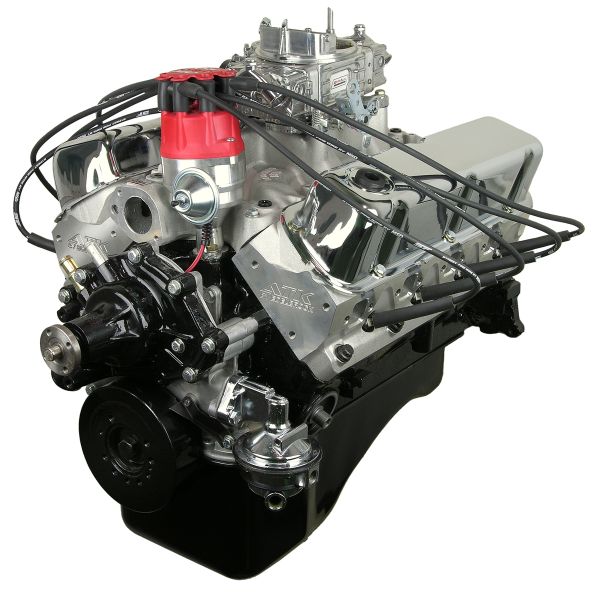

ATK Ford 347 Stroker Engine 450HP Frnt Sump Complete HP100C
ATK HP100C Ford 347 Stroker Engine 450HP
ATK HP100C Ford 347 Stroker Engine 450HP
ATK HP100C Ford 347 Stroker Engine 450HP
Manufacturer Warranty Included
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Product Overview:
Description
With a whopping 450 horsepower, this ATK Ford 347 Stroker Engine is sure to offer superior performance. This crate engine features aluminum cylinder head and sealed freeze plugs for enhanced reliability. This assembled engine includes intake manifold, carburetor, distributor, oil pan, valve covers, timing cover and water pump for quick and convenient installation.
Engine Specifications:
- Horsepower: 450
- Torque: 440 lb/ft
- Block: Seasoned OE Roller Block
- Bore/Stroke: 4.040 x 3.400
- Displacement: 347 C.I.D.
- Crankshaft: Scat Nodular Iron 3.400" Stroke 1 Piece Externally Balanced 28oz
- Connecting Rods: Scat 4340 Forged I Beam 5.400 With ARP 8740 Bolts
- Pistons: Forged Flat Top W Four Valve Reliefs
- Piston Rings: Moly Rings
- Compression Ratio: 10.1:1 Compression
- Camshaft: Hydraulic Roller
- Camshaft Specifications: 231/235 @050 .544in/.565ex 112LSA
- Camshaft Bearings: Installed & Clocked to OEM Position
- Cylinder Heads: Dart Pro 1 Aluminum 58cc/195cc 2.02/1.60
- Freeze Plugs: Brass Installed & Sealed
- Rocker Arms: Billet Aluminum 1.6 Full Roller
- Oil Galley Plugs: Installed & Sealed
- Oil Pan: OE 5qt. Front Sump
- Weight: 430
ATK specializes in muscle. With the highest quality internal parts and Dyno Proven combinations of every engine built, ATK is able to add the most bang for your buck and back it up with an industry leading warranty.
Don't forget the engine paint!
Warranty
Specifications
• Oil: 10W30
• Oil Filter: Wix or K&N Recommended Per Your Application
• Fuel Delivery: Quick Fuel Carburetor 680cfm #HR-680-VS
• Intake Manifold: Edelbrock Air Gap
• Spark Plugs: Autolite #3923
• Spark Plug Gap: .035"
• Harmonic Balancer/Damper: Professional Products Externally Balanced 28oz Dual bolt pattern #80006
• Flex Plate / Flywheel: Externally Balanced 164 Tooth
• Timing: 34-36 Degrees Total
• Water Pump: Standard Rotation Right Hand Inlet
• Firing Order: 1 3 7 2 6 5 4 8
• Exhuast: 1 5/8 Headers
• Fuel Pump: Holley 110GPH Mechanical #12-289-11
• Fuel: 91+ Octane
• Ignition: Pro Billet with Melonized gear
• Automatic Transmission Stall Converter: 2400-2800
Disclaimer: The parts listed are ATK’s recommendations of parts to be used to obtain our power figures listed. Power figures can vary based on parts used by the end user. It is the customer’s responsibility to verify components will work for their application. Some modifications to the vehicle may be required using these and or other aftermarket parts.
Shipping & Handling
In the Box
Contents
Guides & Accessories
Reviews
Questions & Answers
Will this motor fit in a 1987 fullsize bronco xlt
We apologize for the confusion and inconvenience. We would have to advise you to speak directly to the manufacturer as these items drop ship. They can be reached by calling 866-721-2315.
Date published: 2021-08-13
will it fit my 95 mustang Bobgt
We apologize for the confusion and inconvenience. We would have to advise you to speak directly to the manufacturer as these items drop ship. They can be reached by calling 866-721-2315.
Date published: 2021-08-13
Will this motor fix in 1963 Ford Falcon and will a 1985 t5 transmission bolt up to it.
We apologize for the confusion and inconvenience. We would have to advise you to speak directly to the manufacturer as these items drop ship. They can be reached by calling 866-721-2315.
Date published: 2021-08-13
Will this fit my 65 mustang?
We apologize for the confusion and inconvenience. We would have to advise you to speak directly to the manufacturer as these items drop ship. They can be reached by calling 866-721-2315.
Date published: 2021-08-13
Will this engine fit in my 1985 Ford Mustang GT?
We apologize for the confusion and inconvenience. We would have to advise you to speak directly to the manufacturer as these items drop ship. They can be reached by calling 866-721-2315.
Date published: 2021-08-13
Will it fit on my 68 cougar with no problems.... (Has a 4-speed to loader)
We apologize for the confusion and inconvenience. We would have to advise you to speak directly to the manufacturer as these items drop ship. They can be reached by calling 866-721-2315.
Date published: 2021-08-04
Could I put this in a 2012 ford mustang v6
We would have to advise you to contact he manufacturer directly regarding this. They can be reached by calling: 866-721-2315.
Date published: 2021-07-13
Can the 347 stroker fit in my 2012 manual v6
We would have to advise you to contact he manufacturer directly regarding this. They can be reached by calling: 866-721-2315.
Date published: 2021-07-13
ATK Ford 347 Stroker Engine 450HP Frnt Sump Complete HP100C
$9,679.80
In Stock
