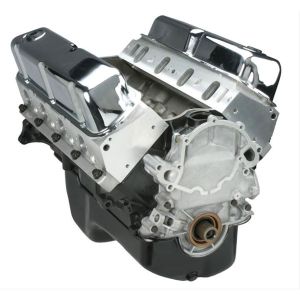

ATK HP09 Ford 351W Base Engine 300HP
HP09 ATK Ford 351W HP 68-97 H.P. Base Engine Long Block
HP09 ATK Ford 351W HP 68-97 H.P. Base Engine Long Block
HP09 ATK Ford 351W HP 68-97 H.P. Base Engine Long Block
None Warranty Included
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description
ATK HP09 Ford 351W Base Engine, or Stage 1 Engine, is designed for those that may have their own component parts already and who also are interested in completing out the build themselves. A Ford base engine typically consists of the following: Short Block, Camshaft, Timing set, Cylinder heads, Valve covers, Timing cover, oil pan, oil pump & pick up tube.
- Horsepower: 300
- Torque: 377 lb/ft
- Block: Seasoned OE roller block 1987-1995
- Bore/Stroke: 4.040 x 3.500
- Displacement: 351 C.I.D.
- Crankshaft: OE 1 piece rear main seal 28oz balance
- Connecting Rods:
- Pistons: Hypereutectic 9:1 compression
- Piston Rings: Moly
- Camshaft: Hydraulic Roller
- Camshaft Specifications: 219/219 @050 .498in/.498ex 112LSA
- Timing Chain: Double roller
- Cylinder Heads: OE #E7TE cast iron 1.77IN/1.46EX
- Rocker Arms: Stamped Steel 1.6 Ratio
- Oil Pan: Rear Sump Truck Pan
- Oil Pump Melling standard volume
ATK specializes in muscle. With the highest quality internal parts and Dyno Proven combinations of every engine built, ATK is able to add the most bang for your buck and back it up with an industry leading warranty. Check out our three stages of performance Ford Engines: they are separated by level of dress.
Warranty
Specifications
• Oil: Conventional / Non Synthetic 10W30
• Oil Filter: Wix or K&N per application
• Timing: 34-36 Degrees with vacuum port plugged on carburetor
• Spark Plug Gap: .035”
• Firing Order: 13726548
• Octane: 91+
• Stall Converter: Stock
• Exhaust: 1 5/8 Headers
Notes: Will not work with Ford factory speed density EFI or F-Series Trucks, Broncos or Vans.
Disclaimer: The parts listed are ATK’s recommendations of parts to be used to obtain our power figures listed. Power figures can vary based on parts used by the end user. It is the customer’s responsibility to verify components will work in their application. Some modifications to the vehicle may be required using these and or other aftermarket parts. ATK reserves the right to substitute parts used in engines if necessary.
Shipping & Handling
There is no core charge for this engine. You will not be required to send a core back to the manufacturer.
In the Box
Contents
Guides & Accessories
Accessories
• Balancer: External balance 28oz
• Flexplate/Flywheel: External balance 28oz
• Intake Manifold: Weiand Stealth dual plane #8023
• Distributor: Pro billet RTR (with upgraded melonite or steel gear)
• Water Pump: Later model LH inlet
• Carburetor: Quick Fuel 680CFM vacuum secondary’s electric choke #HR-680cfm
• Fuel Pump: Holley mechanical 110GPH #12-289-11
• Spark Plugs: Autolite #24
• Spark Plug Wires: 8mm
Reviews
Questions & Answers
Will I have trouble putting one In a 69 Mustang, pulled a 351w out of it but I believe it was out of a bronco
We apologize for the confusion and inconvenience. We would have to advise you to speak directly to the manufacturer as these items drop ship. They can be reached by calling 866-721-2315.
Date published: 2021-08-11
Do the cylinder heads have an oval or square port for the exhaust headers?
It is a square/rectangular port shape. This engines uses OE E5TE/E7TE 62cc 1.77/1.46 Cylinder Heads and needs 1 5/8" headers
Date published: 2020-08-03
ATK HP09 Ford 351W Base Engine 300HP will this engine work in a stock Ford F150 that currently has a 351w with a 4 barrel carburetor
Yes, this will fit for that application.
Date published: 2019-09-19
I would like to put in a Ford bronco ll what will i need.
this would be a custom swap involving adapter brackets that we do not carry. I would recommend working with someone like advanced adapters, Novak conversions, or bronco graveyard
Date published: 2019-08-01
Would this be a direct placement for a 1996 Ford bronco and if not which engine would you suggest
This would not be a direct replacement for your 1996 Bronco, it will not work with the speed density EFI your engine uses. At this time we do not have a suitable replacement engine for you. We apologize for the inconvenience.
Date published: 2020-01-02
It says it has E7 heads, but the picture shows aluminum heads. Are they aluminum E7 heads?
The engine will have cast iron E7 heads.
Date published: 2024-07-06
Does the dipstick tube go in the block?
