Item # 59369 BRAND: Belaire

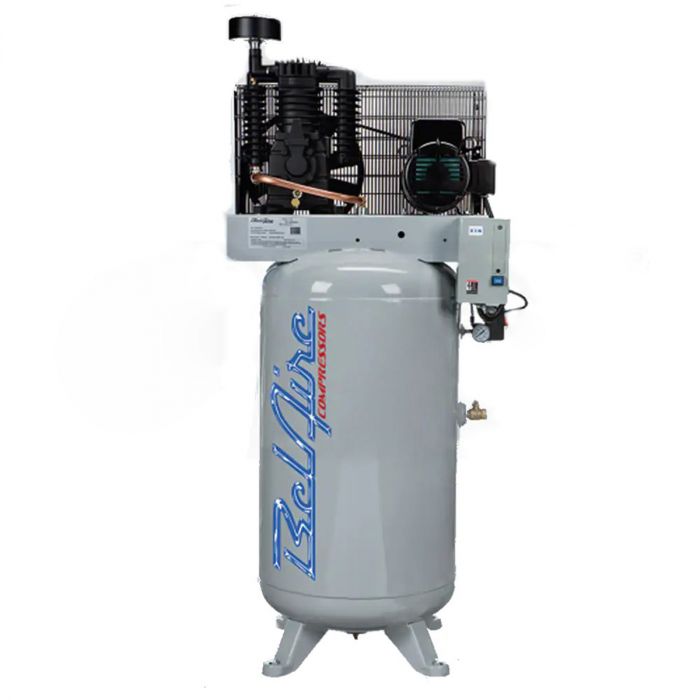

Belaire 7.5 HP 80 Gallon Air Compressor 318VL

7.5-HP 80-Gallon Two-Stage Air Compressor (208-230V 1-Phase) with Magnetic Starter
7.5-HP 80-Gallon Two-Stage Air Compressor (208-230V 1-Phase) with Magnetic Starter
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 39.59ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$3,192.88
Loading...
Loading...
Save for Later
7.5-HP 80-Gallon Two-Stage Air Compressor (208-230V 1-Phase) with Magnetic Starter

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • 90 Day Returns
  • • Lifetime Tech Support
Belaire 7.5 HP 80 Gallon Air Compressor 318VL

Product Overview:

Description

Two-Stage Hybrid Pump

  • Designed for superior quality & extends the life of the pump

Compact Design

  • Ideal for work environments where space is a premium

7.5-HP Single-Phase Motor (208-230V) w/ Magnetic Starter Included

  • Saves $$$, No need to purchase additional starter

80-Gallon ASME Certified Vertical Air Tank

  • 100% factory tested at full pressure

High Flow Belt Guard

  • Fully enclosed design provides added safety

Oil Level Sight Glass

  • Easily check the oil level at any time

Start-Stop Pressure Switch Control

  • Saves time and energy

Stainless Steel Valves

  • Extends the life of the compressor
  • 3/4" air outlet works with many systems

2 Year Factory Warranty

  • Protects your investment

Specifications

Motor
Voltage: 208-230 Volt AC
Phase: 1-Phase
Magnetic Starter: Yes
Amp Draw: 32 Amp
Recommended Breaker: 60 Amp Breaker
Engine
HP: 7.5
Pump
CFM: 25.3
CFM Rated @: 100 PSI
Pump Material: Solid Cast Iron
Max PSI: 175 PSI
Oil Sight Glass: Yes
Pump Type: Two-Stage
After Cooler: Yes
Pump Drive: Belt Drive
Oil Type: Oil Lubricated
Oil System: Splash Lubricated
Pump Low Oil Shut-off: No
Tank
Tank Size: 80 Gallons
Tank Outlet: 3/4 Inch
Electronic Drain Valve: No
Tank Orientation: Vertical
Accessories
Pressure Gauge: Yes
Air Dryer: No
Overview
Weight: 479 Pounds
Certification: ASME
Product Length: 39 Inches
Product Width: 24 Inches
Product Height: 77 Inches
Power Type: Electric
