Item # 59351 BRAND: Belaire

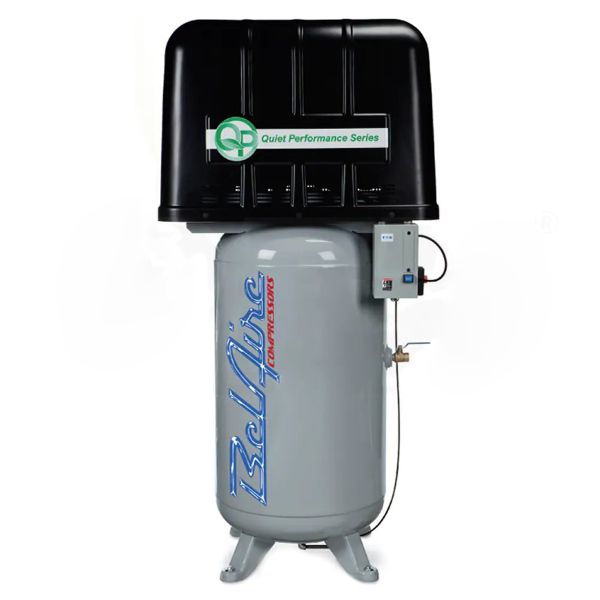

Belaire 7.5 HP 80 Gallon Air Compressor QP338VLE

7.5-HP 80-Gallon Two-Stage Quiet Performance Air Compressor (208-230V 3-Phase)
7.5-HP 80-Gallon Two-Stage Quiet Performance Air Compressor (208-230V 3-Phase)
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 111.57ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$5,004.99
Loading...
Loading...
Save for Later
7.5-HP 80-Gallon Two-Stage Quiet Performance Air Compressor (208-230V 3-Phase)

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Belaire 7.5 HP 80 Gallon Air Compressor QP338VLE

Product Overview:

Description

Quiet Compressor Air System

  • A piston air compressor with the noise level of a rotary screw

Compact Design

  • Ideal for work environments where space is a premium

7.5-HP Three-Phase Motor (208-230V) w/ Magnetic Starter Included

  • Saves $$$, No need to purchase additional starter

Low Sound Enclosure

  • As low as 69 dbA, designed for a greener workplace
  • Less than half the noise of a standard piston compressor

High Strength ABS Enclosure & High Flow Fan

  • Keeps the compressor running cooler and quieter

Cast Iron Cylinder

  • Designed for superior quality & extends the life of the pump

80-Gallon ASME Certified Vertical Air Tank

  • 100% factory tested at full pressure

Added Features

  • Low oil level protection & high temperature shut down
  • Automatic Pressurized Tank Drain (Not Electronic)
  • ASME Safety Valves & Integrated Aftercooler
  • Shipped "wet" so it's ready to use

Specifications

Motor
Voltage: 208-230 Volt AC
Phase: 3-Phase
dBA: 69
Magnetic Starter: Yes
Amp Draw: Consult Certified Electrician
Recommended Breaker: Consult Certified Electrician
Engine
HP: 7.5
Pump
CFM: 25.3
CFM Rated @: 100 PSI
Pump Material: Solid Cast Iron
Max PSI: 175 PSI
Oil Sight Glass: Yes
Pump Type: Two-Stage
After Cooler: Yes
Pump Drive: Belt Drive
Oil Type: Oil Lubricated
Oil System: Splash Lubricated
Pump Low Oil Shut-off: Yes
Tank
Tank Size: 80 Gallons
Tank Outlet: 3/4 Inch
Tank Orientation: Vertical
Accessories
Pressure Gauge: Yes
Air Dryer: No
Overview
Weight: 537 Pounds
Certification: ASME
Product Length: 39 Inches
Product Width: 25 Inches
Product Height: 80 Inches
Power Type: Electric

In the Box

Guides & Accessories

Instructions

Product Manual

Spec Sheet
