Dannmar 12000 lb. Capacity 2 Post Lift D2 12C 5175312
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Product Overview:
Description

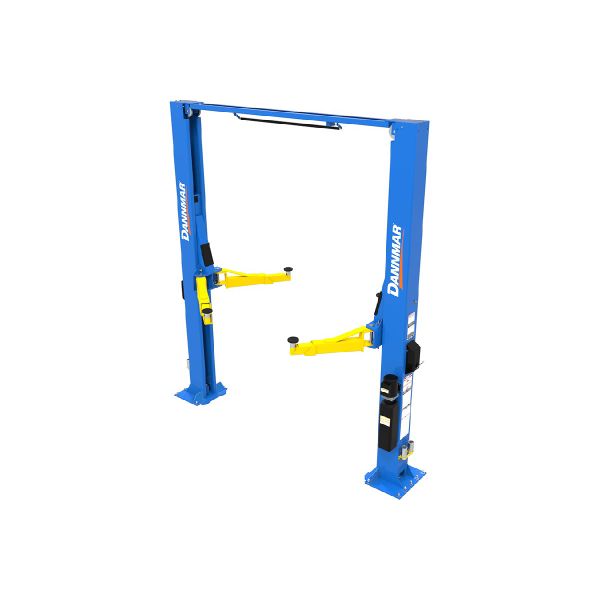

The D2-12C is Dannmar’s closed-top model, thus providing clear floor convenience. The closed-top/clear floor two-post lift allows uninterrupted floors so that you can roll floor jacks, toolboxes, and other equipment underneath the elevated vehicle without having to travel over and bang through a floor-mounted hydraulic line panel. This lift has a big 12,000 lb. lifting capacity. This lift routes the operating hydraulic lines up and across, 14 feet height hose routing above the floor.
Dannmar’s D2-12C is loaded with features to make your lift work better. With triple-telescoping arm sets, three-stage front and three-stage rear arms this Dannmar provides greater maximum reach with minimum retraction. This strong lift system will raise just about all passenger vehicles and many heavy-duty pickup trucks. The high-speed hydraulics, free-flow, high-pressure 3/8” hydraulic lines, a high-flow pump and integrated AC power-unit increase ascent and descent speeds. The safe and rugged D2-12C two-post lift features extended height columns for added overhead clearance, as well as an adjustable top beam to accommodate wide or narrow installation setups.
Features:
- Dual direct-drive hydraulic cylinders
- Heavy-duty 1/2” aircraft-quality equalizer cables
- Oversized cable sheave diameter reduces cable fatigue
- Durable, rubber lift pads with stackable adapters
- Dual-synchro equalization system for equal lifting
- Padded overhead safety shutoff bar - Extended height top-beam provides greater clearance
- Single-point safety release
- Oversized 53” tall carriage for superior strength
- Electric/hydraulic power system
- Oversized A36 steel base plates
- Self-lubricating Dura-glide UHMW polyethylene bearings
- Safety locks in each column spaced every 3”
- Automatic arm restraints
- 16-piece specialty adapter set includes four 6” stackable adapters, four 3” stackable adapters, four polyurethane contact pads and four frame cradle pads - Convenient storage is included for truck and van adapters
- Triple-telescoping arms provide increased range
Specifications
Style: | Symmetric |
Lifting Capacity: | 12,000 lbs. (5,443 kg) |
A - Lowered Height + Pad: | 4.25" (108 mm) |
B - Max. Lift Height (Top Lock): | 80" (2,032 mm) |
C - Max. Rise: | 69" (1,753 mm) |
D - Height Overall: | 168.75" (4,286 mm) |
E - Width Overall: | 155.25" (3,943 mm) |
F - Width Outside Columns: | 142.5" (3,620 mm) |
G - Width Inside Columns: | 119.5" (3,035 mm) |
H - Drive-Thru Clearance: | 105" (2,663 mm) |
I - Floor to Top Switch: | 162.75" (4,131 mm) |
J - Arm Reach: | 31.5" (800 mm) - 58" (1,473 mm) |
Max. Load per Arm: | 3,000 lbs. (1,361 kg) |
Time to Full Rise: | 55 seconds |
Noise: | 45 dB |
Motor: | 220 VAC / 60 Hz / 1 Ph |
Shipping Weight: | 2,618 lbs. (1,187.5 kgs) |
Shipping Dimensions: | 177" x 29" x 40" (4,495 mm x 736 mm x 1,016 mm) |
