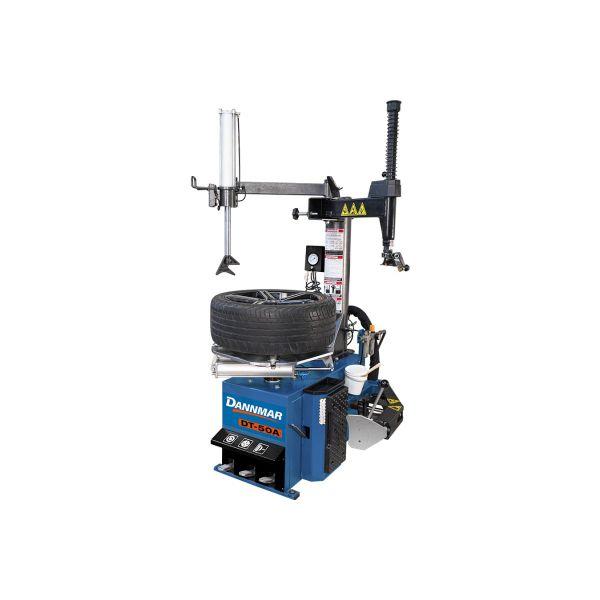

Dannmar Swing Arm Tire Changer With Assist TowerDT 50A 5140157
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Product Overview:
Description
Dannmar helps you increase your shop’s workflow with a well-designed and durable tire changer. This single-tower assist, swing-arm tire changer is equipped for ongoing wheel service and can perform well in busy areas. With its non-tilt-back style, it does not require extra space to operate through. This Dannmar machine allows your technicians to keep the workflow moving and your customer’s vehicles ready on time.
Dannmar’s DT-50A swing-arm, tire changer is equipped with a useful power-assist tower that tackles the challenges found when replacing lower-profile performance tires with stiffer sidewalls. And with its non-tilt back design, it can be installed flush against walls. The swing-arm on the DT-50A is one of this tire changer’s most useful features. The swing-arm design lets you load tires fast, and the steel clamps are perfect for passenger cars, daily commuters, spares and many trailer tires. The tire changer’s controls are conveniently mounted upfront and logically arranged for both speed and ease-of-use. Constructed to handle the needs of crazy busy shops with its sturdy body, rigid hexagonal vertical shaft and hardened-steel horizontal outrigger support arm that eliminates flex during tire service operations. This also reduces the risk of damaging modern allow wheels.
Features:
- Alloy steel mount and demount head
- Single-assist tower
- High Torque Electric Turntable
- Adjustable Internal Rim Clamping - Capacity - 12” – 26” (305 mm - 660 mm)
- Maintenance-free gearbox
- Aluminum pneumatic cylinders
- High-pressure polyurethane pneumatic tubing
- Enhanced bead Breaker Blade
- Turbo-Blast Bead Seater
- Inflation Gauge with Integrated Air Dump Valve
- Tool Tray/Storage
- Soap Bucket
- Enhanced Bead Breaker Blade
- Oiler/Lubricator
- Optional motorcycle clamps
- Air Regulator
- Inflation restraint
- Forged steel foot pedals
Specifications
Motor: | 110/220-VAC, 50-60 Hz, 1-Ph |
Drive System Type: | Electric / Air |
Tower Design: | Rigid Fixed / Swing Arm |
Power Assist Tower: | Single |
Bead Seating System: | Turbo Blast / Bead Seating |
Air Requirement: | 110-175 PSI (8-10 BAR) |
Wheel Clamping Method: | 4 Clamps - Internal / External |
Table Clamping System: | Dual Pneumatic Cylinders |
Bead Breaking System: | Pneumatic Blade |
Tower Design: | Fixed |
Internal Rim Clamping Capacity: | 14" – 26" (356 mm - 660 mm) |
External Rim Clamping Capacity: | 12" – 22" (305 mm - 559 mm) |
Turntable Rim Width Capacity: | 3" – 15" (76 mm – 381 mm) |
Bead Breaker Rim Width Capacity: | 3" – 14" (76 mm – 356 mm) |
Maximum Tire Diameter: | 47" (1,194 mm) |
Noise: | <70 dB |
Shipping Weight: | 702 lbs. (318.4 kgs) |
Shipping Dimensions: | 51" x 40" x 82" (1,295 mm x 1,016 mm x 2,082 mm) |
