Item # 55857 BRAND: Dynabrade

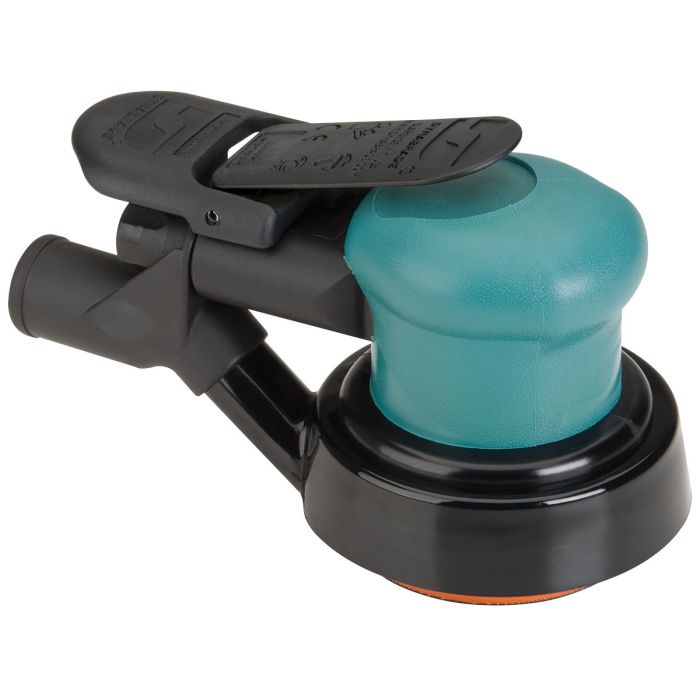

Dynabrade 3 In. Central Vacuum Dynorbital Spirit Random Orbital Sander 59114

3" Central Vacuum Dynorbital-Spirit Random Orbital Sander
3" Central Vacuum Dynorbital-Spirit Random Orbital Sander
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 19.26ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Reg. $199.99 Sale $179.99 Save $20.00
Loading...
Loading...
Save for Later
3" Central Vacuum Dynorbital-Spirit Random Orbital Sander
  • 90-Day Returns
  • Technical Support
Dynabrade 3 In. Central Vacuum Dynorbital Spirit Random Orbital Sander 59114

Description

59114 3" (76 mm) Dia. Central Vacuum Dynorbital-Spirit Random Orbital Sander
.25 hp, 12,000 RPM, 3/32" (2 mm) Dia. Orbit, Rear Exhaust

  • Includes low profile, premium urethane weight-mated sanding pad. Black lever identifies 3/32" (2.5 mm) dia. orbit, used for ultra-fine sanding.
  • Drop-In Motor available (sold separately) to reduce costly down-time associated with routine maintenance. More Power - True 12,000 RPM air motor. Floating rotor utilizes five blades, producing more usable power (.25 hp/186 W). High-strength, composite rotor has better lubricating qualities, allowing blades to last longer. Less air (14 SCFM/396 LPM) is used more efficiently to maintain maximum power.
  • Comfort Platform provides additional hand and wrist support, further enhancing operator comfort. Also offers increased protection against cold air exhaust. (NOTE: Comfort Platform is removable.) Order 59330 Comfort Platform (U.S. Patent No. D610,428) separately, to install on existing tools!
  • Throttle lever recesses into housing grip when depressed, eliminating pressure-point on operator's palm. Dynorbital-Spirit lever is made from composite material to insulate against cold air. Lever is color-coded to designate tool orbit. Easy maintenance and vacuum conversion. Muffler elements are easily changed for convenient maintenance. Low Sound Levels. Muffling system reduces exhaust sound levels.
  • Speed Control allows thumb-control regulating of tool speed. Lighter air-motor assembly, ideal for vertical and overhead sanding applications. Precision one-piece motor shaft and counterbalance. High-quality Double Row Pad Bearing, protected by unique V-Seal, improves bearing life and ensures reduced vibration. Perfectly-balanced, weight-mated sanding pad with one-piece hub design. Dynabrade premium urethane pads offer smoother operating performance and minimal vibration.

Specifications

hp: 0.25
Max. Air Flow [SCFM]: 14.0
Max. RPM: 12,000
Pad Face: Vinyl
Tool Spindle Thread: 5/16" - 24 Female
Exhaust Type: Rear
Hose I.D. [inches]: 1/4"
Vacuum Type: Vacuum
Width: 6.5
Length: 7.75
Height: 3.5
CE Certified: Yes
EAC Certified: Yes
Item Weight [pounds]: 1.43
Tool Style: Palm

Instructions

Current Manual (Parts Page) PD14.22R

Tune-Up Kit Page 96510

Specific Accessories PD14.22_SA

Special Tools for Repair PD14.22_SRT

Component Wear Percentages PD14.22_CWP

Disassembly/Assembly Instructions PD14.22_DAI

Additional Technical Document PD16.16

Previous Manual (Parts Page) #1 PD14.22

Previous Manual (Parts Page) #2 PD11.25

Previous Manual (Parts Page) #3 PD09.01_SN09B1000G

Previous Manual (Parts Page) #4 PD07.07

Previous Manual (Parts Page) #5 PD05.15T
