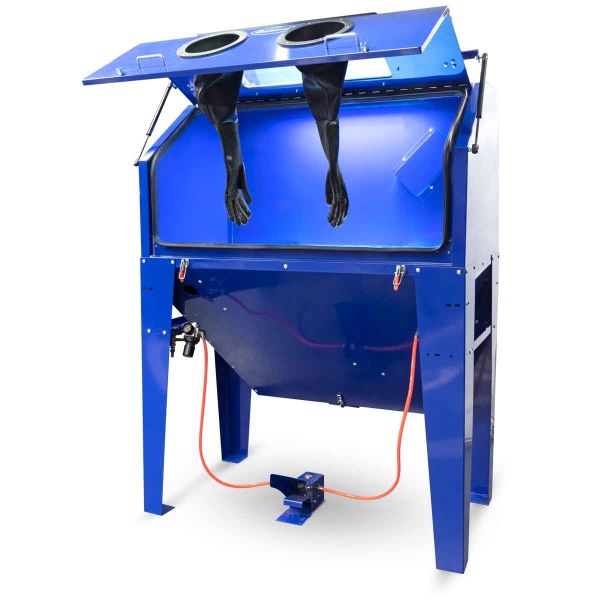

Eastwood B100 Abrasive Media Blast Cabinet with Dust Collector
Our biggest blast cabinet that we offer can handle anything you can throw at it
Our biggest blast cabinet that we offer can handle anything you can throw at it
Eastwood B100 Abrasive Media Blast Cabinet with Dust Collector is rated
out of
5 by
22.
Our biggest blast cabinet that we offer can handle anything you can throw at it
1 year Warranty Included
Add an Eastwood Service Plan for additional protection?
Learn More
The Eastwood Service Plan
Protect your purchase with comprehensive coverage
24/7 support
No deductibles, no additional fees
Parts & labor costs included
Transferable coverage and more
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description
The Eastwood B100 Blast Cabinet is the largest blast cabinet that we offer. It truly has the size of an industrial blast cabinet that will handle any job that you can fit into it. A large 343L work area that measures 48" x 24" x 24" will give you the room you need to blast full wheels, engine blocks, transfer cases and more. Plus a dust collector to improve visibility and performance.
- Clam Shell Front Opening Design
- Large Interior Dimensions
- Constructed Of Heavy Gauge Steel
- Durable Powder Coated Finish
- High-Intensity LED Work Lamp
- Flow-Through Ventilation Design
- High Capacity Vacuum Unit included
- Holds 220lbs of Parts
- Holds 150lbs of Media
- 12.1 Cubic Feet of Work Space
- Air Requirement: 12CFM @ 90 PSI
- Includes Dust Collector for Best Visibility When Blasting
The Eastwood Abrasive Media Blast Cabinet - B100 is constructed of heavy gauge steel with a quality powder coated finish for maximum durability and trouble-free service. It features a high-intensity dual-tube fluorescent work lamp for increased visibility and a baffled, flow-through ventilation design with an included integrated, high capacity vacuum unit, all in a compact, space saving configuration. The unique clam shell front opening design provides much greater ease and safety with a low lift-over height when blasting larger or heavier items.
Warranty
Specifications
| Includes (3) 6mm Nozzles - 1 Installed in Gun | |
| External Dimensions | 48-3/8"w x 35-1/2"d x 66-1/2"h |
| Internal Working Space | 45-3/4"w x 22-3/4"d x 22-3/4"h (12.1 cu. ft.) |
| Window Viewing Area | 22 inches x 10.5 inches |
| Air Requirement | 12CFM @ 90 PSI |
| Electrical Requirement (lamp) | Grounded 120 VAC, 60hz, 15 amp |
| Cabinet Material - 16 Gauge Panels, 14 Gauge Legs | |
| 100% Powder Coat Finish | |
| Overall Weight 275lbs | |
| Maximum Weight Capacity | 220lbs. [100 kgs.] |
| Maximum Media Capacity | 150lbs. |
| Dust Collector Included | |
Shipping & Handling
Ships via Truck Freight
In the Box
Contents
Contains One Complete Blast Cabinet with Dust Collector
COMPONENTS- (1) Blast Cabinet Assembly
- (4) Legs
- (2) Leg Side Braces
- (1) Light Fixture (installed under lid for shipping)
- (2) LED Tubes
- (1) Glass Lamp Protection Panel (installed under lid for shipping)
- (1) Pick-up Tube/Gun/Hose Assembly
- (1) Perforated Floor Panel
- (1) Regulator/Air Valve/Foot Pedal Assembly
- (1) Vacuum/Filter Assembly
- (5) Peel-Off Window Shields
- (5) Peel-Off Lamp Protection Panel Shields
- (3) Spare Nozzles
- (1) Roll Teflon Tape
Guides & Accessories
Instructions
Click here to download product instructions PDF
Safety Information
Please read and fully understand all instructions and warnings before using this product.
Reviews
Rated 5 out of
5
by
Terry from
B100 Blaster
I bought the B100 Blaster it took about half hour too hook up and it works great i would recommend it too anyone.
Date published: 2023-08-11
Rated 5 out of
5
by
Anonymous from
Awesome Blast Cabinet
This media blast cabinet arrived quickly and was well packaged. Set up was fast and easy. This is a quality unit with plenty of room to get the job done.
Date published: 2022-07-20
Rated 5 out of
5
by
Jp24 from
Well
Done
To me it has made my job easier and faster to the point that my job offers a better quality and a better show. Jp.
Date published: 2022-02-13
Rated 5 out of
5
by
ARC1 from
Awesome
I absolutely love this blast cabinet. little overpriced for what it is in my opinion but for the amount blasting I’ve done in this thing I’ve got my moneys worth. I’ve blasted 5” exhaust sections in this thing love the space.
Date published: 2021-09-17
Rated 5 out of
5
by
Rico1974 from
Well built cabinet and very spacious.
Very nice blast cabinet. Thought I might have to replace the gun but it turned out to work as good as my skat blast gun so far. The only complaint I have is that the supplied ball valve and associated fittings leaked badly even with 8 wraps of Teflon tape. No biggie, went to Lowe’s and bought new ball valve and 3/8-1/4” bushing and fixed the problem for $12. Really nice cabinet, if you’re in the fence don’t hesitate to buy this.
Date published: 2021-09-01
Rated 5 out of
5
by
Stephen Houston TX from
Best Blasting Cabinet
What a great design and function. Had cheaper units in the past but this one is well worth the money.
Date published: 2021-08-07
Questions & Answers
Are these gloves replaceable? If so, which ones does it take?
Yes, the gloves are replaceable. The item number for the replacement gloves is 20070.
Date published: 2025-02-13

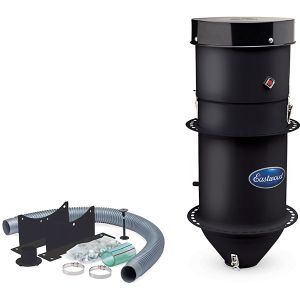

What is the difference between the Dust collector that is included and the one that is a recommended upgrade? the Eastwood Dust Collection System for Blast Cabinets do both of them recover media?
UPGRADE Specifications
Motor 120 VAC, 60Hz, 12 amp double insulated motor
Capacity 1.75 gallon canister capacity
Canister Construction Steel
Canister Color Black Powdercoat
Motor Type Double Insulated
Motor Voltage 120 Vac, 60 Hz
Motor Operating Current 12 Amps
Canister Color Black
Canister Mounting Cabinet or Wall (hoses included for both options)
Decibel Rating 83 decibels @ 1 meter
Filtration 8 microns
CFM 127
Inlet Diameter 2 inches
This is a professional quality Dust Collection system that is designed for use with the 98019, 20557 and 20027 Eastwood Blast Cabinets. This system is also universal in nature and can be mounted to the rear of other brand cabinets or it can be mounted to the wall near other brand cabinets.
Date published: 2024-10-29
When back in stock how does this item ship freight? Or to your door I see some items are shipped freight and won't go down your driveway and others too your door
Please contact our customer solutions team for specifics on shipping and quotes: 800-343-9353 or help@eastwood.com
Date published: 2024-10-18
I noticed the cabinet comes with a 3/8” ball valve for the regulator but steps down to a 1/4” coupler. Is the 1/4” coupler sufficient to operate the blast cabinet? I was under the impression the cabinet needs as much air as possible
We provide for the best possible outcome utilizing the right components with this cabinet.
Date published: 2024-10-18
Can You Fit A 20" Rim In This Cabinet ?
TES,
A large 343L work area that measures 48" x 24" x 24" will give you the room you need to blast full wheels, engine blocks, transfer cases and more.
Date published: 2024-10-18
What is my monthly payment
If you check out with Affirm it should be able to show you, if you are unsure please contact customer solutions help@eastwood.com or 800-343-9353.
Date published: 2024-10-18
Will this cabinet separate media to be reused?
By itself no- but you can purchase our Dust Collection system separate for this.
Date published: 2024-10-18
Is the collection system a siphon feed or metering valve system
This unit is a siphon feed system.
Date published: 2024-10-18
