Item # 69479 BRAND: Gedore

Gedore Hydr. Hand Pump KL-0215-35 M25

HYDR. HAND PUMP
HYDR. HAND PUMP
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 35.6ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$569.33
Loading...
Loading...
Save for Later
HYDR. HAND PUMP

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
Gedore Hydr. Hand Pump KL-0215-35 M25

Product Overview:

Description

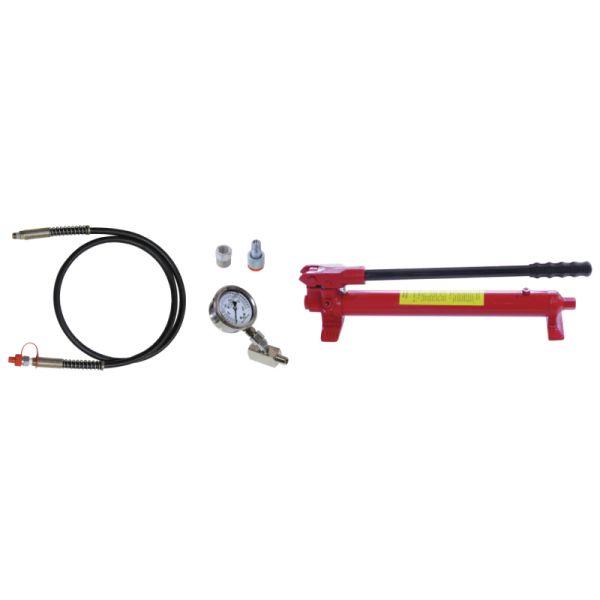

The hydraulic hand pump can be used as a drive for the hydraulic cylinders KL-0040-2500 or KL-0040-1700. The ton scale allows to check the hydraulic pressure and the required power during the work

Specifications

Key Features

  • Number of Stages: 2
  • Max. Pressure 1st Stage: 200 psi
  • Max. Pressure 2nd Stage: 10,000 psi
  • Max. Handle Effort: 34 lb
  • Displacement per Stroke 1st Stage: 0.2 cu in

Dimensions

Port Size 3/8 in NPT
Overall Length 29.5 in
Overall Width 6.3 in
Overall Height 6.3 in
Connection Size 3/8 in

Details

Item Hydraulic Hand Pump
Number of Stages 2
Max. Pressure 1st Stage 200 psi
Max. Pressure 2nd Stage 10,000 psi
Max. Handle Effort 34 lb
Displacement per Stroke 1st Stage 0.2 cu in
Displacement per Stroke 2nd Stage 0.2 cu in
Reservoir Capacity 33 cu in
Handle Material Plastic
Pump Material Steel
Oil Included Yes
Reservoir Material Steel
Includes Oil
Housing Material Steel
Handle Effort - Maximum 34 lb
Pressure 1st Stage - Maximum 200 psi
Pressure 2nd Stage - Maximum 10,000 psi
Connection Type NPT
