Item # 22398 BRAND: Holley

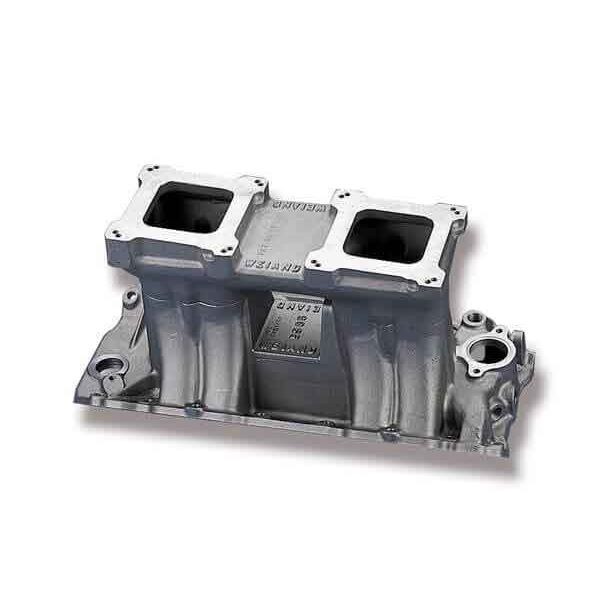

GM Big Block Weiand Hi-Ram Intake 1985WND

Hi-Ram Intake Manifold 396ci-502ci with Performance Rectangular Port Heads
Hi-Ram Intake Manifold 396ci-502ci with Performance Rectangular Port Heads
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 64.29ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$521.95
Loading...
Out Of Stock. Due back February 28
Save for Later
Hi-Ram Intake Manifold 396ci-502ci with Performance Rectangular Port Heads
  • 90-Day Returns
  • Technical Support
GM Big Block Weiand Hi-Ram Intake 1985WND

Product Overview:

Description

HI-RAM SERIES: These tunnel ram manifolds are used primarily in drag racing, tractor/truck pulls and performance marine applications where high RPM performance is required. The effective RPM range is between 2,800 to 8,000 RPM. The WEIAND Hi-Ram, with it's patented D-shaped port runners and large plenum chamber, provides optimum velocity of the air/fuel mixture to the cylinder head intake ports. For maximum performance in a naturally aspirated competition application, the WEIAND Hi-Ram is the manifold of choice! This manifold is designed to be used with performance oval port heads.

This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling.

Weiand Nostalgia series intakes are proudly cast and machined in the USA.

We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand!

Features:

  • 2 x 4 carburetor top
  • Square flange carburetor mounting
  • 2500-7800 RPM power band
  • Special D-shaped port runner design
  • Large volume plenum
  • Power band: 2500-7800 RPM
  • Height: Front 10.12", Rear 10.93"
  • Port Size: 2.34” height 1.55" width
  • Carb Flange Center-To Center 9-11/16"
  • Weiand Nostalgia Series Intake Manifold

Warranty

1 Year Manufacturers Warranty

Specifications

Brand: Weiand<br> Construction: Cast<br> Emission Code: 4<br> Engine: Chevy Big Block V8<br> Finish: Satin<br> Front Height: 10.12 inch<br> Fuel System Type: Carb<br> Manifold Type: Hi-Ram<br> Product Type: Intake Manifold<br> Rear Height: 10.93 inch<br> RPM Power Band: 2800-8000<br> Warranty: Limited 90 Day<br> Part Number: 1985WND<br> <b>EMMISIONS</b><br><br> <p>This part is legal for sale or use on Racing Use Only Vehicles</p><br /> The following vehicles are considered Racing Use Only Vehicles: <br /><br /> • Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street<br /><br /> <b><u>WARNING: It is against the law to install this part on an Emissions Controlled Vehicle</u></b><br /><br />

In the Box

Contents

(1) GM Big Block Weiand Hi-Ram Intake 1985WND

Guides & Accessories

Instructions

<p><a href="https://documents.holley.com/w511rev1.pdf" target="_blank"><i><b>Bolt Notice for Part# 1985</b></i></a></p><br /> <p><a href="https://documents.holley.com/w537rev.pdf" target="_blank"><i><b>General Information for Part# 1985</b></i></a></p><br /> <p><a href="https://documents.holley.com/199r11127.pdf" target="_blank"><i><b>Product Flyer for Part# 1985</b></i></a></p><br /> ***GM HEI will not clear, Use Side-by-Side 2 x 4 Tunnel Ram Carburetor Linkage Kit # 4022. When using carburetors with vaccum operated secondaries, use Diaphragm Housing Covers # 20-28, for more even and balanced secondary operation.Will fit tall blocks with use of Weiand P/N 8204 manifold spacer plate kit.
