Item # 21286 BRAND: Holley

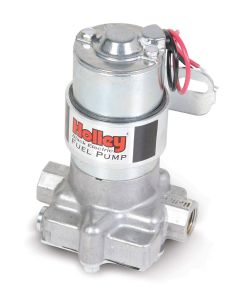

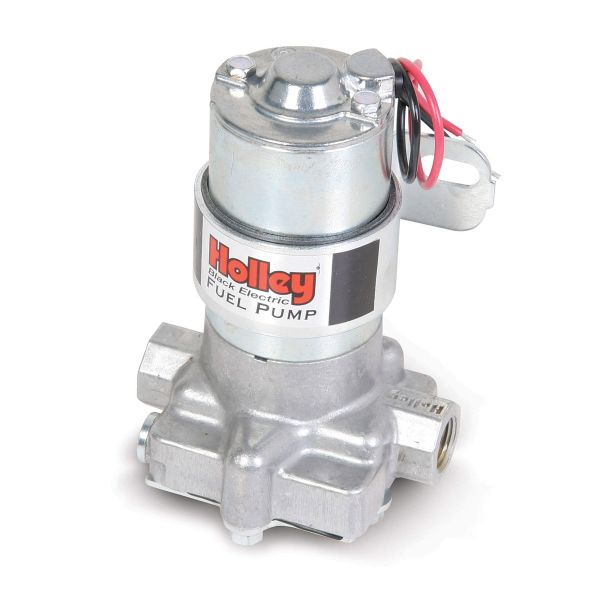

Holley 140 GPH Black Electric Fuel Pump 12-815-1

Street/Strip Carbureted Applications Compatible with Gasoline, Alcohol or Methanol
Street/Strip Carbureted Applications Compatible with Gasoline, Alcohol or Methanol
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 74.76ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$228.95
Loading...
Out Of Stock. Due back December 15
Save for Later
Street/Strip Carbureted Applications Compatible with Gasoline, Alcohol or Methanol
  • 90-Day Returns
  • Technical Support
Holley 140 GPH Black Electric Fuel Pump 12-815-1

Description

The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's. Their time proven rotor/vane design is known to get the job done in an affordable package.

Features:

  • Tumble polished billet look
  • Lower housing casting designed for enhanced fuel flow
  • Improved design for street/strip applications
  • Distinctive “Black” logo
  • Compatible with alcohol or methanol fuels
  • Not designed for use on aircraft of any type.
  • Flows 140 GPH (free flow)
  • Flows 120 GPH at 9 psi
  • Maximum pressure is 14 psi
  • 3/8” NPT inlet and outlet ports
  • Fuel pressure regulator is required (recommend Holley P/N 12-704 for gasoline & P/N 12-707 for alcohol)
  • Motor draws only 4 amps current
  • Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
  • Provides constant fuel flow with no pulsation
  • Has externally accessible pressure relief valve (max 14 psi)
  • Rotor/vane pump design is more tolerant of contaminated fuels
  • Weighs only 3 lbs
  • Includes mounting bracket
  • Repair kits are readily available
  • Can be serviced from the pump end
  • Use of safety shut-off switch, P/N 12-810, strongly recommended
  • Not designed or recommended for use with fuel injection systems

Specifications

Application: Universal
Bracket Color: Silver
Brand: Holley
Emission Code: 5
Free Flow GPH: 140
Free Flow LPH: 530
Fuel System: Carbureted
Fuel Type: Gasoline, Methanol
Inlet Size: 3/8 inch NPT
Material: Aluminum
Motor Finish: Silver
Outlet Size: 3/8 inch NPT
Product Type: Fuel Pump
Pump Body Color: Silver
Part Number: 12-815-1
EMMISIONS

This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.


Shipping

Ships Via Fedex

Aerosol Details

N/A

Consumables

N/A

Instructions

Fuel Pumps Technical Information

Instructions for Part# 12-815-1

Fuel Systems Selection Chart


*** Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. Relay kit P/N 12-753 recommended. These should be used with 12 volt systems only.
