Item # 22872 BRAND: Holley

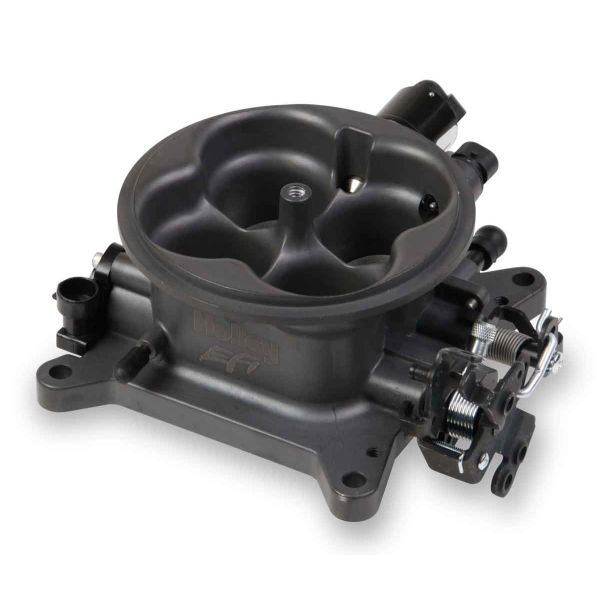

Holley Universal 4BBL 1000CFM 4150 Flange Throttle Body - Ha

Universal 4BBL 1000CFM 4150 Flange Throttle Body - Hard Core Gray
Universal 4BBL 1000CFM 4150 Flange Throttle Body - Hard Core Gray
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 64.31ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$559.95
Loading...
Out Of Stock. Due back November 3
Save for Later
Universal 4BBL 1000CFM 4150 Flange Throttle Body - Hard Core Gray

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Holley Universal 4BBL 1000CFM 4150 Flange Throttle Body - Ha

Product Overview:

Description

Holley's new 1000 CFM Throttle Body shares the same air entry area design that powers every NASCAR Sprint Cup Series™ car! The throttle body features integrated throttle position, idle air control and intake air temperature sensors, Ford and GM transmission kick down levers as well as all necessary vacuum ports.

Features:

  • Standard square bore mounting pattern for installation on many intake manifolds
  • Flows 1000 CFM to handle high horsepower engines
  • Exclusive CFD computer modeled air entry area delivers maximum velocity and accelerated air speed
  • Integrated TPS, IAC, and Air Temperature Sensor
  • Hi Flow IAC passages for large cubic inch engines for idle stability
  • Ford Transmission kick down Lever for use with Ford automatic transmissions
  • Integrated GM 700R4 transmission kick down location no adapters needed
  • All necessary vacuum ports (1) timed spark, (2) 3/8" and (2) 3/16" full manifold vacuum ports
  • 1.75" throttle plates mounted to PTFE coated throttle shafts for high flow and a smooth feel
  • High quality die cast aluminum for strength and weight reduction
  • Hard Core Gray finish

Warranty

1 Year Manufacturers Warranty

Specifications

Barrels: 4<br> Brand: Holley EFI<br> CFM: 1000<br> Emission Code: 3<br> Product Type: 1000 cfm throttle body<br> Throttle Bore: 1.750 inch<br> Part Number: 112-587<br> <b>EMMISIONS</b><br><br> <p>This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles.</p><br /> <p>The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:</p><br /> • 1965 and older U.S. manufactured California Certified vehicles<br /> • 1967 and older U.S. manufactured Federally Certified vehicles<br /> • 1967 and older Foreign manufactured vehicle<br /><br /> The following vehicles are considered Racing Use Only Vehicles: <br /><br /> • Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street<br /><br /> <b><u>WARNING: It is against the law to install this part on an Emissions Controlled Vehicle</u></b><br /><br /> The following vehicles are considered Emissions Controlled Vehicles: <br /><br /> • 1966 and newer U.S. manufactured California Certified vehicles<br /> • 1968 and newer U.S. manufactured Federally Certified vehicles<br /> • 1968 and newer Foreign manufactured vehicle

In the Box

Contents

(1) Holley Universal 4BBL 1000CFM 4150 Flange Throttle Body 112-587

Guides & Accessories

Instructions

<p><a href="https://documents.holley.com/199r10706rev.pdf" target="_blank"><i><b>Instructions for Part# 112-587</b></i></a></p><br /> ***This throttle body is an air valve only (no injectors).

Reviews

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 3.39ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

Questions & Answers

Would this system install on 74 Bronco 302 (2 barrel)?

Asked by: Brad
This is just a throttle body, not a complete system. You would be better off using EW22777:https://www.eastwood.com/holley-sniper-efi-2300-self-tuning-master-kit-black-ceramic-finish-550-850k.html. This would be a great kit as it will replace the 2 barrel carb you have.
Answered by: Kelly H
Date published: 2022-12-11
