Item # 59453 BRAND: MaxJax

MaxJax 6000 Lb. MaxJax Lift M6K 5175331

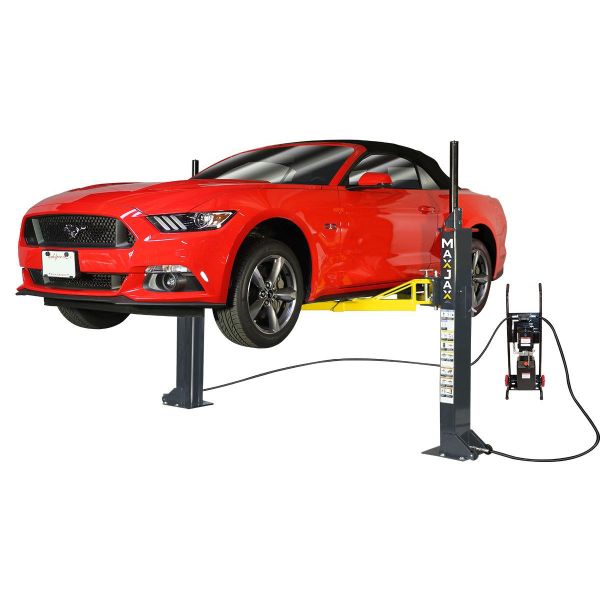

MaxJax® M6K Portable Two-Post Garage Lift
MaxJax® M6K Portable Two-Post Garage Lift
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 15.82ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$3,770.00
Loading...
Loading...
Save for Later
MaxJax® M6K Portable Two-Post Garage Lift
  • 90-Day Returns
  • Technical Support
MaxJax 6000 Lb. MaxJax Lift M6K 5175331

Description

For convenience, portability and compact storage, nothing beats the patented MaxJax® portable car lift. Thanks to its unique portable two-post design, the MaxJax offers greater versatility and serviceability when compared to traditional mid-rise or low-rise garage lifting systems.

Safety Features from the Ground Up

  • No one in the industry has a more sophisticated and comprehensive research and quality control program than MaxJax, and our thousands of customers worldwide prove it.
  • Low-pressure HVLP Direct-Drive cylinders eliminate the need for lifting chains or screw mechanisms most commonly found on other lift designs.
  • Hydraulic cylinders feature integrated velocity-fuse safety valves.
  • A cast iron gear flow divider provides precisely equalized lifting for uniform division of hydraulic power.
  • Rugged safety lock bars are capable of holding three-times the rated lifting capacity.
  • Arm restraints automatically engage each time the lift is raised.
  • Detailed installation, maintenance and safety instructions accompany each MaxJax car lift.
  • MaxJax encourages all owners to know their equipment and to follow good safety practices when using any of our products. Your MaxJax car lift equipment has been designed and built with your safety in mind, but the ultimate responsibility for safe operation is with you, the operator.

MaxJax is protected by one or more patents or claims of patents in the U.S. and elsewhere. This is provided to satisfy the virtual patent marking provisions of various jurisdictions, including the virtual patent marking provisions of the America Invents Act, as codified in 35 U.S.C. § 287(a).

PATENT NO. US 8.256.577 B2 and PATENT NO. US 9.150.395 B2

Benefits of the MaxJax

It's the features you get that set the MaxJax apart from the rest. Every MaxJax unit is loaded with the right features that make it the best choice when looking for a new car lift. Read through the long list of features this car lift has to offer and you'll easily come to the conclusion that the MaxJax is no ordinary garage lift.

Clear undercar access

No other low-rise or mid-rise lift system provides more under-car clearance and unobstructed floor space than the MaxJax lifting system. Now you can easily access engine undersides, transmissions, drive-shafts, starters, differentials or anything else requiring under-car access. MaxJax two-post lift portable columns

Portability

A two-post car lift with built-in wheels that allows you to use the lift when you need it, then conveniently store it out of the way when not in use keeping your garage and vehicle lanes clutter-free.

Stow to go in less than 15-minutes

Internally threaded recessed drop-in anchors and quick-connect/disconnect hydraulic couplers provide for fast and simple set-up. NOTICE: Before drilling into post-tension garage floors, always consult a building engineer for determining cable locations and where to avoid drilling. MaxJax two-post lift flow divider

Works like magic

A cast iron gear flow divider is the heart of the MaxJax® system, providing precisely equalized lifting. The specially designed flow divider/combiner is a positive-displacement fluid control device with precise flow division of hydraulic power from one column to the other even if load balance pressures change.

Mobile power unit cart

Our standard mobile power unit cart is small enough to be stored out of the way and features a storage area for the hydraulic hoses. The hydraulic power unit uses a single-phase motor that requires 110-volts AC and a 23 amp breaker. The industrial grade power cord is 6-Ft. long. A simple push-button switch raises the lift and a push lever controls the lowering. Simple quick-disconnect hoses can be positioned easily for single or dual column operation.

Adjustable lifting ar

Specifications

Lifting Capacity: 6,000 lbs. (2,722 kg)
Max Load Per Arm: 1,500 lbs. (680 kg)
Height Overall: 89.5" (2,273 mm)
Height of Column: 64" (1,626 mm)
Min. Pad Height: 4.5" (114 mm)
Max Lift Height (Pad Only): 47.5" (1,207 mm)
Max Lift Height (With 3" Adapter): 50.5" (1,283 mm)
Arm Reach (Min - Max): 26" - 40" (660 mm - 1,016 mm)
Typical Width (Outside of Base Plate): 105" - 135" (2,667 mm - 3,429 mm)
Drive-thru clearance: 74" - 104" (1,880 mm - 2,642 mm)
Locking Positions: 7 (every 3")
Motor: 110 VAC / 50-60 Hz. / 1 Ph. (23A Breaker)
Time of full Rise: 45-seconds
Individual Column Weight: 300 lbs. (136 kg)
Shipping Weight (Standard Model): 980 lbs. (444 kg)
Shipping Dimensions (Standard Model): 68" x 39" x 35" (1,727 mm x 990.6 mm x 889 mm)
